Detecto APEX Series User Manual

3300-0188-0M Rev L y apex Digital Scale Owner’s 32
PARTS IDENTIFICATION

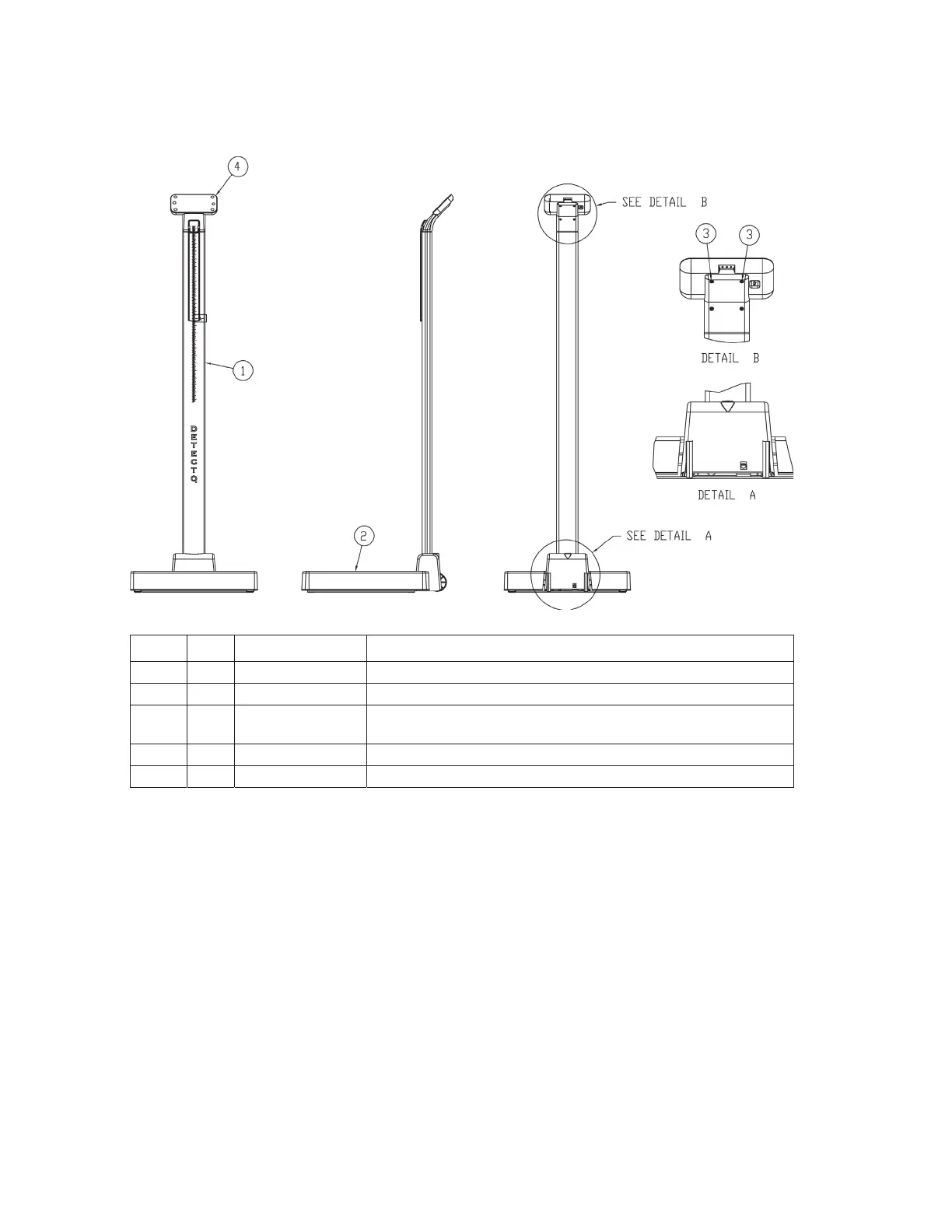

APEX (with Inline Height Rod)
FINAL ASSEMBLY
It
em Qty. Part Number Description
1 1 3300-0142-0A SUB-ASSY, APEX COLUMN, MHR
2 1
3300-0145-0A
SUB-ASSY, APEX BASE
3 2 6021-1293
SCW FLAT-HEAD THREAD CUTTING TYPE 25,
#4-24 X 1/4, PHIL. DR. Z-PLATE
4 1 3300-0153-0A
SUB-ASSY, DISPLAY, APEX
¾
1 6800-1045 OPTIONAL AC ADAPTER 100-240VAC/12VDC @ 1 AMP
¾ NOT SHOWN
