Detecto APEX Series User Manual

3300-0188-0M Rev L y apex Digital Scale Owner’s 37

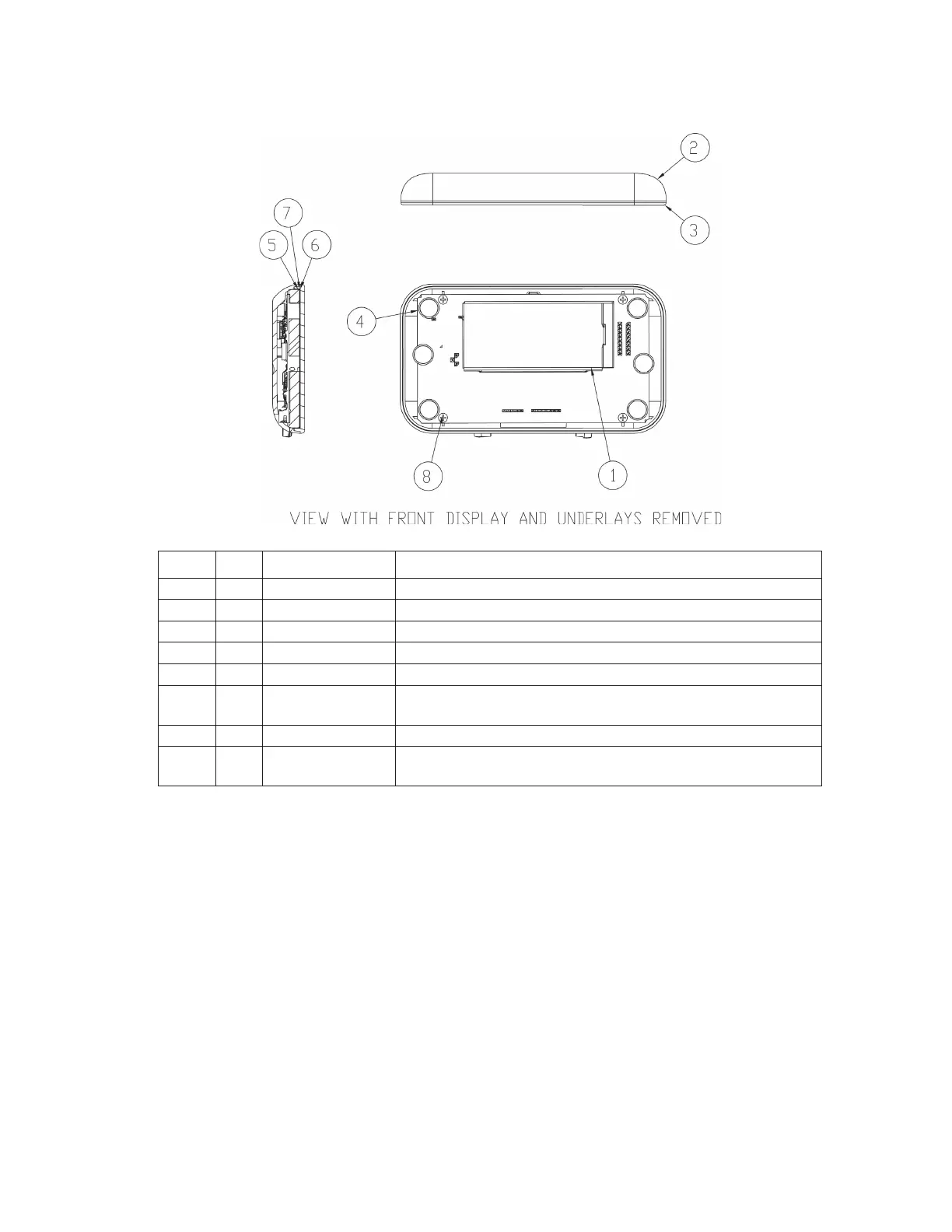

PARTS IDENTIFICATION
DISPLAY SUB-ASSEMBLY
It
em Qty. Part Number Description
1 1 3300-0042-0A PCB ASS’Y 755 CONTROLLER/DISPLAY
2 1 3300-0050-08 DISPLAY ENCLOSURE
3 1 3300-0382-0A DISPLAY FRONT, APEX, WITH IMAGE
4 6 3300-0072-08 APEX BUTTONS
5 1 3300-0089-08 UNDERLAY FOAM, APEX
61
3300-0150-08
3300-0149-08
UNDERLAY, APEX
UNDERLAY, APEX-SH
7 1 3300-0154-08 UNDERLAY BACKING, APEX
8 4 6021-1286
SCW PAN-HEAD THREAD CUTTINT TYPE 25, #4X1/4,
PHIL. DR. Z-PLATE
