3300-0188-0M Rev L y apex Digital Scale Owner’s 34

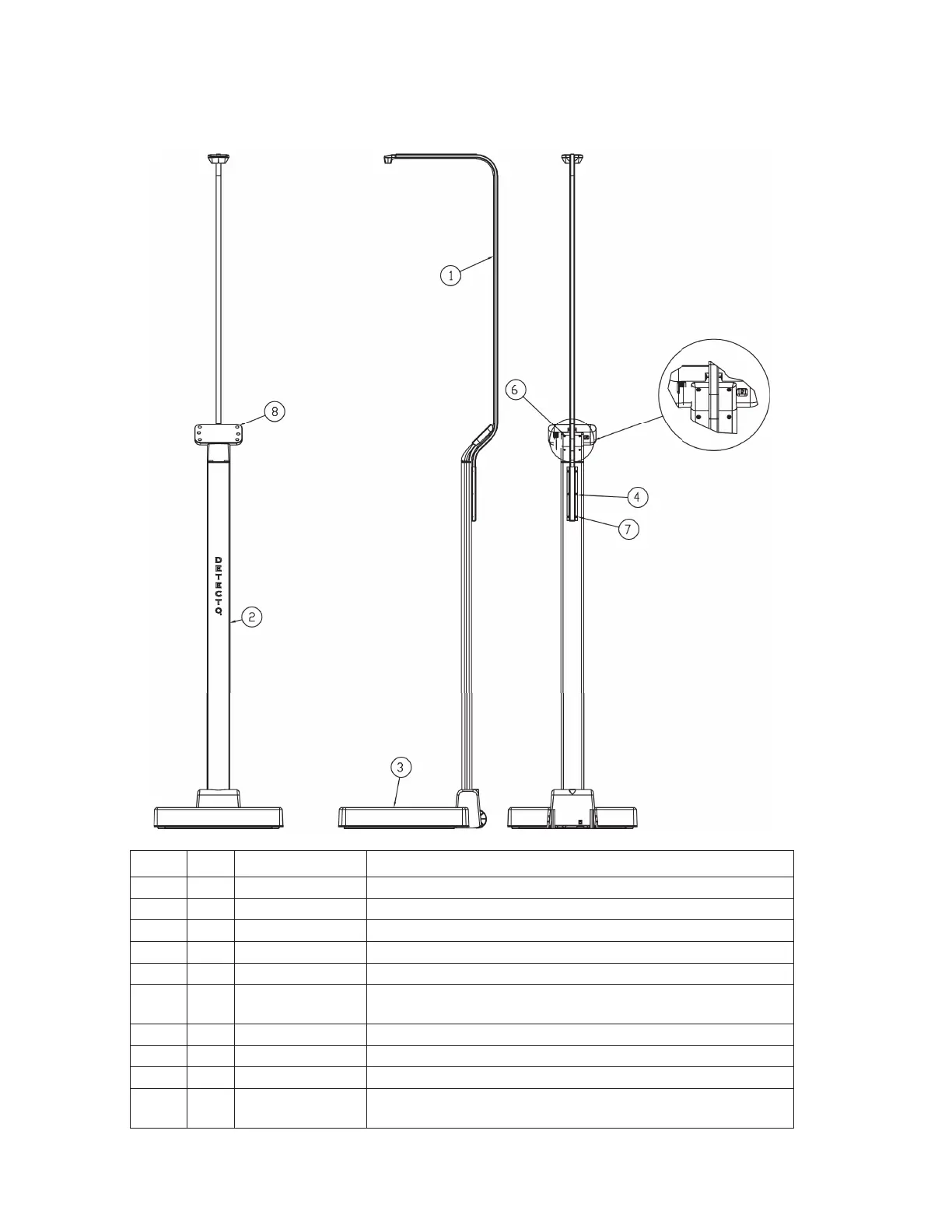

PARTS IDENTIFICATION
APEX-SH (with sonar height rod)
FINAL ASSEMBLY
Item Qty. Part Number Description
1 1 3300-0140-0A SUB-ASSY, SONAR HR
2 1 3300-0143-0A SUB-ASSY, APEX COLUMN, SONAR
3 1
3300-0145-0A
SUB-ASSY, APEX BASE
4 1 3300-0265-08
SONAR BRACKET
5 1 6013-0049
NUT 1/4-20 HEX JAM
6 2 6021-1293
SCW FLAT-HEAD THREAD CUTTING TYPE 25,
#4-24 X 1/4, PHIL. DR. Z-PLATE
7 6 6021-6017
SCW ROUND-HEAD BLUNT SS. SHEET METAL #6 X .25
8 1 3300-0152-0A
SUB-ASSY, DISPLAY, APEX-SH
¾
1 6800-1045 OPTIONAL AC ADAPTER 100-240VAC/12VDC @ 1 AMP
¾
1 6800-1047
OPTIONAL AC ADAPTER 100-240VAC/12VDC @ 1 AMP
MULTI PIN INPUT
¾ NOT SHOWN
