3300-0188-0M Rev L y apex Digital Scale Owner’s 6
APEX-SH (with Sonar Height Rod) ASSEMBLY
TOOLS REQUIRED:
3/16” Allen wrench

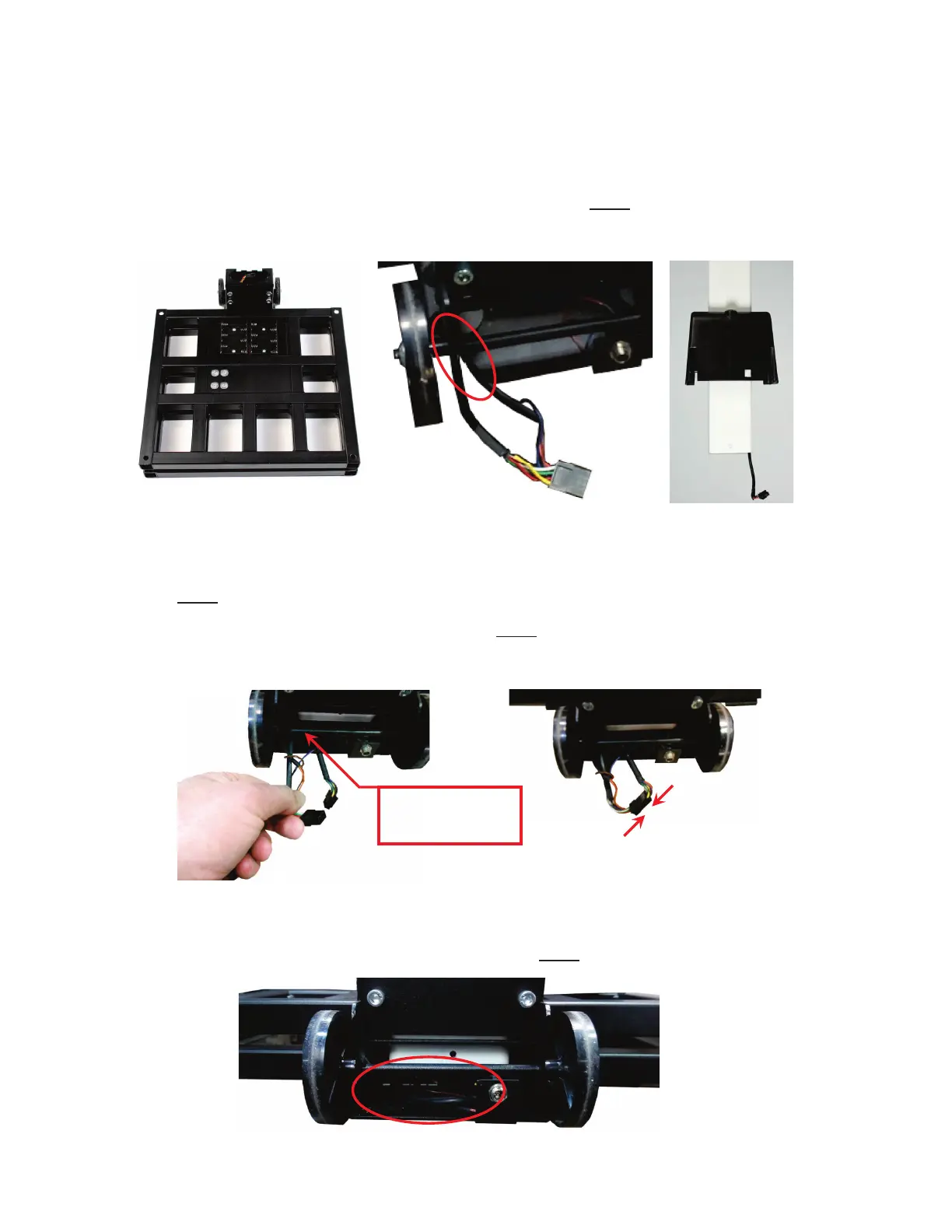

1. Place the scale base on a level floor.
2. Locate the scale base cable and pull it out of the base and under the wheel’s axle.
3. Install the column cover onto the column.
Step 1 Step 2 Step 3
4.
Position the column over the opening in the scale base and then insert the column
into
the scale base making sure the cable from the column goes out of the scale base and
und
er the axle for the wheels.
5. With both cable coming out of the scale base under the axle, align the wire connector
from the column cable with the wire connector from the scale base cable and then plug
the
m together.
Step 4 Step 5
6.
Making sure the column is completely down in the scale base and against the back
plate, tuck the connected cables into the scale base under the axle.
Step 6
Both cables must
be under the axle!
To Next Page
