3300-0188-0M Rev L y apex Digital Scale Owner’s 7

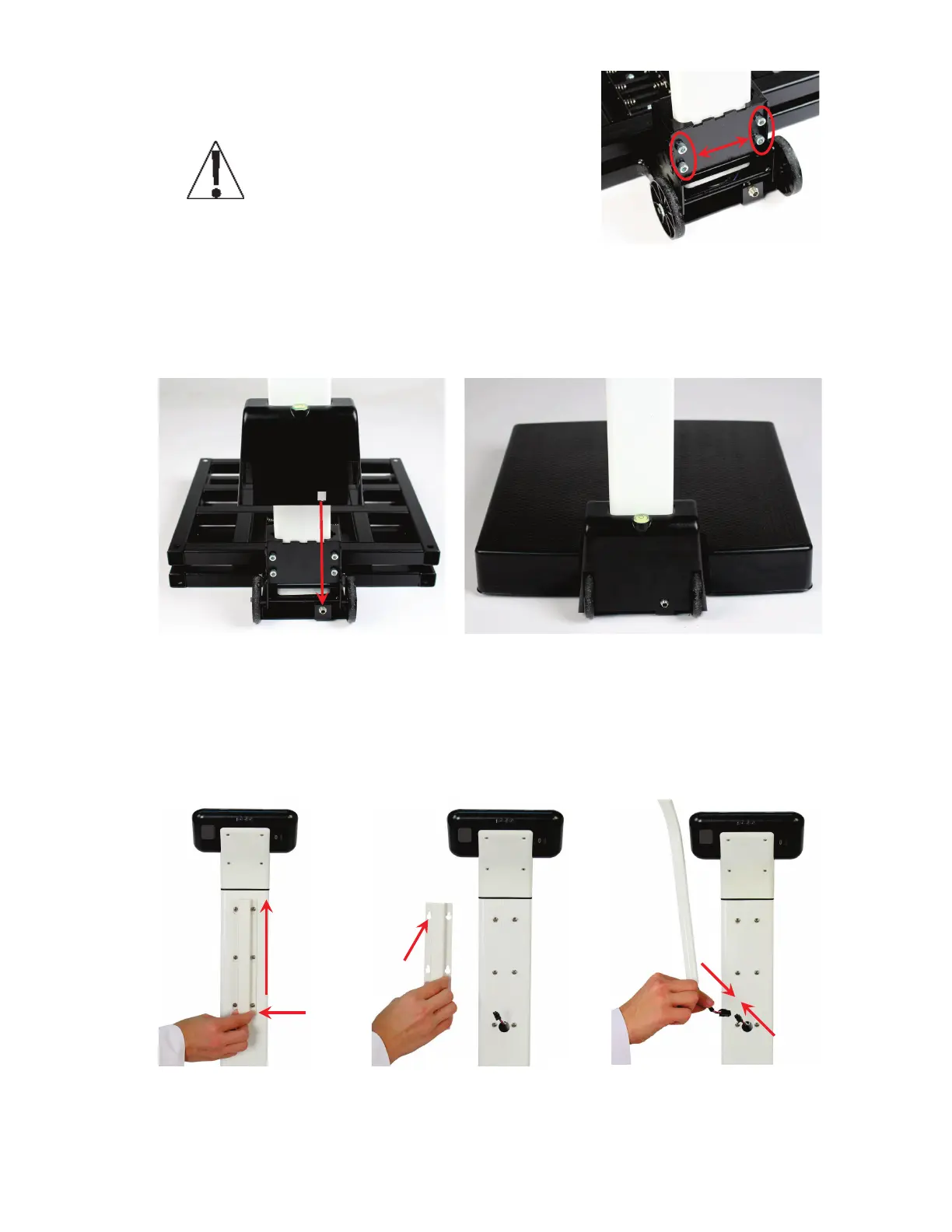

7. Using the 3/16” Allen wrench, evenly tighten the (4)
Allen head screws on the back of the scale base to
secure column to scale base.
NOTE: The nuts on the front of the column
opening in the scale base may turn as you are
tightening the Allen head screws.
This is normal. DO NOT use a wrench or other
tool to hold the nut to keep it from turning!
Step 7
8. Slide the column cover down onto the base. Note that you may have to pull the cover
out slightly to clear the AC power jack.
9. Place the scale base cover on the scale base and press down on both sides of the
cover. Note that a clicking sound will occur when the cover is snapped in place.
Step 8 Step 9
10.
Remove the sonar bracket by pushing up from the bottom of the bracket (see Step 10a)
until the screws are aligned with the large end of the slotted holes (see Step 10b) in th
e
br
acket and pull it away from the column. Set the sonar bracket aside.
11. Align the wire connector from the end of Sonar tube with the wire connector from t
he
back o
f column and plug together.
Step 10a Step 10b Step 11
