12. Place the bracket over the sonar tube making sure the tube is completely down in the
bracket.
13. Next, insert the cable and connector into the hole on the back of the column.
14. Aligning the large end of the slotted holes in the bracket with the screws in the column
,
(
see Step 12 and Step 13) place the sonar tube on the back of the column and pull
down to secure the sonar bracket to the column.

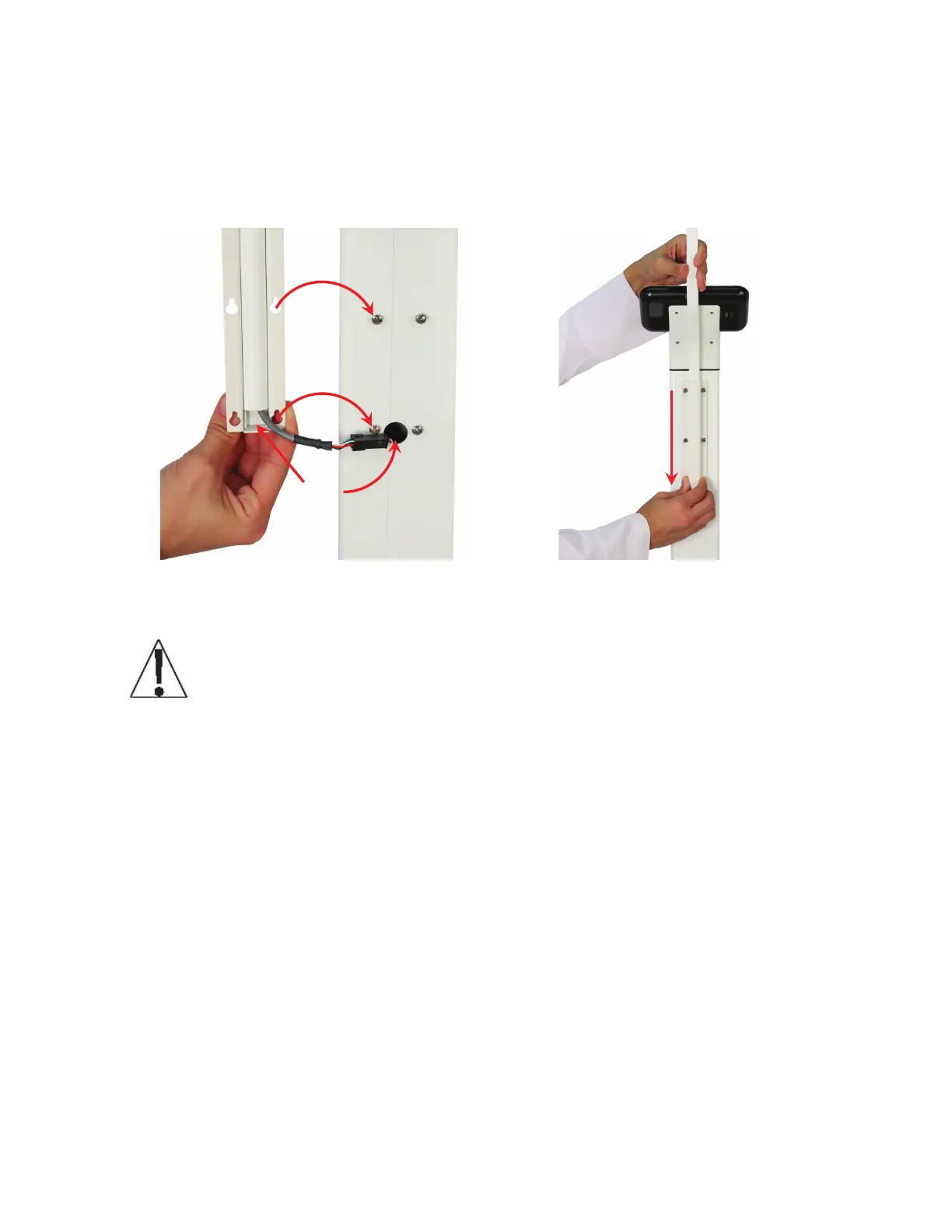

Step 12 and Step 13 Step 14
15.
The scale is now ready for operation.
NOTE: For instructions on powering the scale using the AC power adapter
(if included) or for instructions on how to install batteries, refer to the
INTERCONNECTIONS and BATTERIES sections of this manual.
