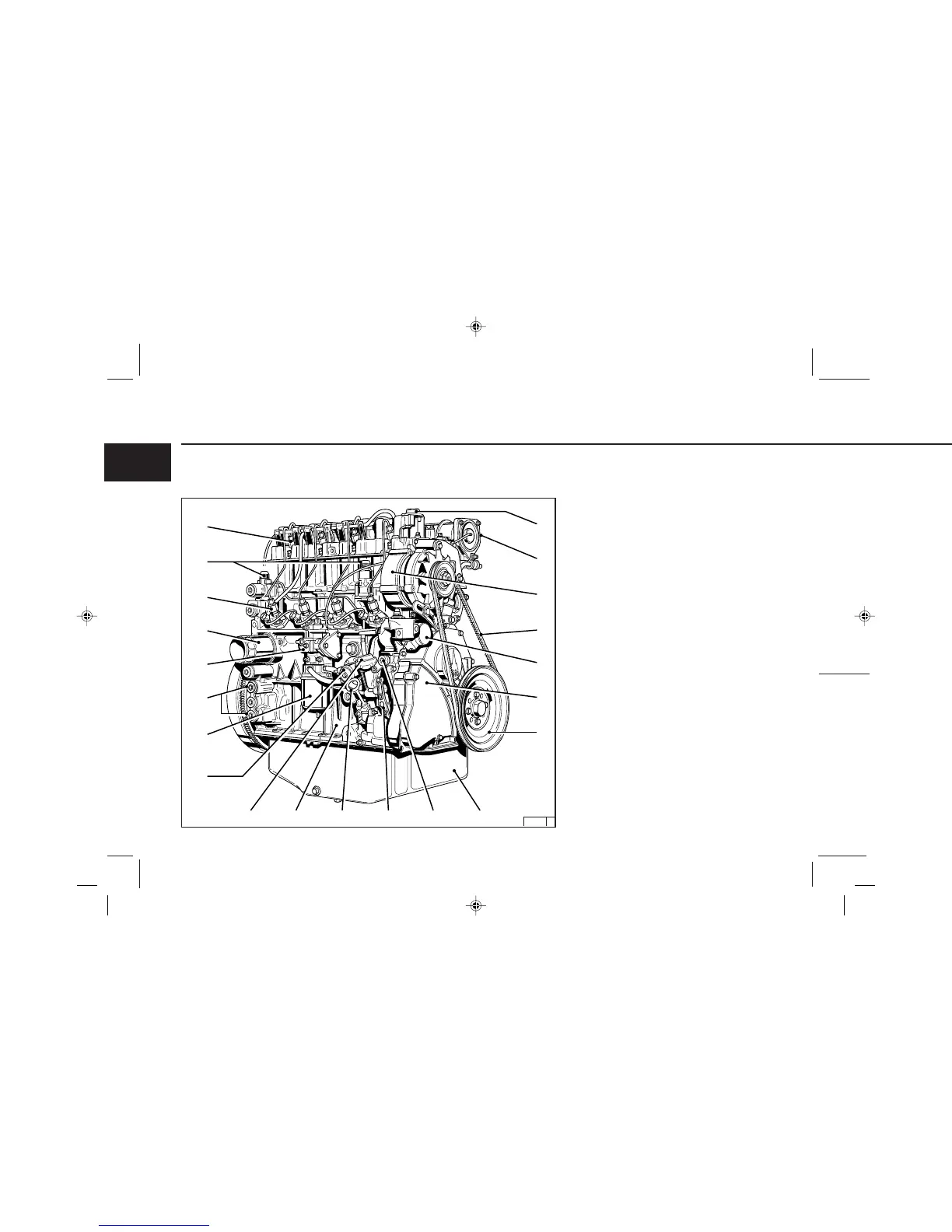

Engine Description
2.2.7 Service Side
BFM 1011F
1 Oil filler neck (valve-gear housing cover)
2 Charge-air line / air-intake line
3 Generator
4 Narrow V-belt
5 Solenoid
6 Wheel-house cover
7 V-belt on crankshaft
8 Oil sump
9 Cut-out handle
10 Speed control lever
11 Oil dipstick
12 Crankshaft housing
13 Oil fill point (on side of crankcase)
14 Fuel pump
15 Easy-change fuel filter
16 Connecting facility for oil heater
17 Charge-air pressure full-load stop (TC)
18 Lube oil easy-change
19 Injection pumps
20 Oil cooler connection
21 Injection valves
2.2 Engine Illustrations
