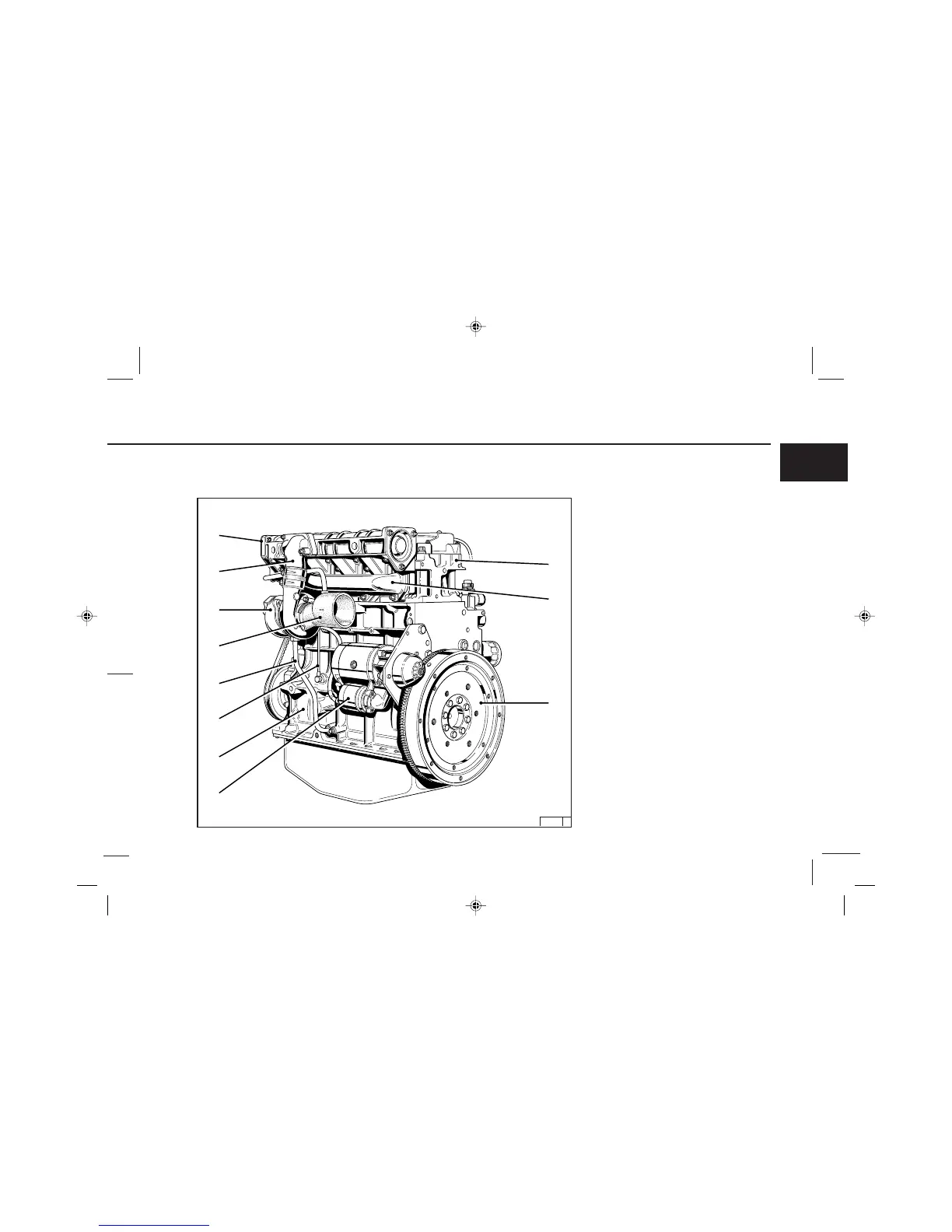

2.2.8 Exhaust side
BFM 1011F
22 Cylinder head
23 Exhaust manifold pipe
24 Flywheel with ring gear
25 Starter
26 Crankshaft housing
27 Inlet line to TC (Lube oil)
28 Return line from TC (Lube oil)
29 Induction pipe
30 Turbocharger (TC)
31 Intake manifold
32 Air-intake line
