3.3.4 Minimum installation distances
• A high limit humidistat must be installed in the duct to stop the humidifier in case the level of humidity exceeds
the preset value.
• If the recommended distances cannot be met, please contact Devatec or their authorized agent for an alternative
solution.
• Make sure the distances are met, if this is not possible, please contact your Devatec agent.
1) Before a junction
2) Before an air grid
3) Before a humidity
sensor
4) Before/after
strangulation
5) Before enlargement
6) Before a bend

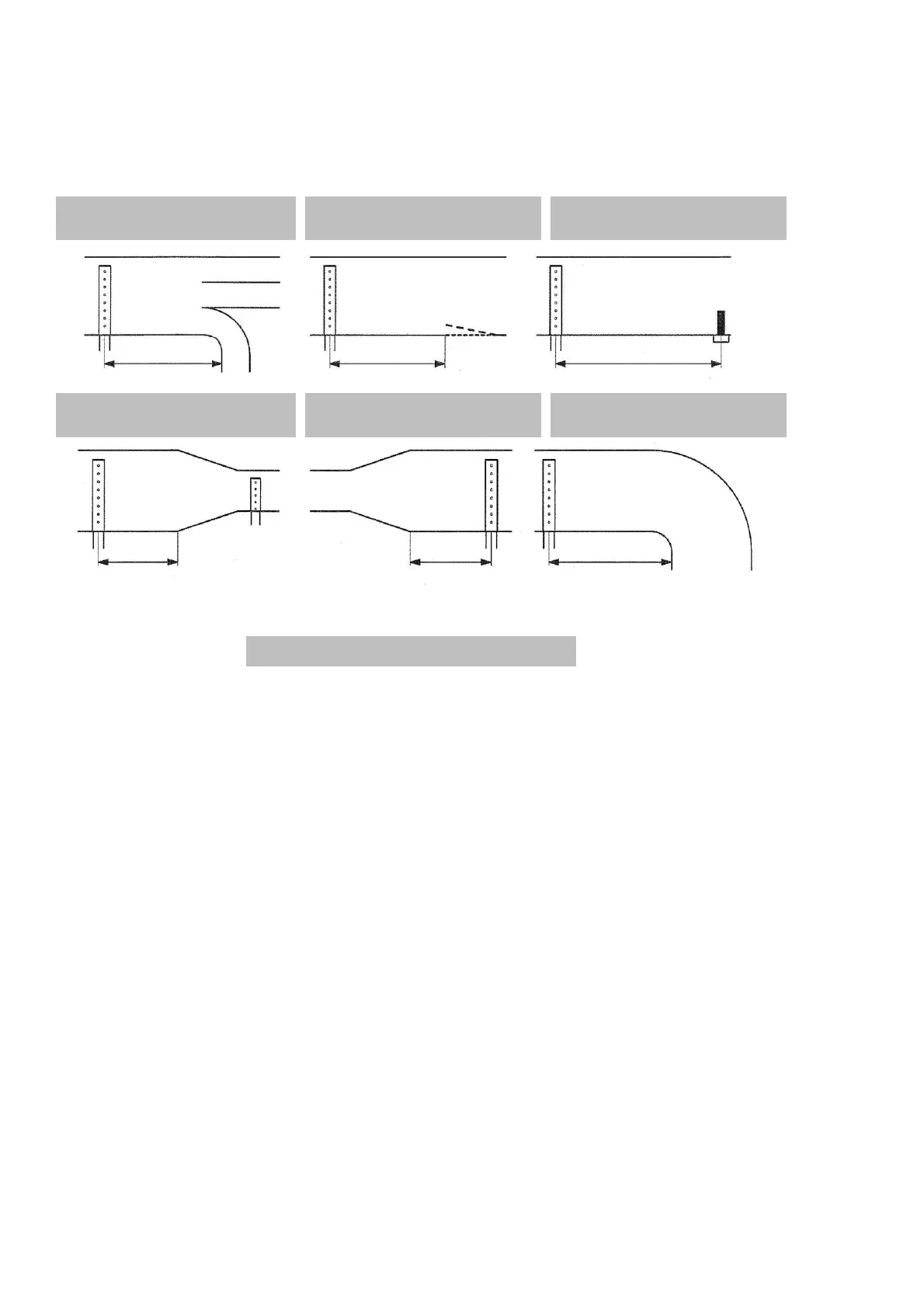

Fig. D 3-3. Installation distances
D
D
5 x D
0.5 x D
0.5 x D
D
