ELECTROVAP® ELMC
54
7.2 WATER INLET VALVE
7.3 DRAINING CIRCUIT
N°
Code
Description
1-2
D110157-SP
Water inlet valve (1 cylinder)
1-2
D110771-SP
Water inlet valve (2-3 cylinders)
2
D116655-24
Coil 24V
D116655-24-UL
UL coil 24V
3
D111775-SP
Valve bracket
N°
Code
Description
1 - 5 &
8 - 10
D110147-SP
Complete valve (1 to 5)
1
Adapter ring
2
Protective ring
3
D110153-SP
O-ring seal (set of 10)
5
D110149-SP
Valve body
6
D110154-SP
Drain cup upper part
7
D110155-SP
Drain cup lower part
8
D110148-10-SP
Nut protection
9
D116656-24-SP
Drain valve coil
D116656-24-UL-SP
UL drain valve coil
4 - 10
D110148-SP
Valve pilot kit 24vac
D110148-UL-SP
Valve pilot kit 24vac (UL)

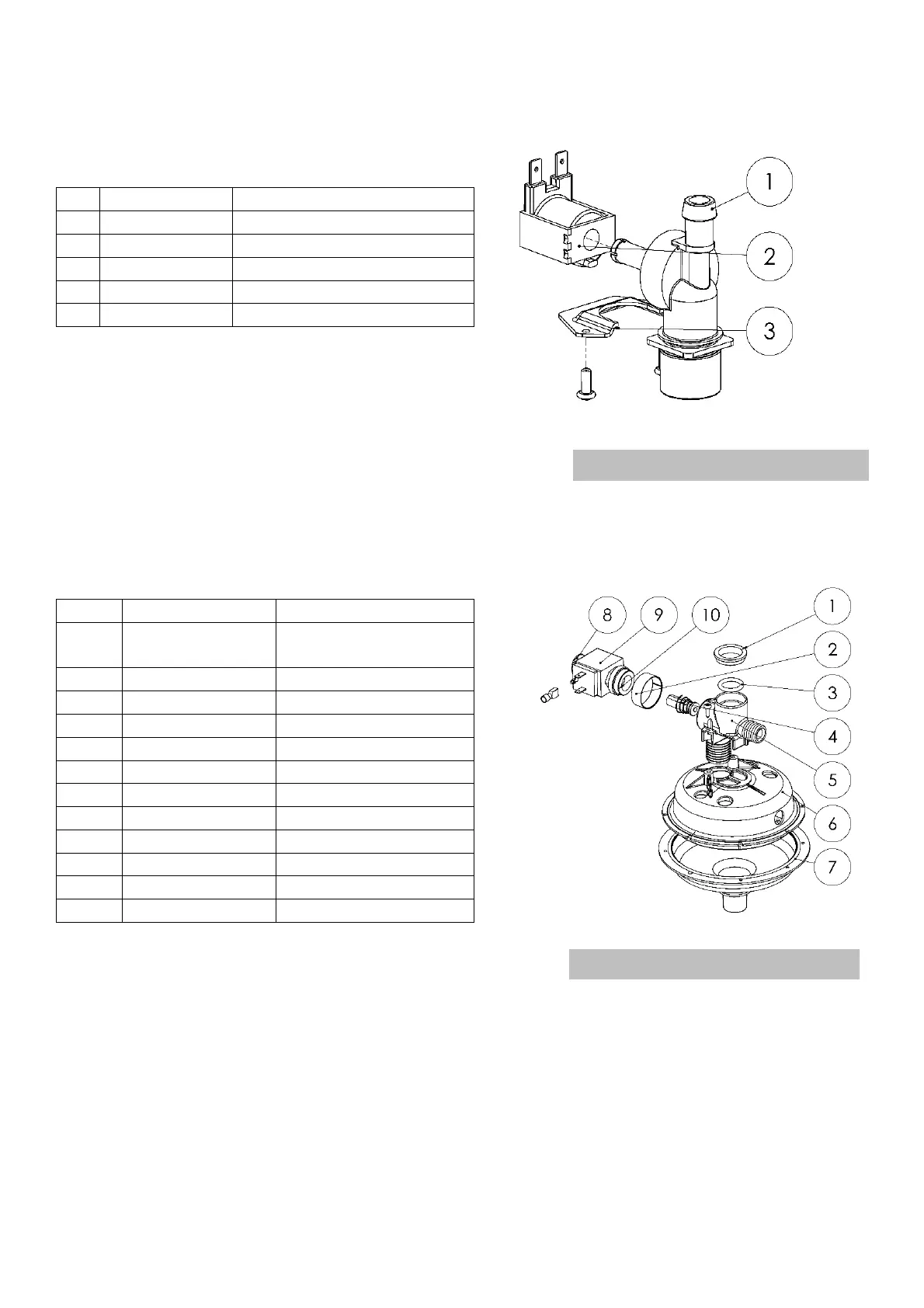

Fig. 7-2. Water inlet valve exploded view
Fig. 7-4. Draining circuit exploded view
