Devatec ElectroVap - Spare Parts: Hydraulic Components (Continued)

ELECTROVAP® ELMC
53
N°
Code
Description
11
D110214-SP
Set of 3 power electrodes for cylinder ELMC SC
D110217-SP
Set of 3 power electrodes for cylinder ELMC MC
12
D110212-SP
ELMC SC cylinder seal
D110213-SP
ELMC MC cylinder seal
13
D110221-SP
Brass nut for electrode (Sachet de 3)
15
D110233-SP
Screw pocket, nuts, cylinder washer
16
D110209-SP
High level electrode with M4 nuts
17
D110200-SP
ELMC MC Cylindre Electrode Brace
18
D110206-SP
ELMC SC cylinder spine
D110207-SP
ELMC MC cylinder spine

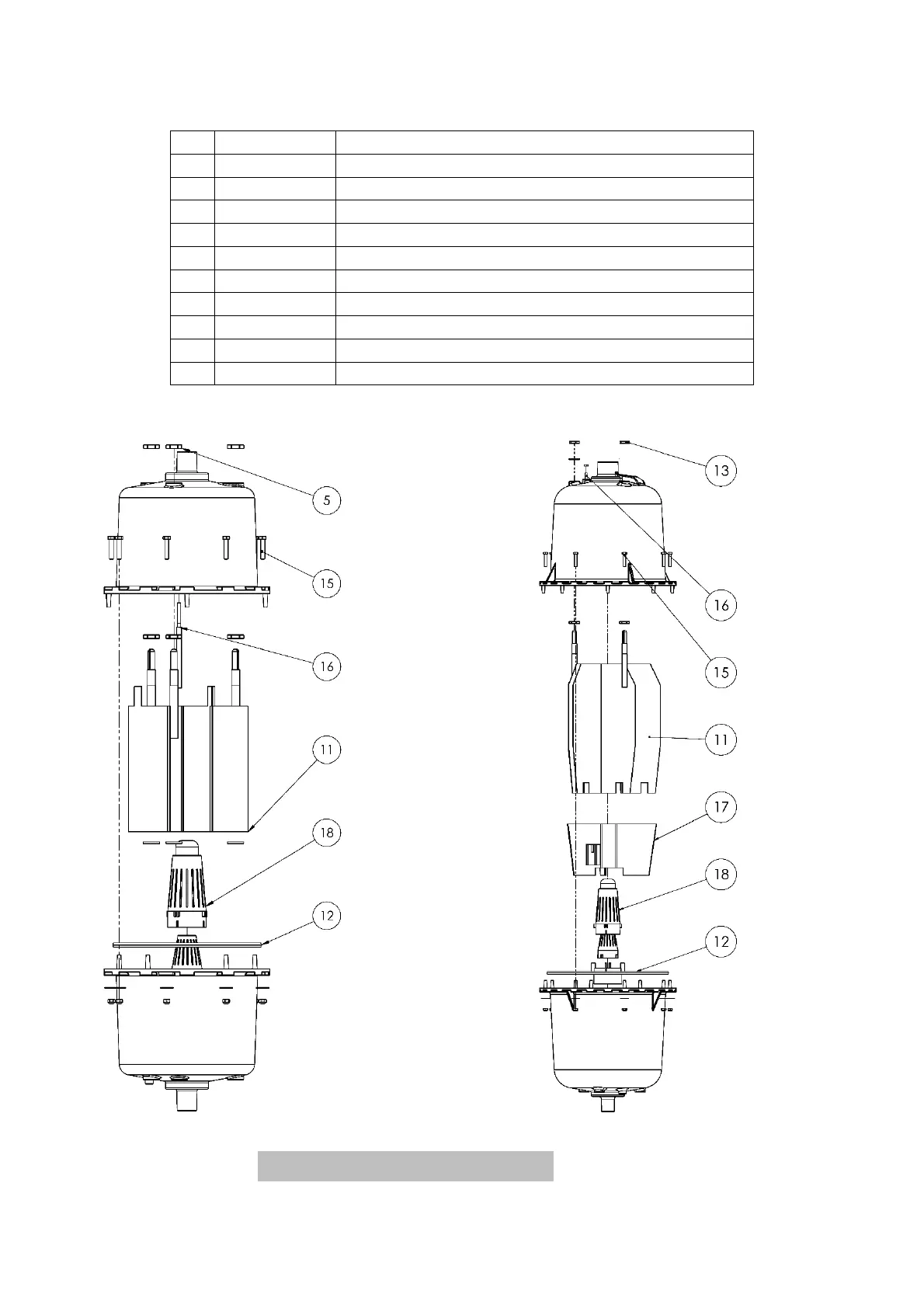

Fig. 7-1. Tank exploded view
