Devatec ElectroVap - Humidifier Size and Dimensions

ELECTROVAP® ELMC
7
2.2 SIZE
ELMC
5-15
ELMC
20-30
ELMC
40-60
ELMC
90
Number of steam outputs
1
1
2
3
Dimensions [mm]
A: Total width
469
554
794
1074
B: Total height
610
750
750
750
C: Depth
225
285
285
285
D: Height
538
678
678
678
E1: Steam outlet position
350
417
372
372
E2: Steam outlet position
111
137
137
137
E3: Distance between steam outputs
275
275
G1: Drain water position
350
417
372
372
G2: Drain water position
111
137
137
137
G3: Distance between draining water
275
275
H1: Water inlet position
222
222
222
222
H2: Water inlet position
141
181
181
181
I: Condensate outlet diameter
Ø 25
Ø 25
2 x Ø 25
3 x Ø 25
K: Steam output diameter
Ø 25 or 40
Ø 40 or 25
Ø 40 or 25
Ø 40 or 25
Mass [kg]
Weight in operation
23
37
60
90
Gross weight (packed)
15
22
30
45
FRONT SIDE
RIGHT SIDE

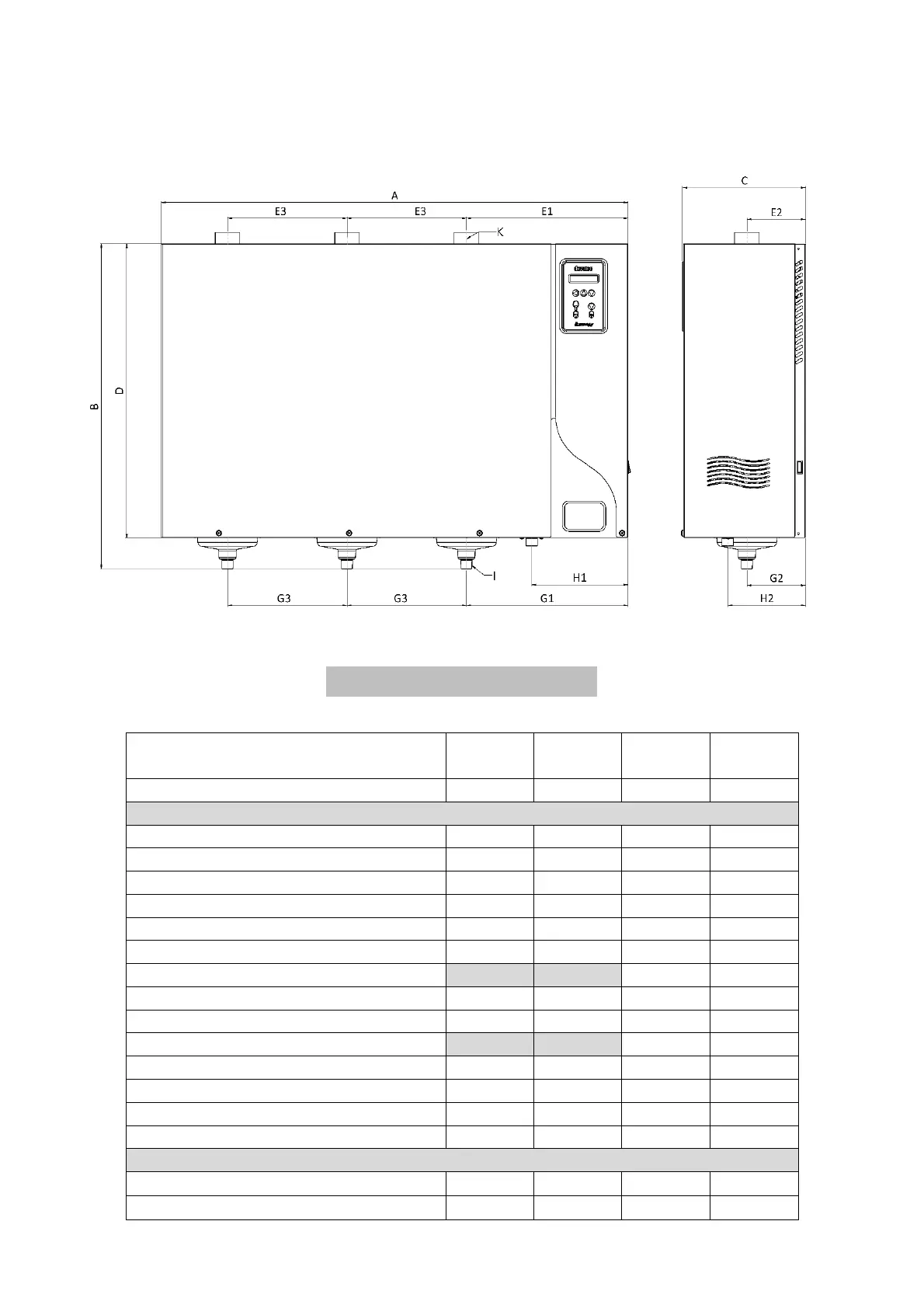

Fig. 2-2. Humidifier sizes
