Devatec ElectroVap - Spare Parts: Electrical Components

ELECTROVAP® ELMC
55
7.4 ELECTRICAL PART
N°
Code
Description
20
D121389-1-SP
Main Board ELMC 5-30 (1TI)
D121388-1-SP
Main Board ELMC 40-90 (0TI)
21
D110766-SP
Board / module 2 TI ELMC 40-60
D110186-SP
Board / module 3 TI ELMC 70-90
22
D50931-SP
Remote information board
23
D110124-SP
Display Board
24
D50932-SP
Contactor 24Vac
25
D92393-SP
Switch on/off
26
D110128-50-SP
Transformer: Prim: 2x115V / Sec: 2x12V
27
D116631-SP
Fusible fast 2A (Bag of 6)
28
D116718-SP
Fusible fast 5A (Bag of 6)
30
D109737-SP
Terminal block 35mm² (L1, L2, L3)
31
D110168-SP
Terminal block 16mm² (L, N)
32
D110768-SP
Fuse protection terminal 6mm².
33
D107491-SP
Feedback terminal (1, 2, 3, 4)
34
D110166-SP
Stop terminal
35
D110163-SP
Ground terminal block 35mm²
Location
Amp.
Fuse protection
F1
2AT
Power contactor coil
F2
2AT
Inlet valve coil
F3
2AT
Drain valve coil
F4
2AT
Electronic boards
Din rail 5 & 6
2AT
Transformer
Din rail 7 & 8
5AT
Transformer

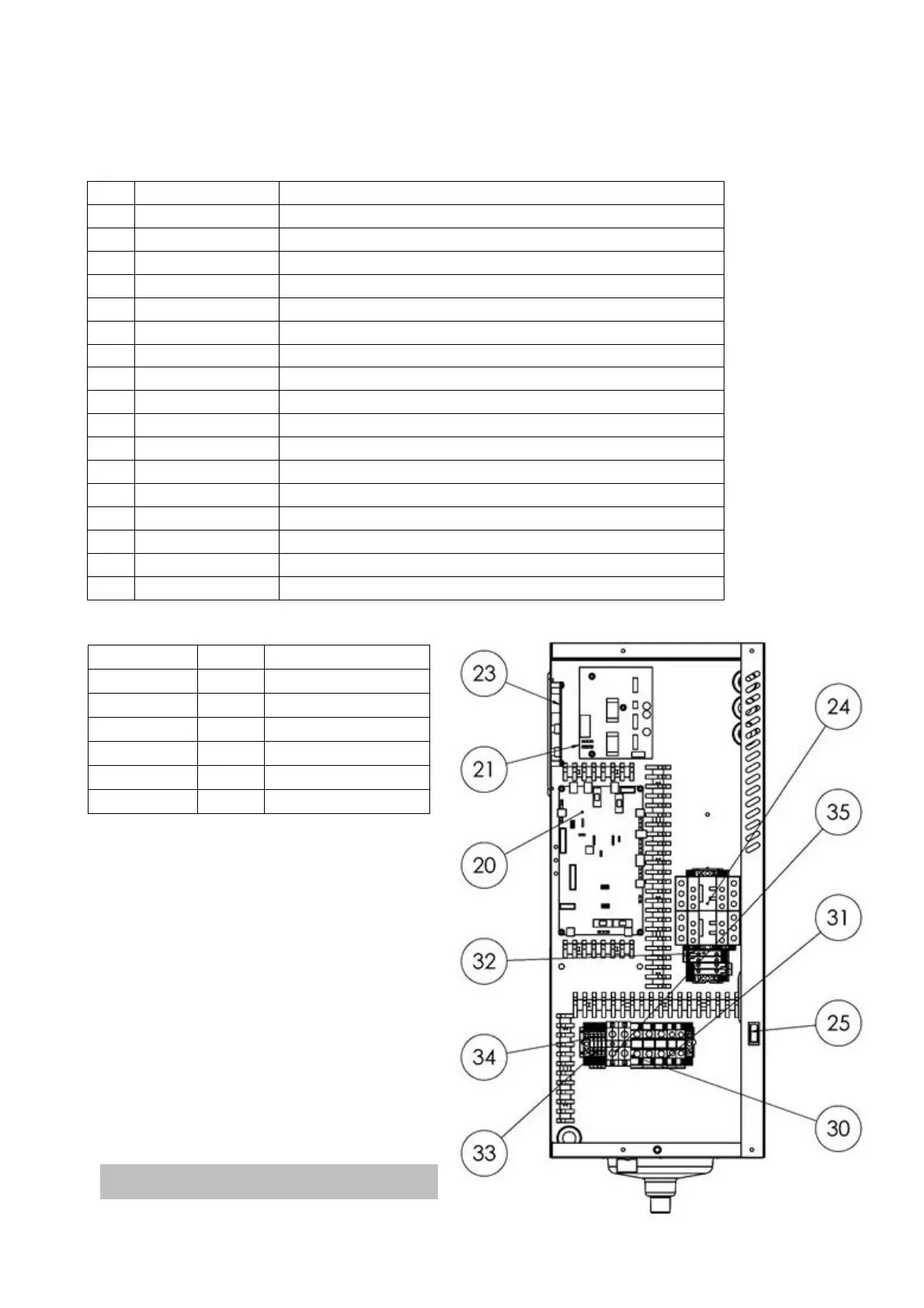

Fig. 7-5. Humidifier electrical compartment
