ELECTROVAP® ELMC
8
2.3 HUMIDIFIER COMPONENT PARTS
1
Steam hose
11
Identification label
2
Filling cup
12
Water inlet valve
3
LCD display board
13
Funnel
4
Main circuit board
14
Overflow hose
5
Power contactor
15
Drain valve
6
Fuse holders
16
Filling hose
7
3 relay board (optional)
17
Steam Cylinder
8
Transformer
18
High water level electrode
9
ON/ OFF Switch
19
Power electrode
10
Power rail
20
Cylinder retaining clip

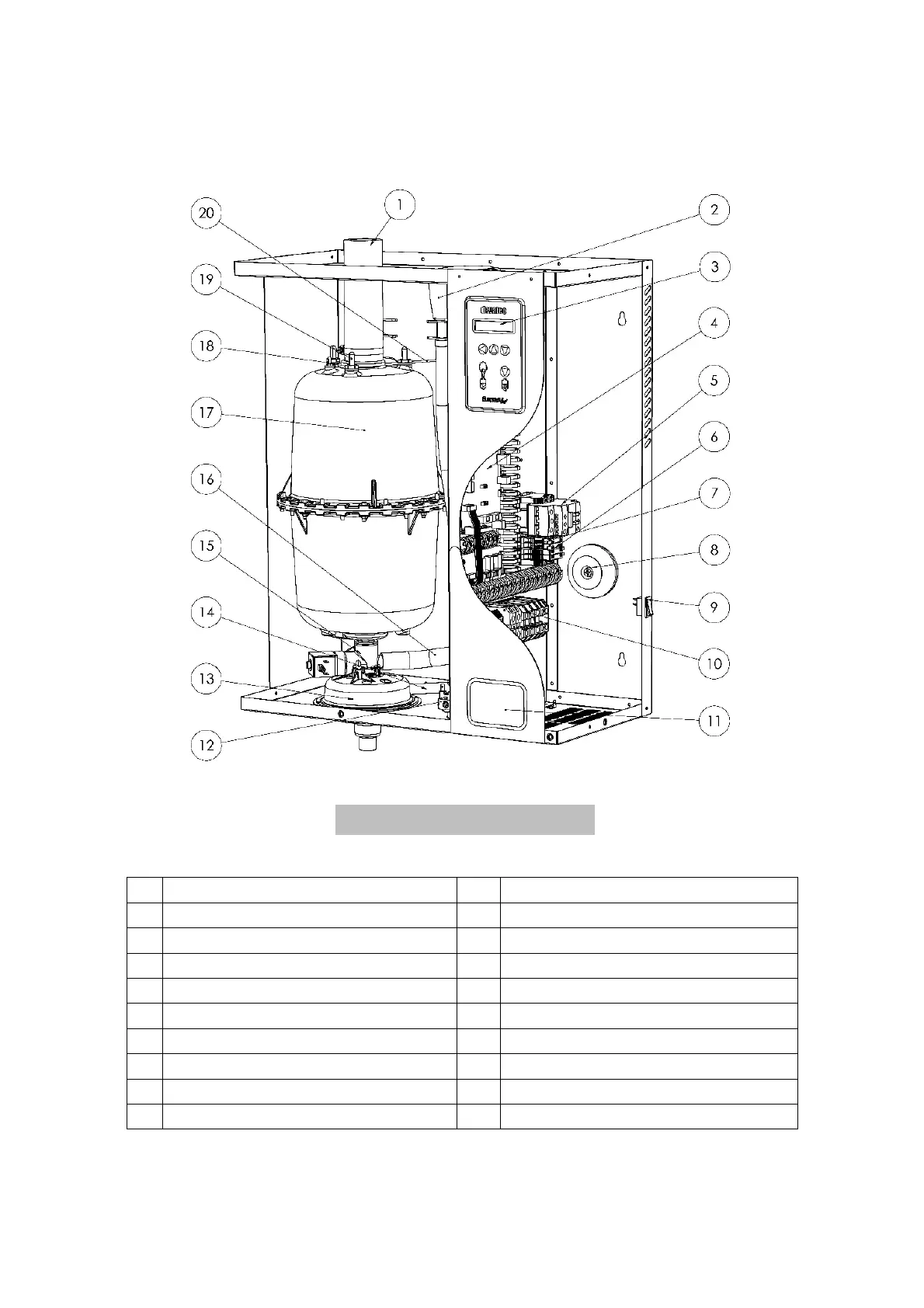

Fig. 2-3. Humidifier component parts
