ELECTROVAP® ELMC
16

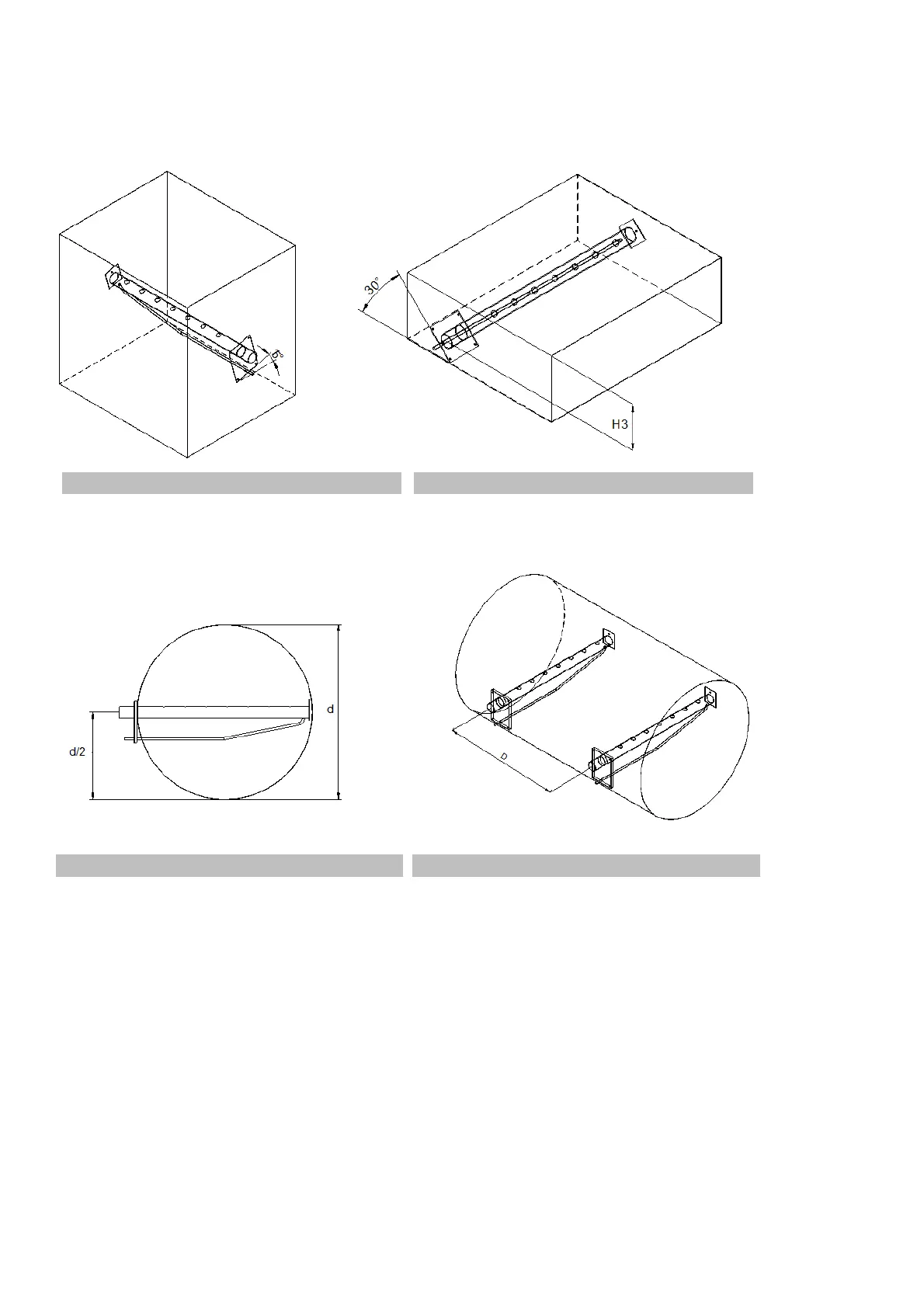

Fig. H 3-3. d = Diameter of the duct
Fig. I 3-3. D = Distance between two tubes
Fig. F 3-3. Vertical ducts
In vertical ducts where the air flow is upward or
downward, the steam distribution pipe(s) must
be tilted by 15° sideways
Fig. G 3-3. Ducts with limited height
In ducts with limited height, the distribution
pipe(s) can be tilted by 30° to get the 80 mm.
minimum height
