ELECTROVAP® ELMC
49

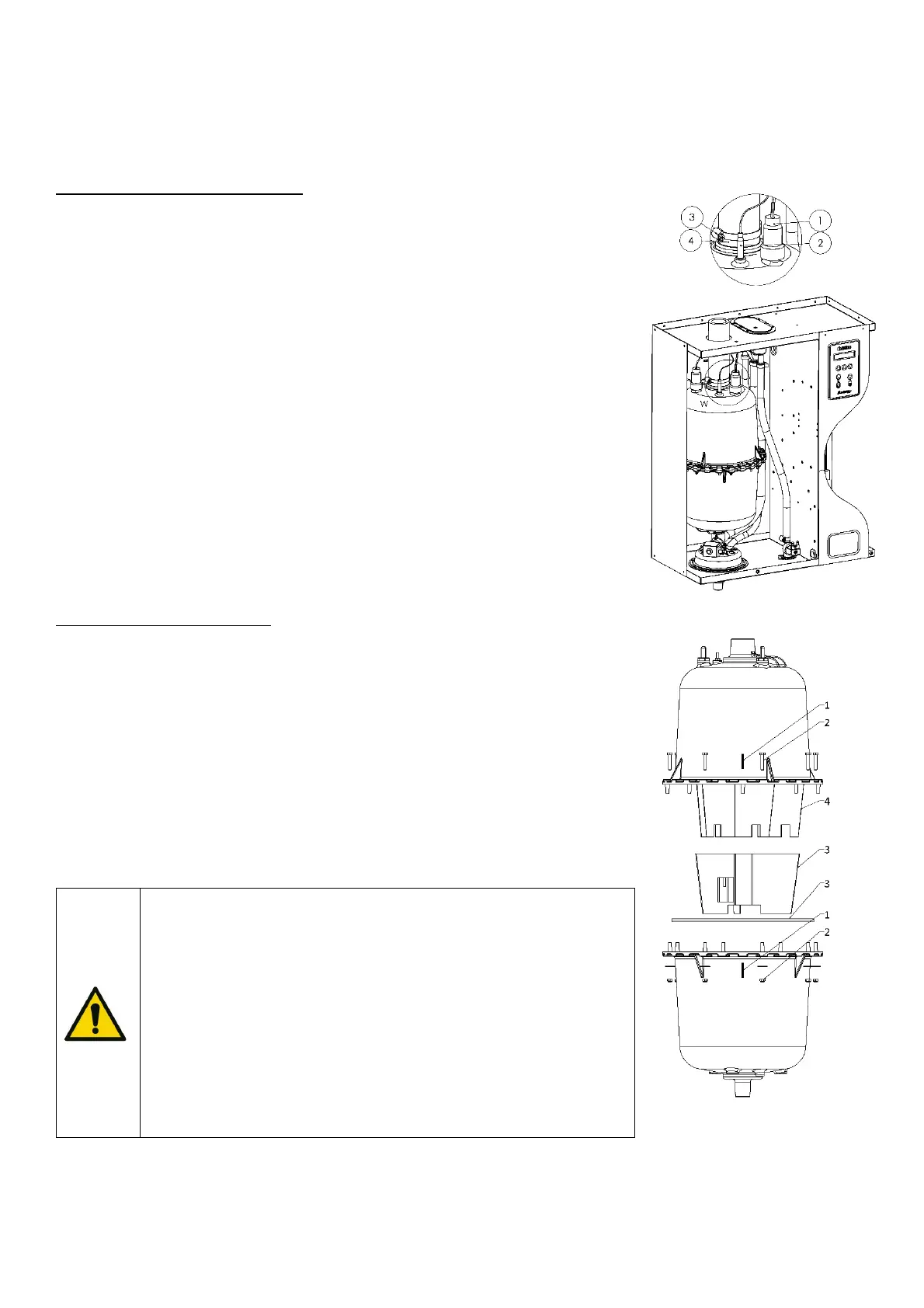

CYLINDER REPLACEMENT METHOD
• Drain the cylinder by pressing the drain button and wait until the cylinder is
completely empty. The message "DRAINING CYCLE OVER" appears.
• Turn off power of the power circuits (in the general electrical cabinet) and
control system located on the front of the device.
• Remove the door from the hydraulic compartment, remove the power cable
connectors and water level sensor (1 and 2). Then loosen the clamp to
disconnect the steam outlet hose (3 and 4).
• WARNING! Risk of burns. If the drain is recent, the steam cylinder is still
burning. Therefore, wait for it to cool down.
• Lift the cylinder up by pressing down on its base to release it from the foot of
the drain valve.
• Remove the top of the cylinder from the retaining clip and remove it from the
hydraulic compartment.
• Please tighten the steam hose slightly on the cylinder, only when the cylinder
is cold, to avoid deformation.
CYLINDER CLEANING METHOD
• After removing the cylinder, mark the two half-cylinders (1) at once.
• Remove the nuts and screws holding with two keys of 8 (2), open the cylinder.
Remove the strainer and seal, then clean them (3).
• Clean the electrodes, the brace, and the inside of the cylinder's bodies by
scraping the limestone (it is possible to use passed acid for power electrodes) (4).
• Rinse the electrodes, the bodies of the cylinder, the brace. Don't forget to clean
the strainer in the cylinder foot.
WARNING! Never shake the edge of the cylinder shells to remove
limescale. It is imperative to systematically replace the cylinder seal
and reposition it in its housing. Always replace the sealing ring and
insert it into the profile of the lower barrel of the cylinder. Then insert
the upper part (electrodes).
Make sure to align the two shells, reposition the nuts and screws.
Tighten by screwing the screws opposite each other so that the seal
is not deformed.
