DeVilbiss IntelliPAP DV54 - Travel and DC Power Capabilities; Adjusting Pressures and Features; DV54 PAP Device Images

5
LT-2 027
1.
C. TRAVEL
The DeVilbiss DV54 PAP
• Automatically adjusts for altitudes between sea level
and 9000 ft (2750 m)
• Automatically accepts line voltages of 100-240 V,
50/60 Hz
• Needs power cord appropriate for area
o USA DV51D-606
o Europe, except UK DV51D-607
o UK DV51D-608
o Australia DV51D-609
o Set of 3 (UK, Europe, Australia) DV51D-611
D. DC POWER
The DeVilbiss DV54 PAP
• Automatically accepts 12V DC power
• Operates on DC power only if AC power is not
present
• Operates on AC power if both DC and AC power
are present
• Optional 12V, 60 amp hour, deep cycle marine battery
• Optional DC to AC inverter:
minimum 200 watts @ 100/120 VAC
minimum 400 watts @ 220 VAC
• Needs appropriate DC power cord
o DV51D-619 DC accessory cable for DC plug-in
adapters
o DV51D-696 DC battery clamp-on adaptor for
stand-alone battery
E. SETTING PRESSURES AND FEATURES
Use the following steps to enter Clinical/Setup mode:
1. Apply AC power to the unit
2. Verify that LCD displays OFF
3. Press and hold the Down Arrow key and the Delay
key.
4. While holding two keys, press the ON/OFF key.
5. The blower will begin operating and the LCD will
display ‘Clinical Menu’.
6. Use the Left and Right Arrow keys to scroll through
the options
7. Use the Up and Down Arrow keys to select the
option’s value.
8. Press the ON/OFF key at any time to exit Clinical Mode.

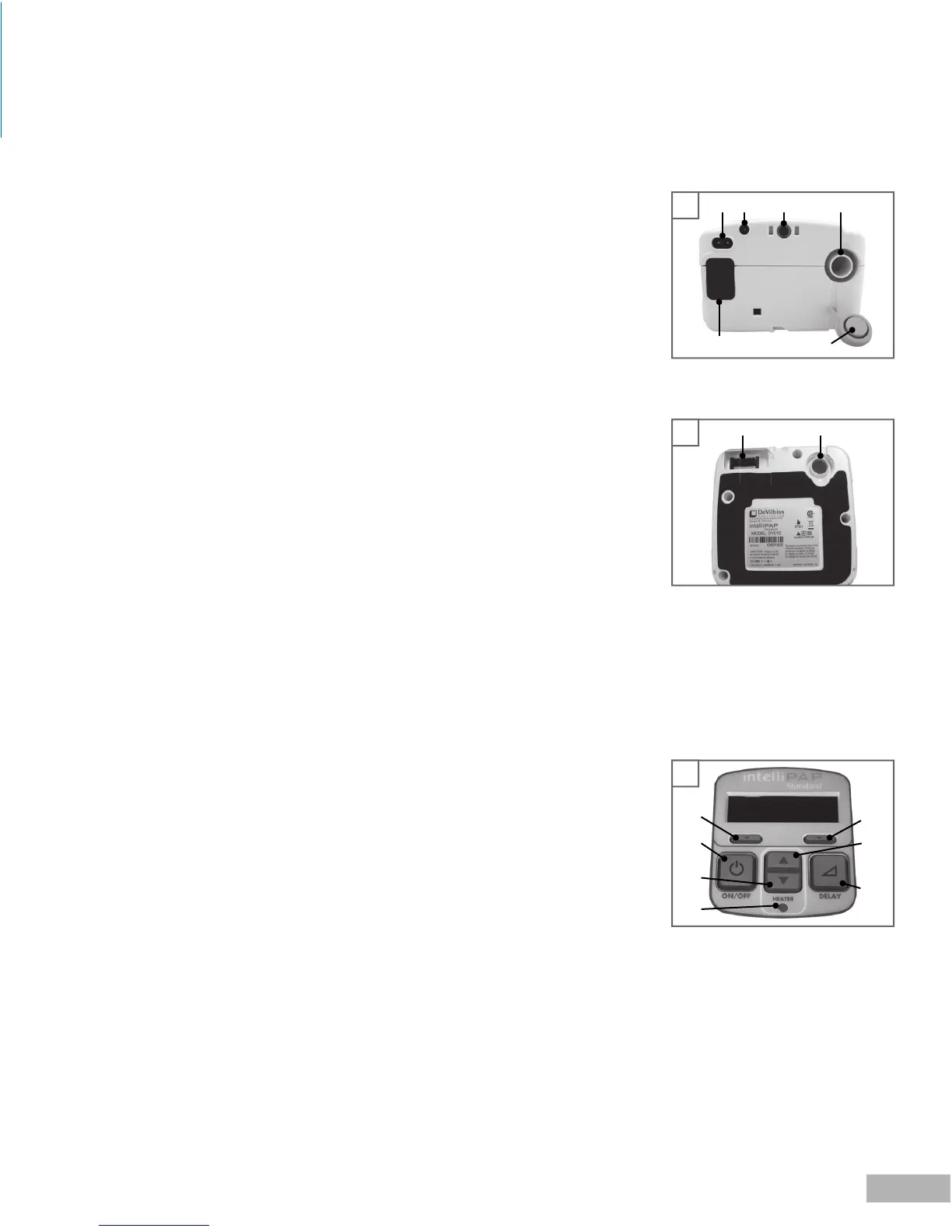

F. IMAGES: DEVILBISS DV54 PAP
Figures A and B:
DV54 Device Back and Bottom Views
1. Air supply port
on back of
device
2. Air supply port
on bottom of
device
(for optional
humidifi er)
3. Air supply port
plug
4. Heater power
connector
(for optional
humidifi er)
5. AC power
connector
6. DC power
connector
7. Data port
8. Air inlet fi lter
opening
Figure C: Keypad
1. ON/OFF
2. Previous item
3. Next item
4. Delay
5. Decrease value
6. Increase value
7. Heater power
LED
(for optional
humidifi er)
B
2
4
A
1
3
5 6 7
8
C
5
1
2
4
6
3
7
