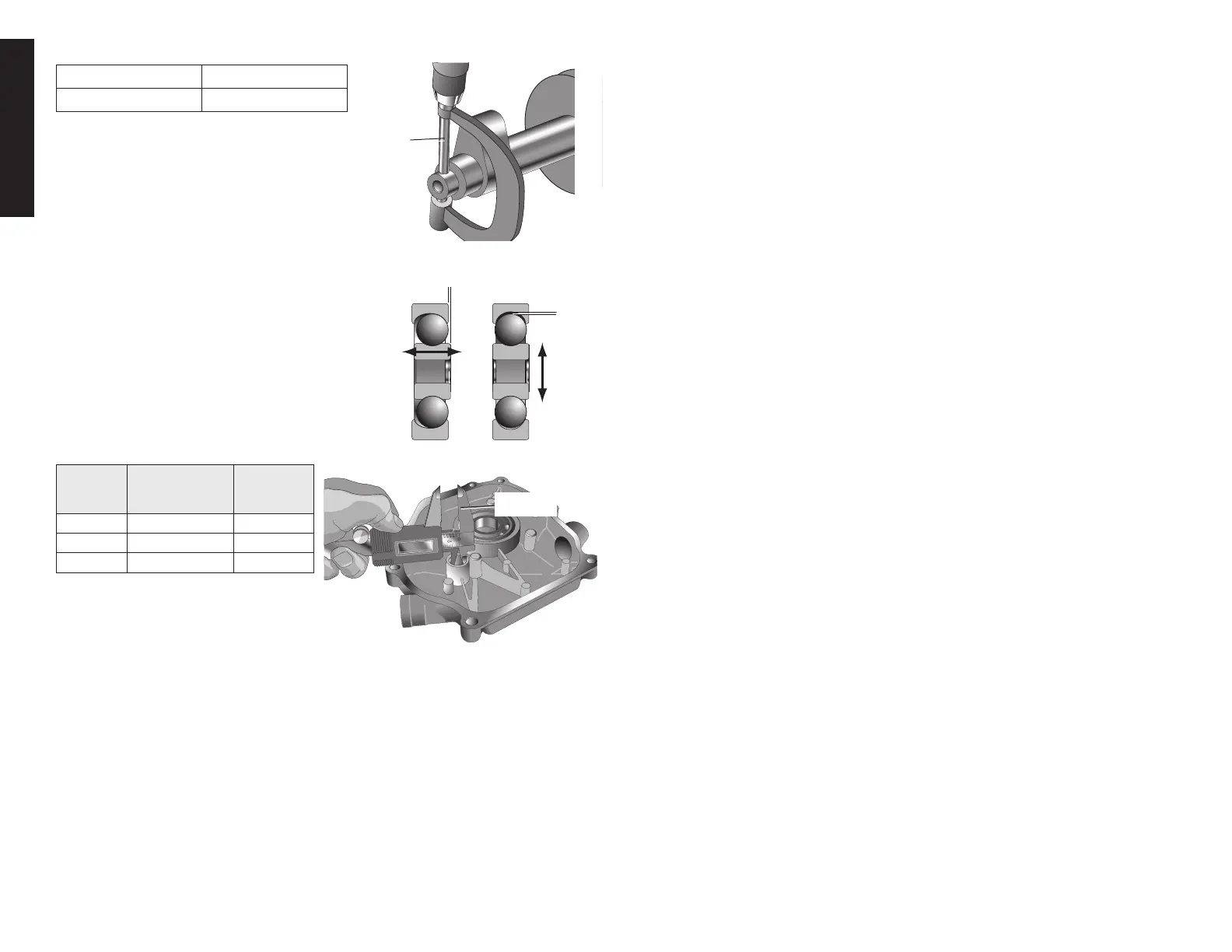

CAMSHAFT O. D.
STANDARD SERVICE LIMIT
13.966~13.984 13.916
CRANKSHAFT BEARING FREE PLAY
1. Clean the bearing in solvent and dry.
 2.Spinthebearingbyhandandcheckforplay.
PLAY
PLAY
RADIALAXIAL
Replace the bearing if it is noisy or has
excessive play.
CAMSHAFT HOLDER I.D.
MODEL
STANDARD
(MM)
SERVICE
LIMIT
(MM)
dW168
14.000~14.018 14.050
dW177
16.000~16.018 16.050
dW188
16.000~16.018 16.050
MICROMETER
CALIPER
