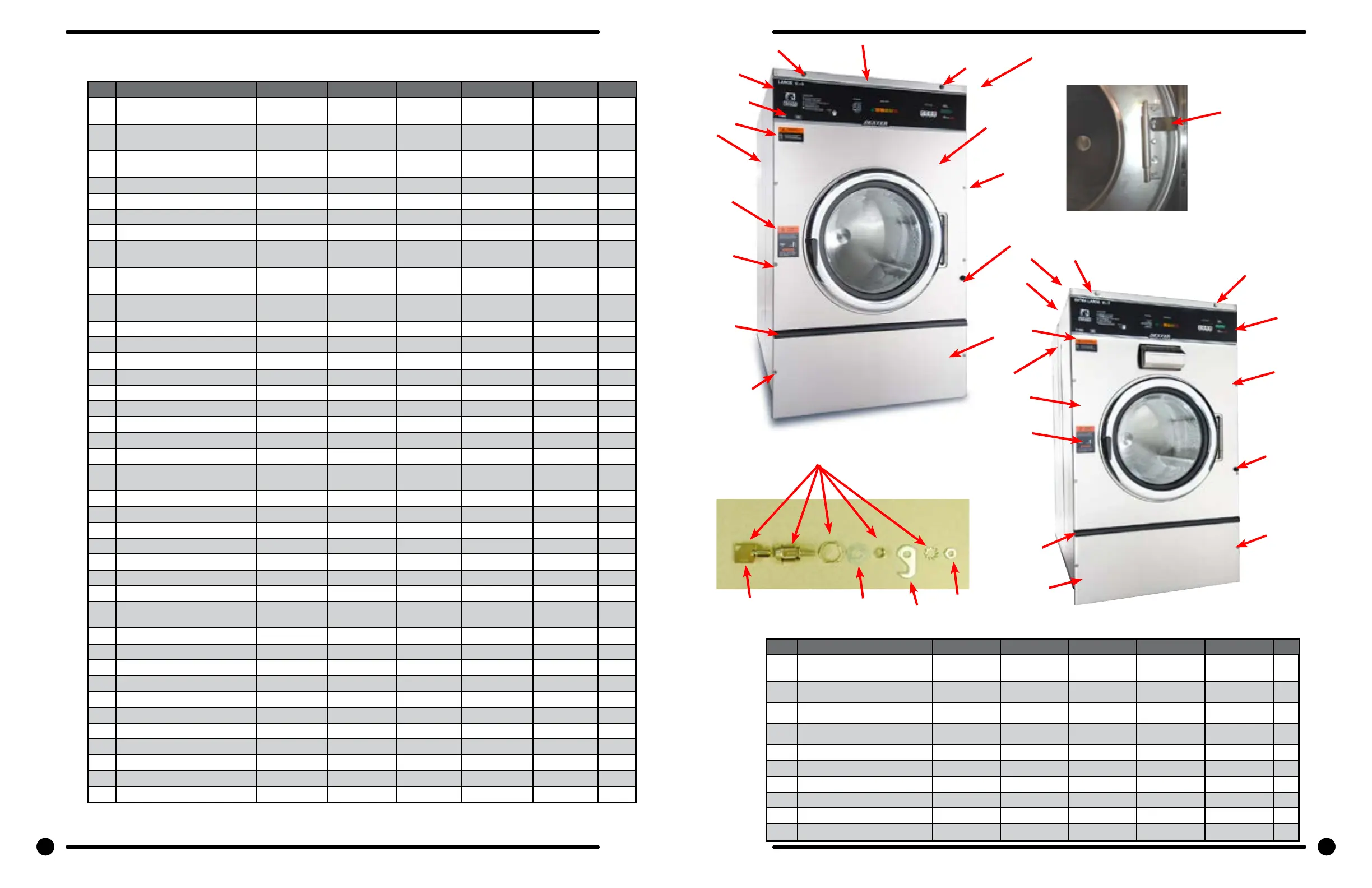

Cabinet and Front Panel Group Part # by Model
Large Door Before Serial # 535659
Key Description T750 T-900 T950 T-1200 T1450 QTY
1 Panel, Side (Left or Right) -
stainless
9454-812-001 2
1 Panel, Side (Left or Right) -
stainless
9454-813-001 9732-359-003 4
* Bolt-1/4-20x1/2 (side panel Front
to Rear)
9545-018-013 9545-018-013 9545-018-013 8
* Nut 1/4-20UNC (side panel) 8640-414-006 8640-414-006 8640-414-006 8
* Strap Assy (Side to base) 9966-013-001 2
* Strap Assy (Side to base) 9966-012-001 9966-012-002 4
* Shim (side panel to base) 9552-041-001 9552-039-001 9552-039-001 2
* Nut, Hex 1/4-20 UNC (for strap
assembly to base)
8640-414-006 6
* Nut, Hex 1/4-20 UNC (for strap
to base)
8640-414-006 8640-414-006 8
2 Bracket, Side Panel under front
panel
9046-085-001 9046-085-001 9046-085-001 1
* Screw #10Bx1/2 side panel brkt 9545-008-026 1
* Nut 1/4-20 UNC side panel brkt 8640-414-006 1
* Nut, Hex 8640-413-002 8640-413-002 2
* Screw 9545-008-024 9545-008-024 2
3 Panel Assy, Front 9454-810-002 9454-810-002 9989-618-003 1
* Band, Edge Protector 9578-072-002 1
4 Bumper Loading Door 9051-055-001 9051-055-001 9051-055-001 1
* Nut, 1/4 x 20 for bumper 8640-414-006 8643-414-006 8643-414-006 1
* Screw, Hex- To Control Panel 9545-008-024 9545-008-024 9545-008-024 2
* Nut, Spring- To Control Panel
10/32
8640-442-001 8640-442-001 8640-442-001 2
5 Screw, Flat Head- Front to Sides 9545-008-014 9545-008-014 2
5 Screw, Flat Head- Front to Sides 9545-008-014 4
6 Washer, Finish 8641-585-001 8641-585-001 2
6 Washer, Finish 8641-585-001 4
* Nut, Spring-To Front Panel 8640-442-001 8640-442-001 8640-442-001 2
7 Label, Door Opening (Blue) 8502-723- 001 8502-723-001 8502-723-0 01 1
7 Label, Door Opening (Black) 8502-742-001 8502-742-001 8502-742-001 1
8 Panel, Control (Mounts Name-
plate)
9989-480-001 9989-480-001 9989-480-001 1
* Screw, Control Panel to Sides 9545-008-026 9545-008-026 9545-008-026 4
9 Nameplate Decal, Control Blue 9412-163-001 9412-119- 001 9412-134 -001 1
9 Nameplate Decal, Control Black 9412-185-001 9412-186-001 9412-189-0 01 1
10 Panel Top 9454-743-001 9454 -736-001 1
11A Panel Top Front 9454-761-0 01 1
11B Panel Top Rear 9454-762- 001 1
12 Lock, Top (w/Key) 8650-012-003 8650-012-003 8650-012-003 2
13 Door, Lower Service W/Handle 9960-286-004 9960-286-004 9960-286-004 1
14 Handle (bumper guard) 9244-086-003 9244-086-003 9244-086-003 1
* Rivet Blind 3/16” Alum 9491-009-003 9491-009-003 4
* Screw 9545-045-010 9545-045-010 4
Key Description T-750 T-900 T950 T-1200 T1450 QTY
15 Screw Mtg., Flat Head 10Bx1
3/4
9545-008-014 9545-008-014 9545-008-014 2
16 Washer, Finish 8641-585-001 8641-585-001 8641-585-001 2
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 2
17 Label-Risk of injury (Blue) 8507-722-002 8507-722-002 8507-722-002 1
17 Label-Risk of injury (Black) 8507-741-001 8507-741-001 8507-741- 001 1
18 Key, Top- # 6324 6292-006-007 6292-006-007 6292-006-007 1
19 Washer Flat 5/16 8641-581-008 8641-581-008 8641-581-008 1
20 C am, Lock-Top 9095-038-001 9095-038-001 9095-038-001 1
21 Nut, 9/32 - 28 Hex 8640-426-001 8640-426-001 8640-426-001 1
1
90 91
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
90 91
3
9
12
14
11A
15,16
13
1
2
4
7
8
18
5,6
9
11B
12
12
12
13
14
4
5,6
15,16
5,6
17
10
1
3
9
19
20
21
12
17
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
To Next Page
