Dexter Laundry WCVD Series User Manual

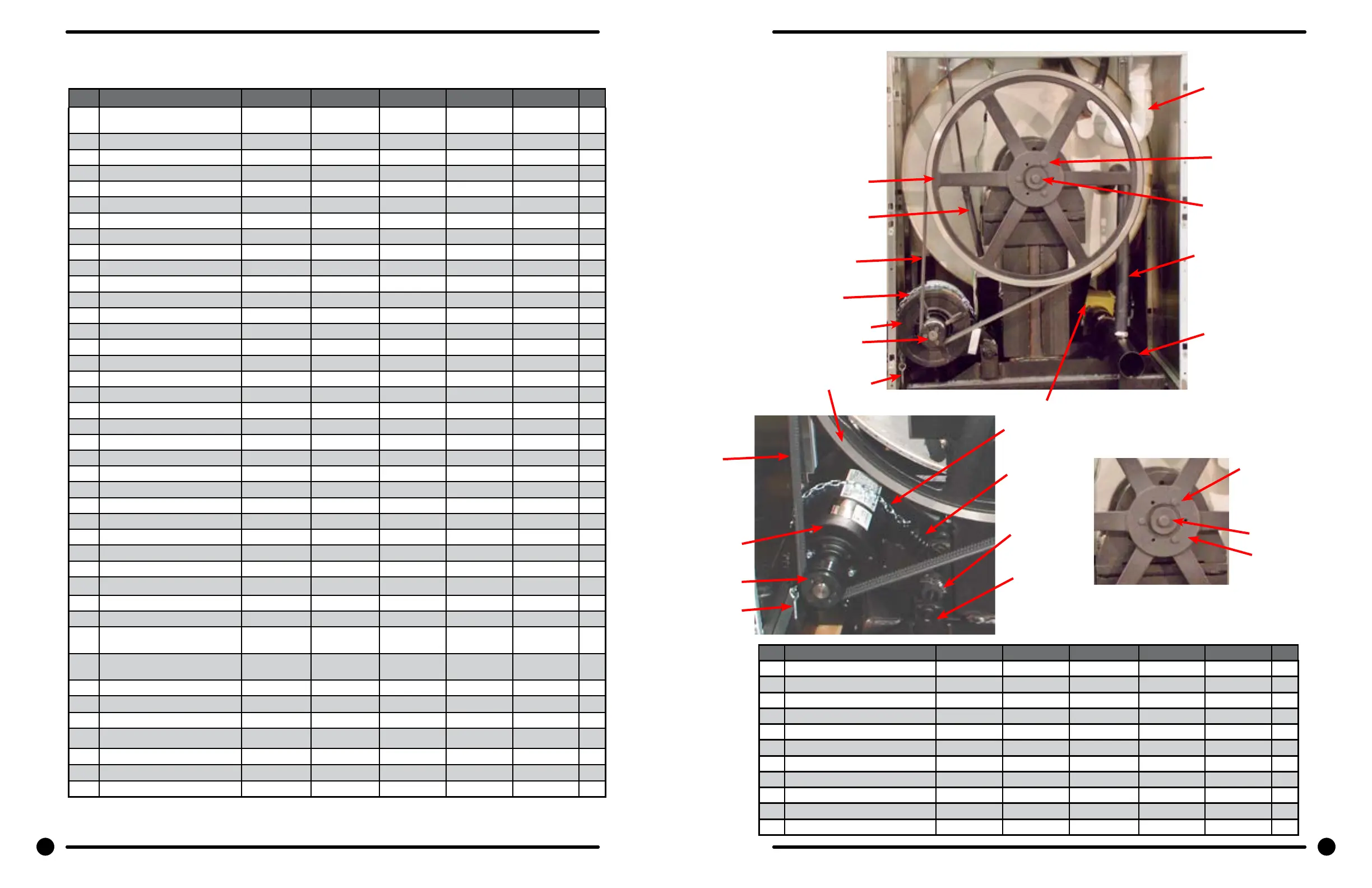

Rear View Access Part # by Model
Key Description T-750 T-90 0 T-950 T-1200 T-1450 QTY
1 Drive Motor, 3 Phase (Inverter
duty)
9376-298-001 9376-308-001 9376-298-001 9376-298-001 9376-328-001 1
2 Rod, Motor Mtg 9497-222-004 9497-222-004 9497-222-004 9497-222-004 9497-222-004 1
* Collar, Shaft (w/set screws) (old) 9076-052-002 9076-052-002 9076-052-002 9076-052-002 2
* Motor Bushing (plastic) 9053-074-002 9053-074-002 9053-074-002 9053-074-002 9053-074-002 1
3 New motor bushing support 9053-082-001 9053-082-001 9053-082-001 9053-082-001 9053-082-001 2
4 Clamp for motor bushing 8654-117-019 8654-117-019 8654-117-019 8654-117-019 8654 -117-019 2
5 Pulley, Motor 9453-179 -001 9453-175-002 9453-175- 002 9453-175-0 02 9453-175-002 1
* Split TaperBushing (motor pulley) 9053-077-001 9053-077-001 9053-077-001 9053-077-001 9053-077-001 1
* Screw taper bushing 1/4-20x1 9545-018-024 9545-018-024 9545-018-024 9545-018-024 9545-018-024 3
6 Bolt, Eye (1/4”-20x1/2”) 9545-055-001 9545-055-001 9545-055-001 9545-055-001 9545-055-001 1
* Nut, 1/4 Elastic Stop 8640-414-003 8640-414-003 8640-414-003 8640-414-003 8640-414-003 1
* Link (open end) 9341-046-001 9341-046-001 9341-046-001 9341-046-001 1
7 Chain (Spring Tension) 9099-012-003 9099-012-003 9099-012-003 9099-012-004 1
8 Spring, Belt Tension 9534-151-000 9534-151-000 9534-151-000 9534-151-000 9534-151-000 1
* Bracket Belt Tension 9029-206-002 1
* Lock Washer, Exttooth, 5/16 8641-582-009
9 Pulley, Driven 9453-179 -001 9453-176-006 9453-176-00 6 9453-176-006 9453-176- 006 1
* Tollerence Ring 9487-234-004 1
* Screw, 5/8”-11 x 2” 9545-060-004 1
* Washer-Flat, 5/8” 8641-582-032 1
* Washer-Flat, 5/8” 8641-582-018 1
10 Bolt, 3/8”-16 x 2” 9545-029-011 9545-029-011 9545-029-011 9545-029-011 3
11 Washer, 3/8” 8641-582-003 8641-582-003 8641-582-003 8641-582-003 3
* Bushing Taperlock (Driven) 9053-078-002 9053-078-002 9053-078-002 9053-078-002 1
12 Washer-Flat .675x2-1/2x1/4 8641-581-043 8641-581-043 8641-581-043 8641-581-043 1
13 Lockwasher-Exttooth, 5/8 8641-582-018 8641-582-018 8641-582-018 8641-582-018 1
14 Bolt, 5/8-11x1 1/2 9545-060-001 9545-060-001 9545-060-001 9545-060-001 1
12 Washer-Flat, .781x2-1/2x1/4 8641-581-044 1
13 Lockwasher-Exttooth, 3/4 8641-582-020 1
14 Bolt, 3/4-10-1 1/2 9545-057-004 1
15 Drive Belt 9040-079-002 9040-079-002 9040-079-003 9040-079-006 1
15 Drive Belt 9040-076-008 2
* Panel Assy., Back Before Serial
#535659
9989-455-001 9989-455-001 9545-766-001 1
* Panel Assy., Back After Serial
#535659
9989-526-001 9989-526-001 1
* Panel Assy., Back, Upper 9454-873-001 1
* Panel Assy., Back, Lower 9454-873-002 1
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 9545-008-026
* Screw Panel Mtg.#10Bx1/2” 9545-008-026 15
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 AR
* Screw, To Base-1/4” x 3/4” 9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 3
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
16 Injection- tube assy 9883-005-001 9883-005-001 9883-005-001 9883-005-001 9883-011-001 1
* Inlet Cap 0935-135-001 0935-135-001
* Hose, Injection Tube to Tub 9242-461-001 9242-461-001 9242-461-001 9242- 461-001 9242-461-001 1
* Clamp, Injection Hose 8654 -117-014 8654-117-014 8654-117- 014 8654-117-014 8654-117-014 2
17 Hose-Overow 9242-449-003 9242-449-003 9242-449-003 9242-449-003 9242-449-005 1
* Clamp Hose Over Flow 8654 -117-008 8654-117-008 8654-117- 008 8654-117-0 08 8654-117-008 2
18 Drain Valve 9379-187-004 9379-187-004 9379-187- 004 9379 -187-00 4 9379-187-004 1
* Hose, Drain Valve to Tube 9242-457-001 9242-457-001 9242-457-001 9242-457-001 9242-457-001 1
* Clamp 8654 -117-014 8654-117-014 8654-117- 014 8654-117-014 8654-117-014 2
19 Drain Tube 9915-124 -002 9915-120-004 9915-120-004 9915-126-002 9915-129-002 1
20 Hose-Pressure Switch 9242-175- 007 9242-175-007 9242-175-007 9242-175- 004 9242-175-004 1
96 97
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
96 97
1
8
17
12,13,14
20
1
2
9
7
6
5
19
18
15
16
10,11
6
3,4
5
7
9
9
10,11
12,13,14
15
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
Accessories
