H2
H1
C2
C1
Vacuum Breaker
Soap Dish
H2
H1
C2
C1
Vacuum Breaker
Soap Dish
½ inch
barbed T

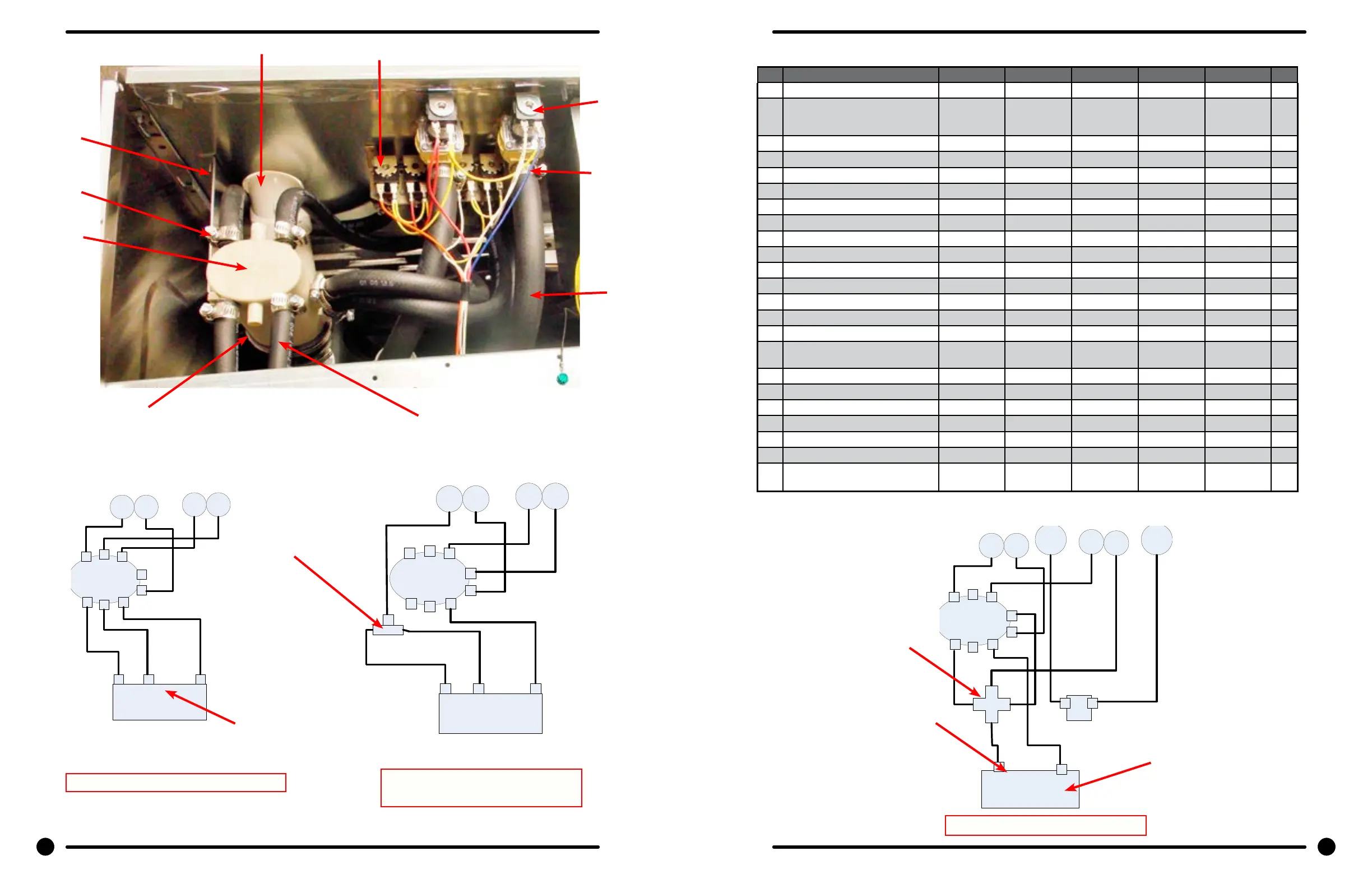

Water Inlet Part # by Model
Key Description T 750 T-900 T-950 T-1200 T-1450 QTY
A Injector Assembly 9883-005-001 9883-005-001 9883-005-001 9885-005-001 9885-011-001 1
1 Valve, Water Inlet (dual outlet) (see
Water Inlet Valve Breakdown for
individual parts)
9379-183-003 9379-183-003 9379-183-003 9379-183-003 9379-183-003 2
* Screw, Valve Mtg 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
2 Valve Water Inlet (single outlet) 9379-194 -001 9379-194- 001 9379 -194-001 2
* Screw, Valve M4x0.7x8mm 9495-064-001 9545-064-001 9545-064-001 8
3 Clamp-Water Valves 8654-117- 008 8654-117-008 8654 -117-008 8654-117-008 8654-117-0 08 AR
* Shield over Water Valves Plastic 9550-186-001 9550-186-001 9550-186-001 9550-186-001 9550-186-001 1
Screw 10-32x3/4” for shield 9545-012-006 9545-012-006 9545-012-006 9545-012-006 9545-012-006 2
* Nut #10-32 8640-413-004 8640-413-004 8640-413-004 8640-413-004 8640-413-004 2
4 Vacuum Breaker 9610-001-001 9610-001-001 9610-001-001 9610-001-001 9610-001-001 1
5 Bracket, Vacuum Breaker 9062-069-001 1
* Screw 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
6 New Front Mount Soap Box, 2 port
7 Fitting, Cross (new soap bhox) 8615-118-001 8615-118-001
8 Clamp, Vacuum Breaker End 8654-117-014 8654-117- 014 8654-117- 014 8654-117- 014 8654-117-014 1
9 Hose, Vacuum Breaker to Tub Injec-
tion Tube
9242-461-001 2
10 Flow restrictor 9475-002-002 9475-002-002 9475-002-002 9475-002-002 9475-002-002 2
11 1/2 inch hose, cut to length
12 3/4 inch hose, cut to length
13 Flow restrictor 9475-002-002 9475-002-002 9475-002-003 9475-002-003 3
* New Soap Box-Front Conversion 9732-290-001 9732-290-001 9732-290-001 9732-290-001 9732-290-001 1
14 Optional High Pressure”T” tting 8615-116-001 8615-116-001
* Tub Fill Inlet Cap 0935-135-001 2
110 111
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
110 111
12
A
14
1
11
7
8
5
3
2
4
3
Original Front Soap Box with
High Pressure Solution
Original Front Soap Box Design
6
7
13
New Front Soap Box Design
Water Inlet &
Rear Channel
Cylinder, Seals,
& Bearings
To Next Page
