Dexter Laundry WCVD Series User Manual

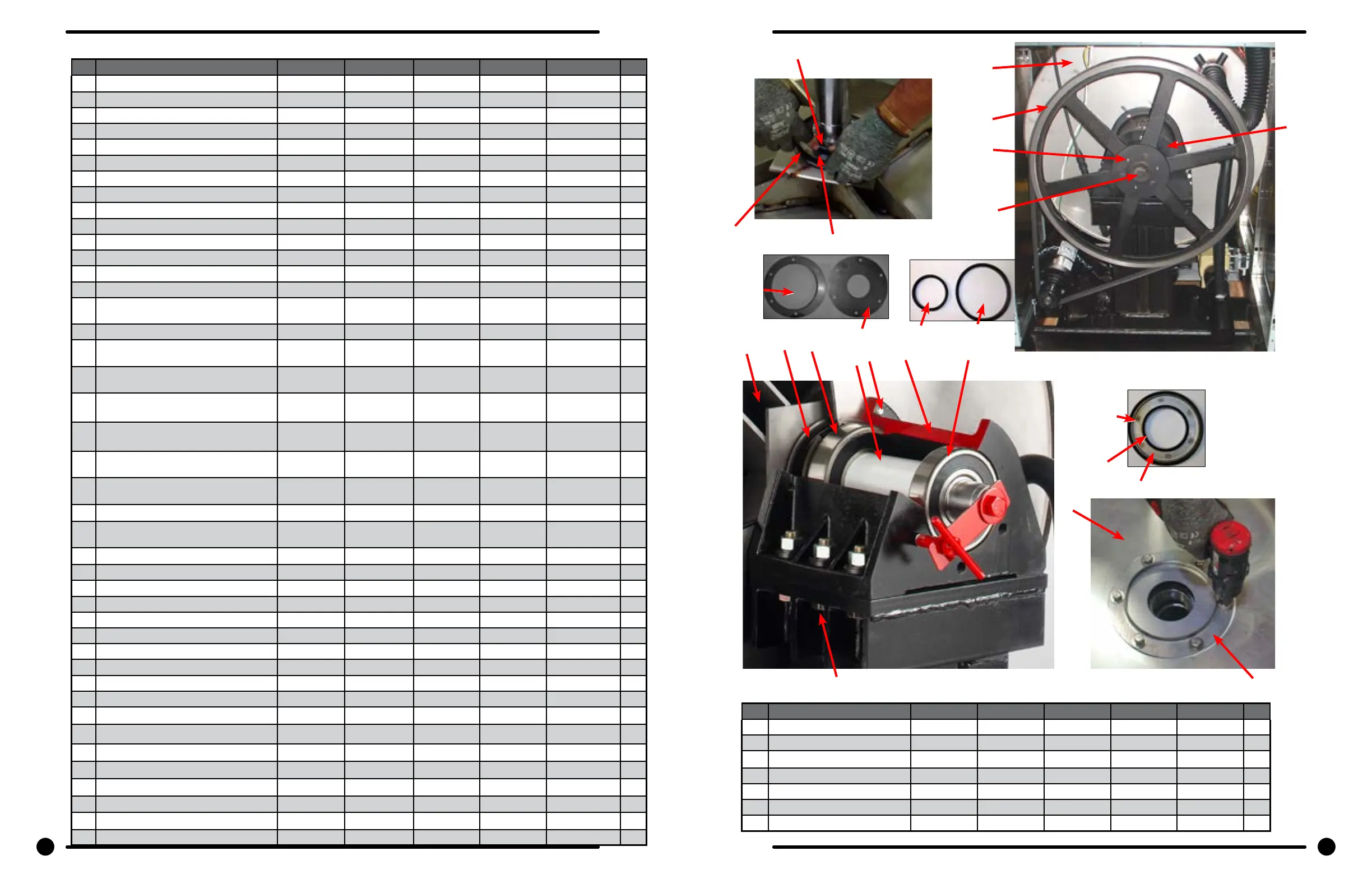

Cylinder, Seals & Bearings Part # by Model
Key Description T-750 T-900 T-950 T-120 0 T-1450 QTY
1 Bearings and Seal Kit 9732-219-007 9732-219-007 9732-219-007 9732-219-007 9732-219-009 1
1 Housing, Bearing- Assembly (items #2-#6) 9803-187-001 9803-187-001 9803-187-001 9803-187-001 9803-209-001 1
2 Housing, Bearing 9241-181-004 9241-181-004 9241-181-004 9241-181-004 9241-195-003 1
3 Bearing, Front (LARGE) 9036-159-006 9036-159-006 9036-159-006 9036-159-006 9036-162-002 1
4 Bearing, Rear (SMALL) 9036-159-005 9036-159-005 9036-159-005 9036-159-005 9036-162-001 1
5 Spacer, Bearing 9538-170-001 9538-170-001 9538-170-001 9538-170-001 9538-185-001 1
6 Ring, Bearing Retainer 9487-238-004 9487-238-004 9487-238-004 9487-238-004 9487-238-004 1
7 Tub Assembly 9930-148-001 9930-157-001 9930-157-001 9930-150-001 9930-155-001 1
8 Seal, Small V85A 9532-140-007 9532-140-007 9532-140-007 9532-140-007 1
8 Seal, Small V95A 9532-140-012 1
9 Seal, Large V140A 9532-140-008 9532-140-008 9532-140-008 9532-140-008 9532-140-008 1
10 Ring, Seal Mounting 9487-261-004 9950-052-001 9950-052-001 9950-052-001 9950-062-001 1
11 Tub Back Mating Ring 9487-266-001 9950-054-004 9950-054-004 9950-054-004 9487-276-001? 1
11G Mating Ring Guard Shield 9487-266-001 9487-266-001 9487-266-001 9487-266-001 9487-261-005 1
12 Bolt, Tub End of Bearing Housing (7/16-
14x1), Bolt from inside Tub
9545-059-004 9545-059-004 9545-059-004 9545-059-004 9545-059-004 6
13 Washer, Flat 8641-581-034 8641-581-034 8641-581-034 8641-581-034 8641-581-034 6
14 Screw-Hex Cap, 3/4”-10 x 3” (Bearing
Housing to Frame)
9545-057-002 9545-057-002 9545-057-002 9545-057-002 6
14 Screw-Hex Cap, 7/8”-10 x 3” (Bearing
Housing to Frame)
9545-066-001 6
15 Washers Spherical 3/4 (Male half) (Bearing
Housing to Frame)
8641-588-001 8641-588-001 8641-588-001 6
15 Washers Spherical 7/8 (Male half) (Bearing
Housing to Frame)
8641-588-003 6
16 Washers Spherical 3/4 (Female half) (Bear-
ing Housing to Frame)
8641-588-002 8641-588-002 8641-588-002 6
16 Washers Spherical 7/8 (Female half) (Bear-
ing Housing to Frame)
8641-588-004 6
15 Washer, Flat 8641-581-033 6
16 Lock Washer-Extrernal Tooth, 3/4” (Bear-
ing Housing to Frame)
8641-582-020 6
17 Nut 3/4”-10 (Bearing Housing to Frame) 8640-418-003 8640-418-003 8640-418-003 8640-418-003 6
17 Nut 7/8”-9 (Bearing Housing to Frame 8640-437-001 6
18 Pulley, Driven 9453-173-002 9 453-176-006 9453-176-006 9453-176-006 9453-176-0 06 1
* Tollerence Ring 9487-234-004 1
* Screw, 5/8”-11 x 2” 9545-060-004 1
* Washer-Flat, 5/8” 8641-581-032 1
* Washer-Flat, 5/8” 8641-582-018 1
19 Bolt, 3/8”-16 x 2” 9545-029-011 9545-029-011 9545-029-011 9545-029-011 3
20 Washer, 3/8” 8641-582-003 8641-582-003 8641-582-003 8641-582-003 3
21 Bushing Taperlock (Driven & Large 9053-078-002 9053-078-002 9053-078-002 9053-078-002 1
22 Washer-Flat .675x2-1/2x1/4 8641-581-043 8641-581-043 8641-581-043 1
23 Lockwasher-Exttooth, 5/8 8641-582-018 8641-582-018 8641-582-018 1
24 Bolt, 5/8-11x1 1/2 9545-060-001 9545-060-001 9545-060-001 1
22 Washer-Flat, .781x2-1/2x1/4 8641-581-044 1
23 Lockwasher-Exttooth, 3/4 8641-582-020 1
24 Bolt, 3/4-10-1 1/2 9545-057-004 1
25 Tub & Cylinder Assy Before Serial #535659 9869-025-001 9869-023-003 9869-022-001 1
25 Tub & Cylinder Assy After Serial #535659 9869-027-003 9869-027-003 9869-026-002 1
Key Description T750 T-900 T950 T-1200 T1450 QTY
27 Cylinder Assy 9848-136-002 98 48-136-0 01 9848-136-001 9848-137-002 9848-141- 001
* Tub Front Before Serial #535659 9974-011-001 9974-011-001 9974-011-001 1
* Tub Front After Serial #535659 9974-011-001 9974-011-001 9974-012-001 1
* Gasket, Tub Front 9206-421-002 9206-421-002 9206-421-002 9206-421-002 9206-421-??? 1
* Ring Assy, Tub Mtg-Front Clamp 9950-055-001 9950-055-001 9950-055-001 9950-055-001 9950-061-001 1
* Bolt, Top Front Ring 3/8”-16 x 3” 9545-029-009 9545-029-009 9545-029-009 9545-029-009 9545-029-009 1
* Nut WCAD 3/8”-16 8640-415-001 8640-415-001 8640-415-001 8640-415-001 8640-415-001 1
100 101
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
100 101
11
7
9
8
10
25
19,20
18
21,22,23,24
8
9
11
11 G
8
9
10
5
6
3
12,13
42
1
27
14,15,16,17
