Dexter Laundry WCVD Series User Manual

Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Channel, Rear 9081-148-001 9081-152-001 9081-152-002 9081-140-001 9081-153-001 1
2 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
* Nut, Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 4
3 Plate-Cover, Water Valves 9452-794-001 1
4 Screw, 10Bx1/2 9545-008-026 2
5 Plug, 7/8” 9456-041-006 9456-041-006 9456-041-006 9456-041-006 9456-041-006 1
6 Bushing, 7/8” 9053-067-002 9053-067-002 9053-067-002 9053-067-002 9053-067-002 1
7 Braacket-Terminal Block Assy 9029-076-001 9029-076-001 9029-076-001 9029-076-001 9029-076-001 1
8 Screw, 10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
9 Strip-Terminal marker, Power 9558-025-001 9558-025-001 9558-025-001 9558-025-001 9558-025-001 1
10 Terminal Block-Power 9897-033-002 9897-033-002 9897-033-002 9897-033-002 9897-033-002 1
* Screw-6ABx3/4 9545-031-010 9545-031-010 9545-031-010 9545-031-010 9545-031-010 2
* Harness-Power Terminal Block 9627-747-003 9627-747-003 9627-747-003 9627-747-003 9627-747-003 1
11 Terrminal Lug, Solderless 8652-134 -001 8652-134-001 8652-134-001 8652-134-001 8652-134-0 01 1
* Lockwasher-Exttooth, #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 1
* Screw-10-32ttX1x1/2Grn 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 2
12 Strip-Terminal Marking, Injector 9558-028-001 9558-028-001 9558-028-001 9558-028-001 9558-028-001 1
13 Terminal Block-Injector 9897-032-002 9897-032-002 9897-032-002 9897-032-002 9897-032-002 1
* Screw-4Bx5/8ss 9545-053-002 9545-053-002 9545-053-002 9545-053-002 9545-053-002 2
* Harness-Injection 9627-799 -001 9627-799- 001 9627-799- 001 9627-799-0 03 9627-799 -002 1
14 Label-Warning 8502-639-001 8502-639-001 8502-639-001 8502-639-001 8502-639-001 1
15 Bushing-Insulated, 3/4” 9053-067-001 9053-067-001 9053-067-001 9053-067-001 9053-067-001 1
16 Bushing-Insulated, 1” 9053-067-004 9053-067-004 9053-067-004 9053-067-004 9053-067-004 1
17 Cover, Terminal Block 9074-267-001 9074-267-001 9074-267-001 9074-267-001 9074-267-001 1
18 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
19 Fuse Holder Assy 9200-001-002 9200-001-002 9200-001-002 9200-001-002 9200-001-002
* Fuse, 1.5Amp 8636-018-001 8636-018-001 8636-018-001
* Fuse, 2.5Amp 8636-018-004 8636-018-004
20 Label-Fuse, 1.5Amp 8502-716- 001 8502-716-0 01 8502-716- 001
20 Label-Fuse, 1.5Amp 8502-716-002 8502-716-002
21 Bracket assembly (drive mount) 9029-157-001 9029-157- 001 9029-212-001 9029-150-001 9029-216-001
22 Screw, #10Bx1/2” 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 6
23 Nut, Spring 8640-399-001 8640-399-001 8640-399-001 8640-399-001 8640-399-001 6
24 Gromet, 3/16” I.D. 9209-037-002 9209-037-002 9209-037-002 9209-037-002 9209-037-002 6
25 VFD Delta “S” drive 208-240 volt 9732-345-012 9732-345-022 9375-018-002 1
25 VFD Delta “E” drive 208-240 volt 9375-028-003 9375-029-003 1
* Cable, Data 9806-015-001 9806-015-001 9806-015-001 9806-015-003 9806-015-003 1
* Clamp, Cable 8654-125-005 8654-125-005 8654-125-005 8654-125-005 8654-125-005 1
* Screw, 8Bx1/4” 9545-045-001 9545-045-001 9545-045-001 9545-045-001 9545-045-001 1
* Screw-10-32ttX1x1/2Grn 9545-008-027 9545-008-027 9545-008-027 9545-008-027 9545-008-027 2
* Lockwasher-Exttooth, #10 8641-582-006 8641-582-006 8641-582-006 8641-582-006 8641-582-006 2
26 Cover, VFD, Before Serial #935659 9074-278-001 9074-278-001 9074-278-001 1
26 Cover, VFD, After Serial #935659 9074-342-001 9074-342-001 9074-299-001 9074-299-001 1
27 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 1
28 Valve-Water, Duel Coil 9379-183-003 9379-183-003 9379-183-003 9379-183-003 9379-183-003 2
29 Screw #10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
30 Water-Valve, Single Coil 9379-194 -001 9379-194-001 9379-194-001 2
31 Screw-Phillips, 4mx0.7x8mm 9545-064-001 9545-064-001 9545-064-001 4

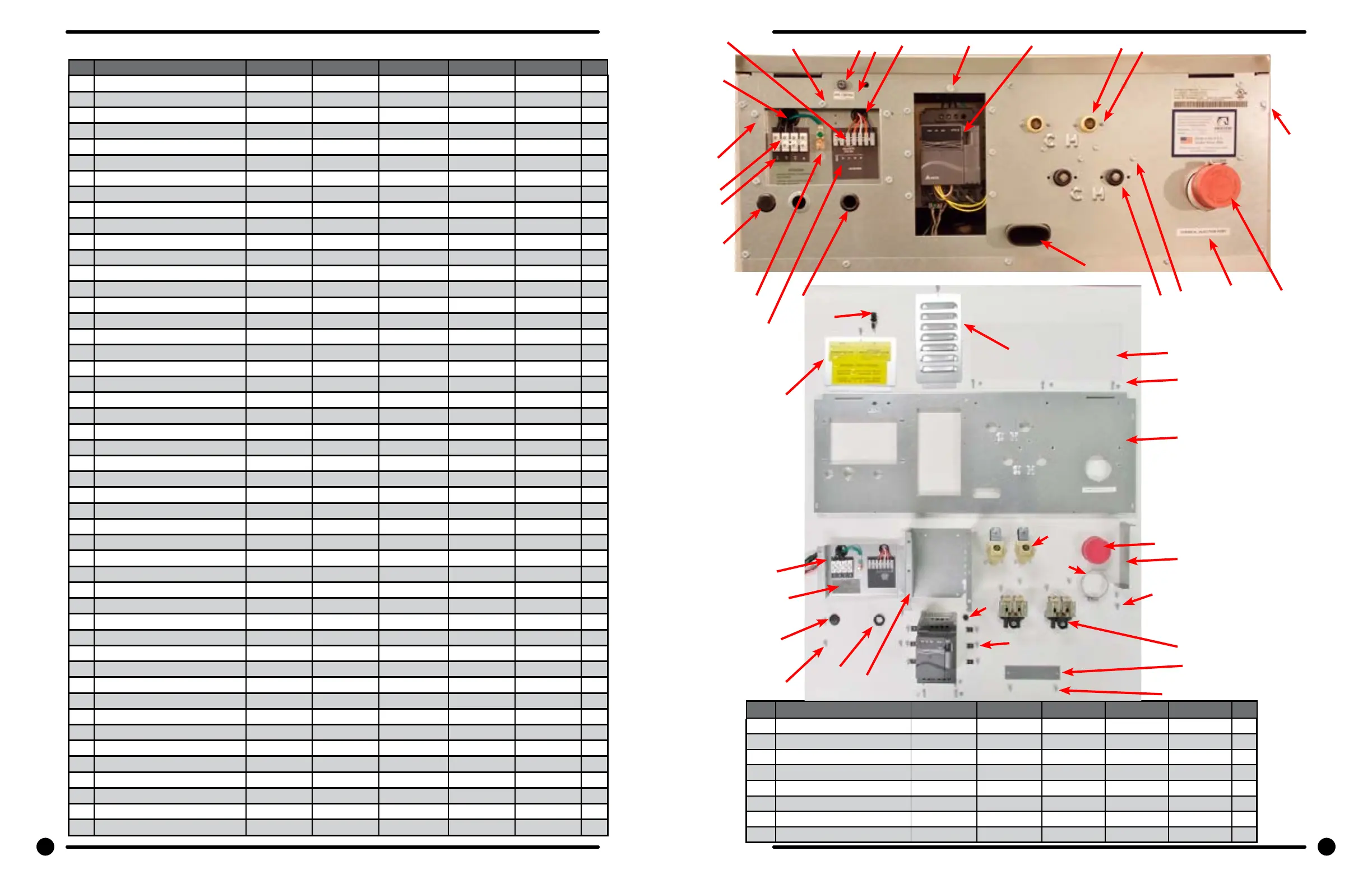

Rear View Access Part # by Model Continued
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
32 Shield, Water Valves 9550-186-001 1
33 Screw, 10-32x3/4” 9545-012-006 2
34 Nut, #10-32 8640-413-004 2
35 Bracket-Vacume Breaker 9029-069-001 9029-069-001 9029-069-001 9029-069-001 9029-069-002 1
36 Screw, 10Bx1/2 9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 2
37 Cap-Injector Assy 0935-127-001 0935-127-001 0935-127-001 0935-127-001 0935-127-001 1
38 Clamp 8654-117- 014 8654-117-014 8654-117-014 8654-117-014 8654-117-014 1
39 Hose-Suds Overow 9242-463-004 9242-463-004 9242-463-004 9242-463-004 9242-463-006
1
33,34
35
36
37
38
32
31
30
29
28
27
26
25
24
22,23
21
20
19
18
17
16
15
14
13
12
11
10
9
8
7
6
5
4
3
2
37
5
6
8
28
30
19
39
98 99
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
98 99
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents
Kits &
Assemblies
Wiring
Harnesses
Cabinet &
Front Panel
Rear
View
Cylinder, Seals,
& Bearings
Door
Lock
Loading
Door
Chassis
& Drain
Water Inlet &
Rear Channel
Electrical
Components
Control
Panel
Accessories
