Door Label
Top Dispenser Label Front Soap
Dish
Risk of Injury Label
2
1

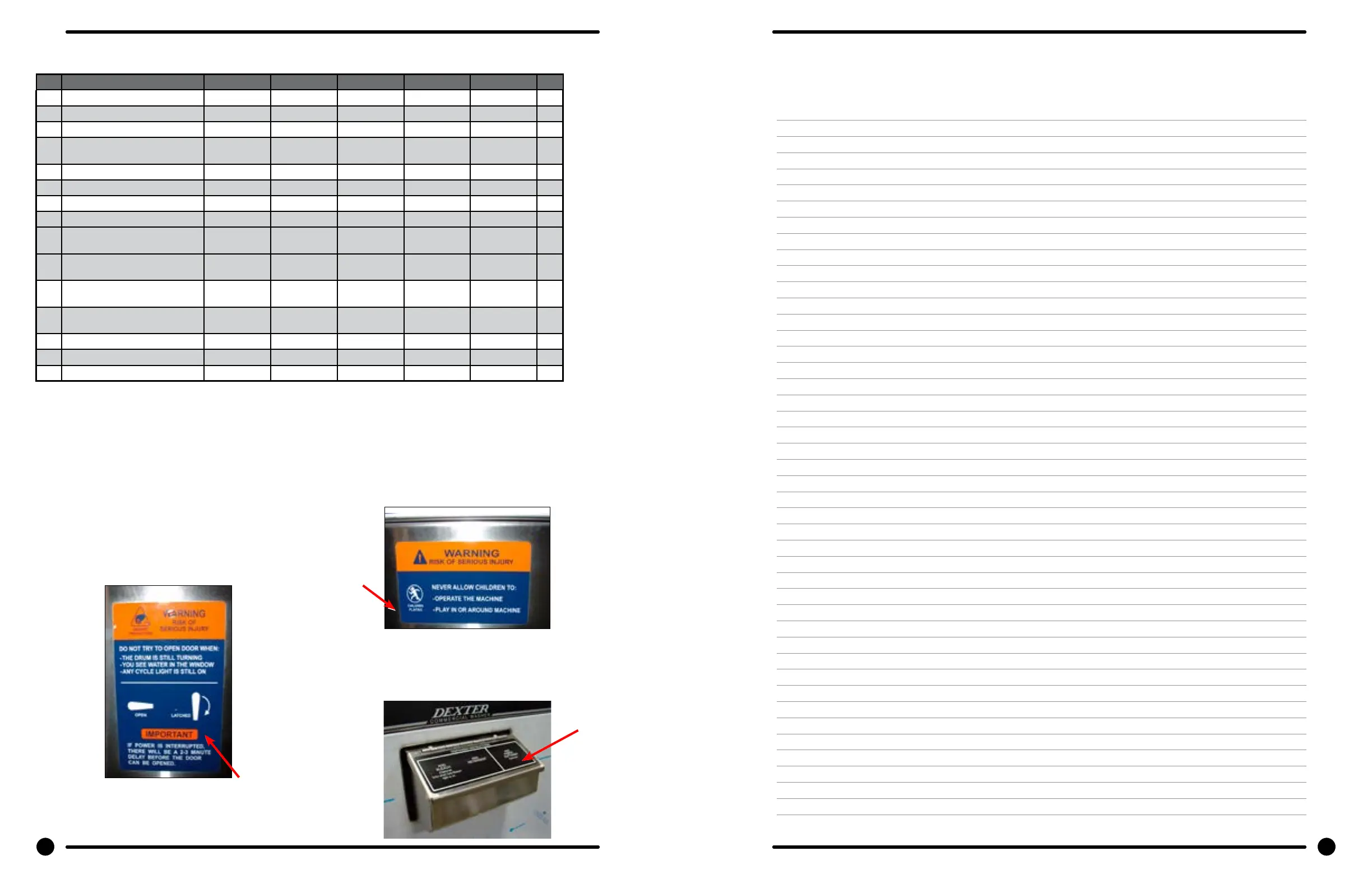

Labels and Diagrams All WCVD Models
Key Description T750 T-900 T950 T-1200 T1450 QTY
* Booklet Owners 8514-160-001 8514 -161-001 8514-161- 001 8514-162- 001 8514-206-001 1
* Wiring Diagram, Coin 9506-366-001 9506-019-001 9506-487-001 9506-049-001 9506-489-001 1
Wiring Schematic, 9506-365-001 9506-020-001 9506-050-001 1
* Transient Voltage Surge Sup-
pressor Infomational
8507-330-001 8507-330-001 8507-330-001 8507-330-001 8507-330-001 1
* Instructions Spin Direction 8507-275-001 8507-275-001 8507-275-001 8507-275-001 8507-275-001 1
* Label High Voltage Warning 8502-614-004 8502-614-004 8502-614-004 8502-614-004 8502-614-004 1
* Label Fusing & Installation 8502-619-003 8502-619-003 8502-619-003 8502-619-003 8502-619-003 1
* Label Quality 8511-001-002 8511-001-002 8511-001-002 8511-001-002 8511-001-002 1
1 Label Warning Risk of Injury
(Blue)
8502-722-002 8502-722-002 8502-722-002 1
1 Label Warning Risk of Injury
(Black)
8502-741-001 8502-741-001 8502-741- 001 8502-741-0 01 8502-741-001 1
2 Label Warning Door Opening
(Blue)
8502-723- 001 8502-723-0 01 8502-723-001 1
2 Label Warning Door Opening
(Black)
8502-742-001 8502-742-001 8502-742-001 8502-742-001 8502-742-001
3 Label Dispenser (Blue) 8502-687-001 8502-687-001 8502-687-001 1
3 Label Dispenser (Black) 8502-745-0 01 8502-745- 001 8502-745-0 01 8502-745- 001 8502-745-001 1
Label, Injector Assembly 8502-666-001 8502-666-001 8502-666-001 8502-666-001 8502-666-001 1
122 123
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
122 123
Notes
3
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents

Table of Contents
