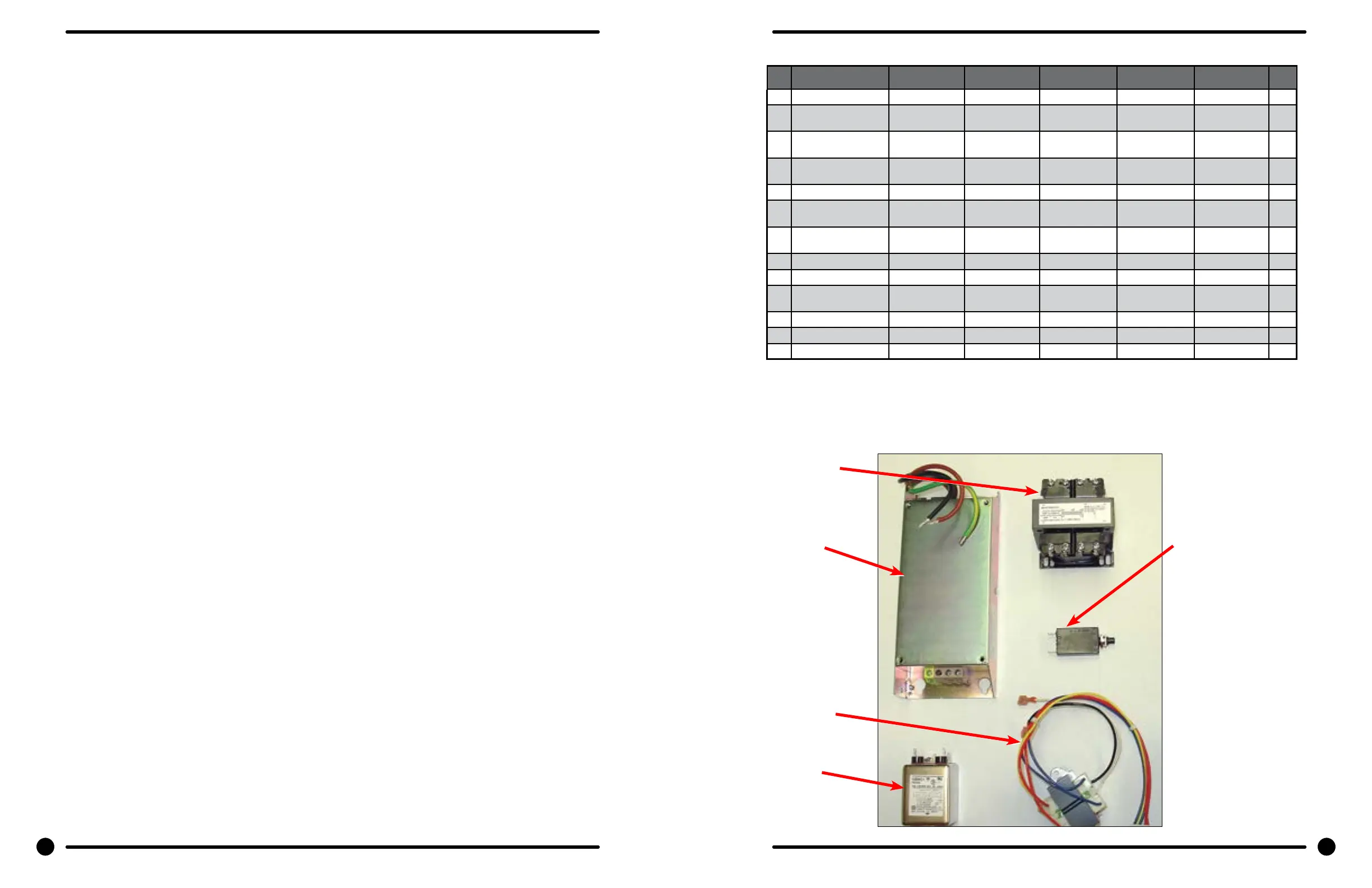

Transformer, Electrical Filter -59 models
Key
Component T-750 T-90 0 T-950 T-120 0 T-1450
QTY
1 Circuit Breaker 5198-211-002 5198-211-002 5198-211-002 1
* Harness, Power Ter-
minal block
9627-865-003 9627-865-003 9627-865-003 1
* Assembly, Control
Trough
9857-159- 006 9857-154-0 06 9857-160-006 1
* Instructions, Trans-
former Connect
8507-230-003 8507-230-003 8507-230-003 1
2 Control Transformer 8711-008-002 8711-008-002 8711-008-002 1
3 Transformer, Step
Down
8711-009-003 8711-009-003 8711-009-003 1
* Bracket Terminal/Fil-
ter Mounting
9029-170-001 9029-170-001 9029-170-001 1
* Strip, Marker-Injection 9558-028-002 9558-028-002 9558-028-002 1
4 EMI Line Filter 9183-031-003 9183-031-003 9183-031-004 1
5 EMI Filter 1 ph, 24
Amp
9183-045-001 9183-045-001 9183-045-001 1
* Wiring Schematic 9506-304-001 9506-281-001 9506-285-001 1
* Wiring Diagram 9506-305-001 9506-282-001 9506-286-001 1
* Owners Booklet 8514-179- 001 8514-181-001 8514-184-001 1
124 125
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
124 125
Section :9
Parts 50Hz
Models:
Parts in this section used only in these
models. All other parts are same as
standard 60 Hz pages.
Wiring Diagrams & Schematics
1
3
2
5
4
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents

Table of Contents
