Dexter Laundry WCVD Series User Manual

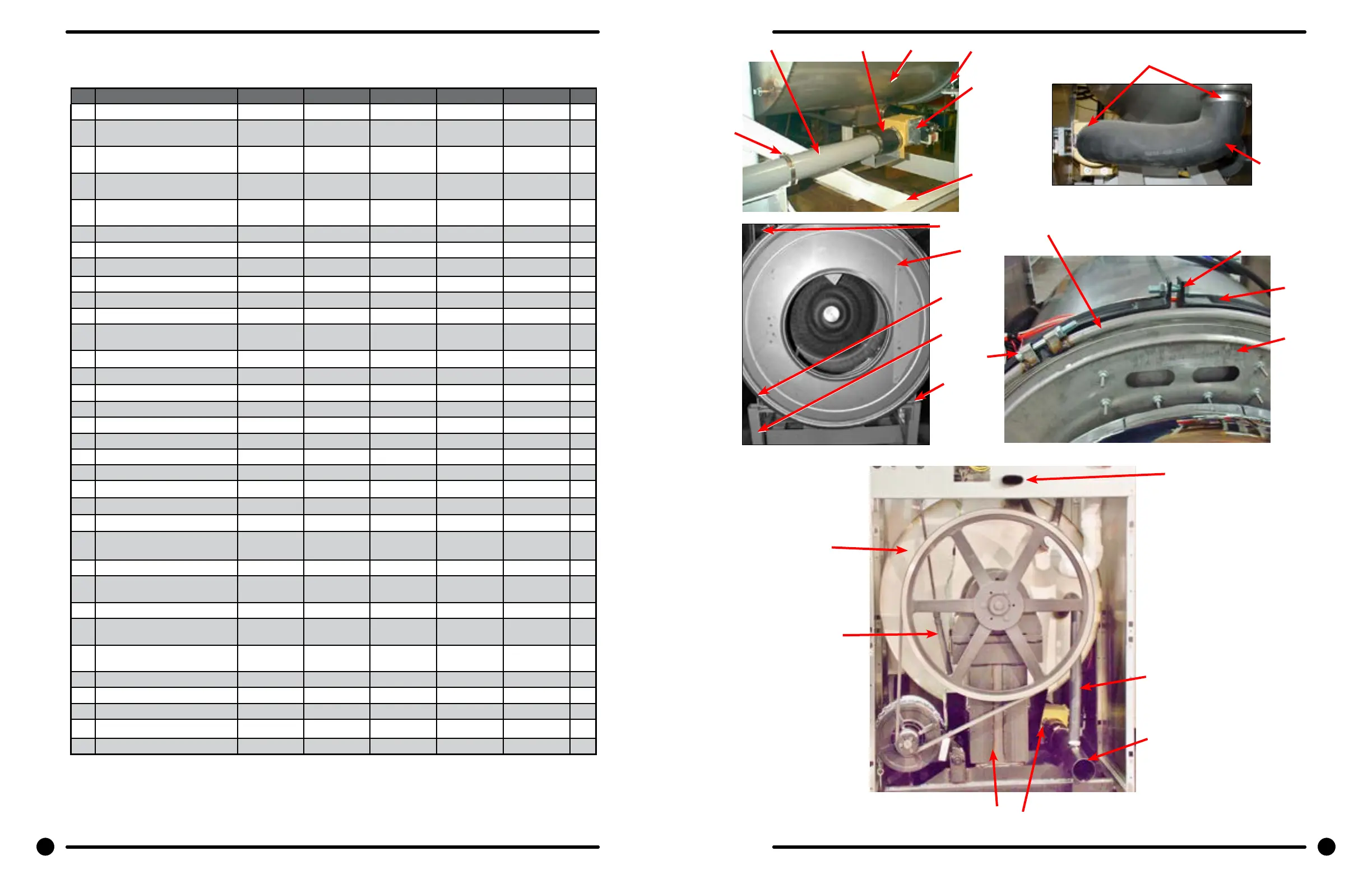

Chassis and Drain Part # by Model
Key Description T750 T-900 T950 T-1200 T1450 QTY
1 Base Assy,Frame 9945-112-002 9945-155-002 9945-155-002 9945-125-002 9945-133-002 1
2 Outer Tub Assy Before Serial
#535659
9930-148-001 9930-147-001 9930-150-001 1
2 Outer Tub Assy After Serial
#535659
9930-157-001 9930-157-001 9930-155-001 1
* Tub & Cylinder Assy Before
Serial #535659
9869-025-001 9869-023-003 9869-022-001 1
* Tub & Cylinder Assy After
Serial #535659
9869-027-003 9869-027-003 9869-026-002 1
3 Tub Front Before Serial #535659 9974-011-001 9974-011-001 1
3 Tub Front After Serial #535659 9974-011-001 9974-011-001 9974-011-001 9974-012-001 1
* Gasket, Tub Front 9206-421-002 9206-421-002 9206-421-002 9206-421-002 9206-421-002 1
4 Ring Assy, Tub Mtg-Front Clamp 9950-055-001 9950-055-001 9950-055-001 9950-055-001 9950-061-001 1
5 Bolt, Top Front Ring 3/8”-16 x 3” 9545-029-009 9545-029-009 9545-029-009 9545-029-009 9545-029-009 1
6 Nut WCAD 3/8”-16 8640-415-001 8640-415-001 8640-415-001 8640-415-001 8640-415-001 1
7 Ring Assy.Clamp Tub Mtg. to
Frame
9950-053-002 9950-053-002 9950-053-002 9950-053-002 1
8 Bolt, 1/2” -13 x 2” Ring 9545-017-013 9545-017-013 9545-017-013 9545-017-013 1
9 Nut, 1/2” -13 Ring 8640-417-005 8640-417-005 8640-417-005 8640-417-005 1
10 Bolt, 1/2” -13 x 2” Rings to Base 9545-017-013 9545-017-013 9545-017-013 9545-017-013 9545-017-013 2
11 Nut, Wizloc 1/2” x 13 8640-417-005 8640-417-005 8640-417-005 8640-417-005 8640-417-005 2
12 Washer, Flat 1/2” 8641-581-026 8641-581-026 8641-581-026 8641-581-026 8641-581-026 2
13 Hose, Tub to Drain Valve 9242-456-001 9242-459-001 9242-459-001 9242-459-001 9242-459-001 1
14 Clamp, Hose (Tub to Drain Valve) 8654 -117-014 8654-117-014 8654-117-014 8654-117- 014 8654-117-014 2
15 Valve, Drain 9379-187- 004 9379-187-004 9379-187- 004 9379 -187-00 4 9379-187-004 1
* Screw, Valve to Base 1/4ABx3/4 9545-030-002 9545-030-002 9545-030-002 9545-030-002 9545-030-002 2
* Washer, Flat 1/4 8641-581-017 8641-581-017 8641-581-017 8641-581-017 8641-581-018 2
16 Hose, Drain Valve to Tube 9242-457-001 9242-457-001 9242-457-001 9242-457-001 9242-457-002 1
* Clamp, Hose (Drain Valve to
Tube
8654 -117-014 8654-117-014 8654-117-014 8654-117- 014 8654-117-014 2
17 Tube Assy, Drain 9915-124 -002 9915-120-004 9915-120-004 9915-126-002 9915-129-002 1
18 Clamp, Hose (Tube to Frame
Bracket)
8654 -117-014 8654-117-014 8654-117-014 8654-117- 014 8654-117-014 1
* Bracket, Drain Tube 9029-162-002 9029-162-002 1
* Screw Tube (Bracket to Base
1/4Bx3/4)
9545-030-002 9545-030-002 9545-030-002 9545-030-002 4
19 Hose, Overow Tub To Drain
Tube
9242-449-003 9242-449-003 9242-449-003 9242-449-003 9242-449-005 1
* Clamp, Hose 8654-117-018 8654-117-018 8654 -117-018 8654-117- 018 8654 -117-018 2
20 Tube, Suds overow 9242-463-004 9242-463-004 9242-463-004 9242-463-004 9242-463-006 1
* Clamp, Hose 8654-117-0 08 8654-117- 008 8654-117-0 08 8654 -117-008 8654-117-008 2
21 Hose, Pressure switch 9242-175-0 07 9242-175-007 9242-175- 007 9242-175-004 9242-175-0 04 1
Clamp, Oveow Hose 8654-117-015 8654-117-015 8654 -117-015 8654-117- 015 8654 -117-015 1
116 117
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
116 117
21
5,6
1
16
4
2
15
7
8,9
3
18
1
14
15
13
17
10,11,12
5,6
4
19
20
1
2
4
3
17
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Control
Panel
Electrical
Components
Water Inlet &
Rear Channel
Chassis
& Drain
Loading
Door
Door
Lock
Cylinder, Seals,
& Bearings
Rear
View
Cabinet &
Front Panel
Wiring
Harnesses
Kits &
Assemblies
