Dexter Laundry WCVD Series User Manual

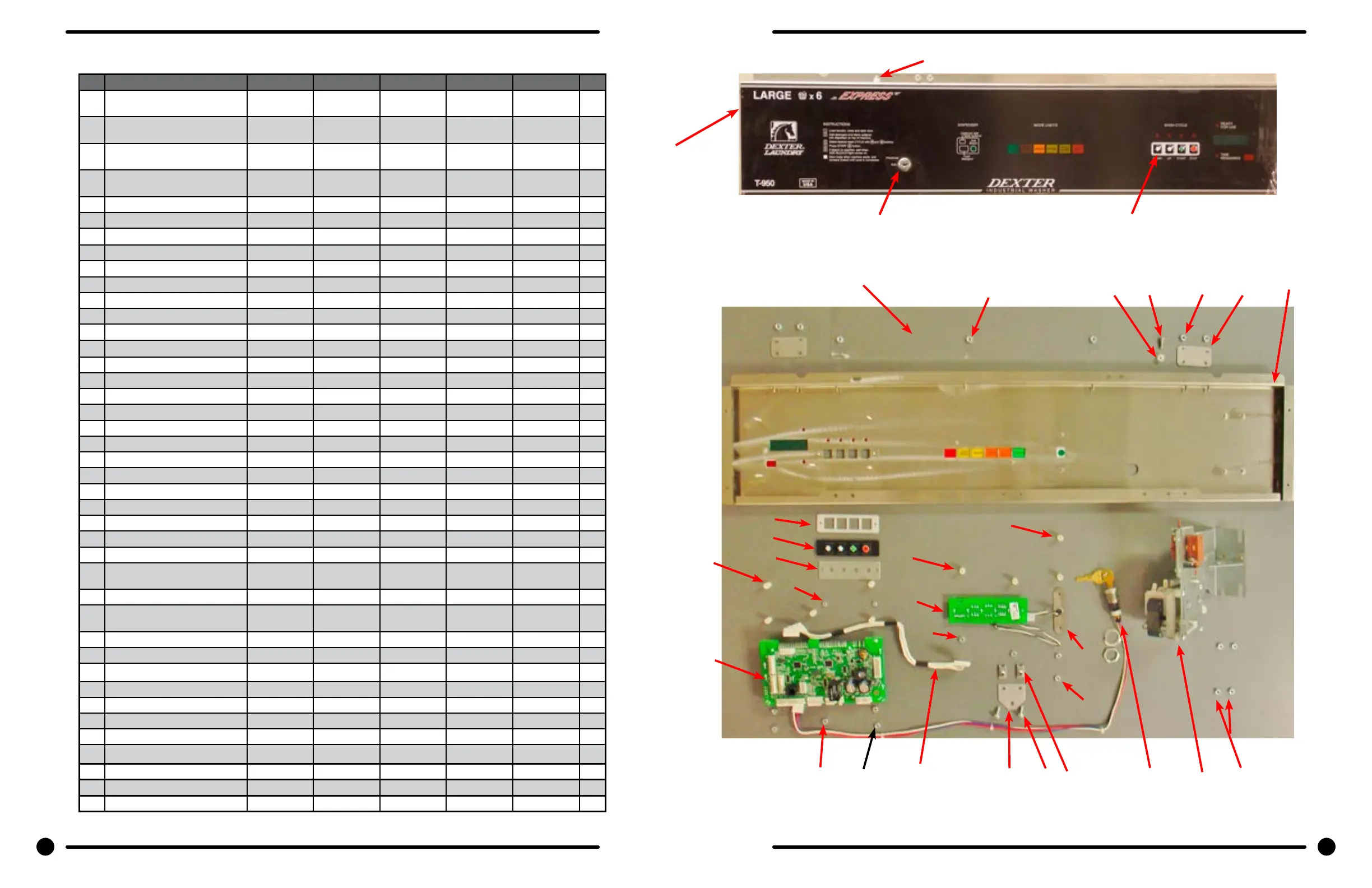

Control Panel Part # by Model
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Panel Control Assembly(panel
only) After Serial #530673
9989-480-001 9989-480-001 9989-480-001 9989-480-001 9989-530-001 1
2 Nameplate,Control Panel (one
piece) Blue
9412-163-001 9412-119-001 9412-134-001 1
2 Nameplate,Control Panel (one
piece) Black
9412-185-001 9412-186-001 9412-187-001 9 412-189 -001 9412-195-0 01 1
* Screw-Hxwshrhdundct #10Bx
1/2”(Control Panel To side Panel)
9545-008-026 9545-008-026 9545-008-026 9545-008-026 9545-008-026 4
Top Panel
3 Plastic Shield over main PCB 9550-184-001 9550-184-001 9550-184-001 9550-184-001 9550-184-001 1
4 Nut Hexkeps #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 3
5 Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 9545-008-023 9545-008-023 1
6 Locator Panel 9355-001-001 9355-001-001 9355-001-001 9355-001-001 1
7 Plate -Latch, Top 9452-625-001 9452-625-001 9452-625-001 9452-625-001 2
8 Nut Hexkeps #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 4
9 Spacer Pushbutton (Micro) 9538-192-001 9538-192-001 9538-192-001 9538-192-001 9538-192-0 01 1
10 Pushbutton Control (OPL), Blue 9035-060-002 9035-060-002 9035-060-002 9035-060-002 9035-060-002 1
10 Pushbutton Control (OPL), Black 9035-062-003 9035-062-003 9035-062-003 9035-062-003 9035-062-003 1
11 Retainer Pushbutton (Micro) 9486-150-001 9486-150-001 9486-150-001 9486-150-001 9486-150-001 1
12 Nut Hexelasticstop #4-40 8640-424-002 8640-424-002 8640-424-002 8640-424-002 8640-424-002 2
13 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157-018 9538-157-018 9538-157- 018 5
14 PCB assembly Control /Display 9473-004-009 9473-004-009 9473-004-009 9473-004-009 9473-004-009 1
15 Nut Elasticstop #6-32 8640-411-002 8640-411-002 8640-411-002 8640-411-002 8640-411-002 4
16 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 1
17 Spacer Plastic #6x9/16 9538-157-018 9538-157-018 9538-157-018 9538-157-018 9538-157-018 2
18 PCB assembly Mode lights 9473-005-001 9473-005-001 9473-005-001 9473-005-001 9473-005-001 1
19 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
20 Harness-LED PCB, P3 9627-797-001 9627-797-001 9627-797-001 9627-797-001 9627-797-001 1
21 Spacer Plastic #6x9/16 9538-157- 018 9538-157-018 9538-157- 018 9538-157-018 9538-157-018 2
22 Light, LED,ADD BLEACH Asembly 9794-001-001 9794-001-001 9794-001-001 9794-001-001 9794-001-001 1
23 Nut Hexkeps #6-32 8640-411-003 8640-411-003 8640-411-003 8640-411-003 8640-411-003 2
24 Lock-Run/Program, w/Harness &
Key, P2
8650-027-001 8650-027-001 8650-027-001 8650-027-001 8650-027-001 1
* Key (N561) 6292-006-013 6292-006-013 6292-006-013 6292-006-013 6292-006-013 AR
25 Actuator Assy-Door Locking,
120V
9892-014-001 9892-014-001 9892-014-001 9892-014-001 9892-014-001 1
26 Nut Hexkeps #8-32 8640-412-005 8640-412-005 8640-412-005 8640-412-005 8640-412-005 4
27 Nut-Spring 8640-399-008 8640-399-008 8640-399-008 8640-399-008 8640-399-008 2
* Screw FillHDCR 10Bx1/2” Guide 9545-008-023
28 Bracket-Retainer, Front Panel 9029 -191-001 9029-191- 001 9029 -191-001 9029-191-001 1
29 Screw FillHDCR 10Bx1/2” Guide 9545-008-023 9545-008-023 9545-008-023 9545-008-023 2
* Harness-Optional relay, P23-P15 9627-798-001 9627-798-001 9627-798-001 9627-798-001 9627-798-001 1
* Harness-PCB to Relay, P8-P16 9627-794- 001 9627-794- 001 9627-794-001 9627-79 4-0 01 9627-794 -001 1
* Harness-Door Lock, P4 9627-791-005 9627-791-005 9627-791-005 9627-791-005 9627-791-0 05 1
* Harness-PCB to Enable, P20-P21 9627-793-001 9627-793-0 01 9627-793-001 9627-793-001 9627-793- 001 1
* Transformer-120V/24/5.3, P7 8711-009-001 8711-009-001 8711-009-001 8711-009-001 8711-009-001 1
* Harness-Pressure Switch, P5 9627-807-001 9627-807-001 9627-807-001 9627-807-001 9627-900-001 1
120 121
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
120 121
8
3
2
1
7
10
12
11
9
16
4
21
20
19
18
17
29
15
14
13
6
5
27 26
25
24
23
22
28
24 10
5, 6
Machine
Mounting
Installation
& Operation
Programming
Trouble-
shooting
Machine
Service
Electrical
Wiring
Parts
Data
50Hz
Parts
Maintenance
Service Elec.
Compnents
Accessories
Control
Panel
Electrical
Components
Water Inlet &
Rear Channel
Chassis
& Drain
Loading
Door
Door
Lock
Cylinder, Seals,
& Bearings
Rear
View
Cabinet &
Front Panel
Wiring
Harnesses
Kits &
Assemblies
