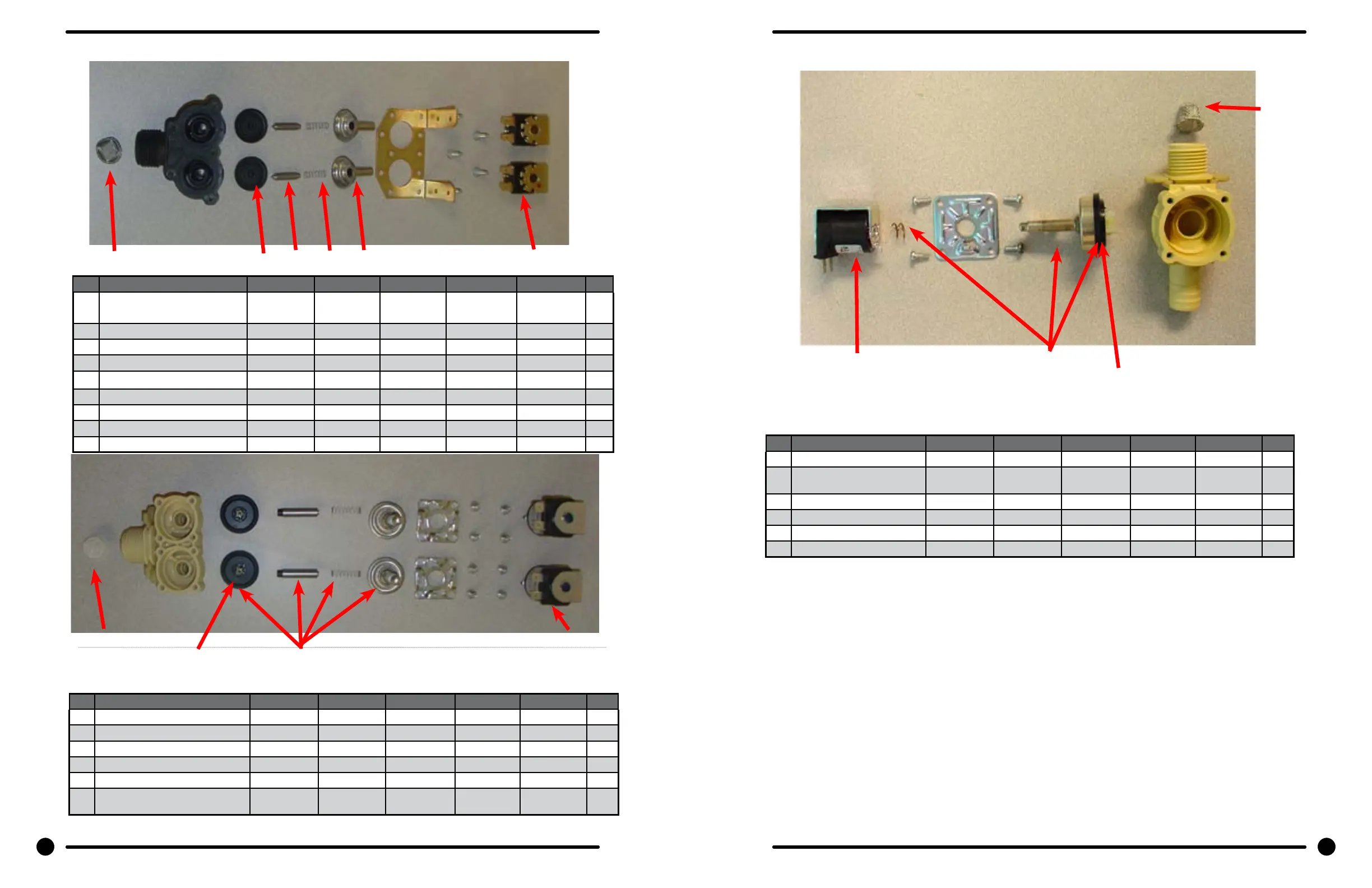

Water Inlet Valve Breakdown Part # by Model
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Dual Coil Water Valve Mueller 9379-192-001 9379-192-001 9379-192-001 9379-192-001 9379-192-001 1
7 Valve Water Body Complete(no coil) 9379-192-002 9379-192-002 9379-192-002 9379-192-002 9379-192-002 1
8 Diaphragm Mueller 9118-054-001 9118-054-001 9118-054-001 9118-054-001 9118-054-001 2
9 Filter Mueller 9183-046-001 9183-046-001 9183-046-001 9183-046-001 9183-046-001 2
10 Coil Mueller 9089-051-001 9089-051-001 9089-051-001 9089-051-001 9089-051-001 2
11 Diaphragm Assembly Mueller
Includes
9785-001-001 9785-001-001 9785-001-001 9785-001-001 9785-001-001 2
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Valve, Water Inlet (includes 1 thru
6) - Invensys
9379-183-012 9379-183-012 9379-183-012 9379-183-012 9379-183-012 2
1 Screen, Inlet end of valve 9555-056-001 9555-056-001 9555-056-001 9555-056-001 9555-056-001 2
2 Coil Assy., 120 V Invensys 9089-017-001 9089-017-001 9089-017-001 9089-017-001 9089-017-001 2
3 Diaphragm Invensys (EPDM NSF) 9118-049-003 9118-049-003 9118-049-003 9118-049-003 9118-049-003 2
4 Guide, Solenoid Invensys 9211-021-002 9211-021-002 9211-021-002 9211-021-002 9211-021-002 2
5 Armature Invensys 9015-008-001 9015-008-001 9015-008-001 9015-008-001 9015-008-001 2
6 Spring, Armature Invensys 9534-298-001 9534-298-001 9534-298-001 9534-298-001 9534-298-001 2
* Optional Diaphran (Viaton) 9118-049-002 9118-049-002 9118-049-002 9118-049-002 9118-049-002 2
* Wiring Harness 9794-001-001 9794-001-001 1
Optional Water Valve
1
11
65
3
9
8
10
24
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Single Coil Water Valve Mueller 9379-194-001 9379-194- 001 1
1 Valve Water Body Complete
(no coil)
9379-194-002 9379-194-002 1
2 Diaphragm Mueller 9118-055-001 9118-055-001 1
3 Filter Mueller 9183-046-001 9183-046-001 1
4 Coil Mueller 9089-051-001 9089-051-001 1
54
3
2
112 113
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
