Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Solenoid Ass’y, Door Locking
(includes 23 thru 32)
9922-011-001 9922-011-001 9922-011-001 1
2 Bracket, (Door Locking Sole-
noid)
9029-073-001 9029-073-001 9029-073-001 1
3 Bracket Ass’y, Solenoid Slide 9985-169-001 9985-169-001 9985-169-001 1
4 Solenoid 120V 60 hz 9536-074-001 9536-074-001 9536-074-001 1
5 Screw, Solenoid Mtg 9545-008-001 9545-008-001 9545-008-001 4
6 Stop, Door Lock Solenoid 9540-033-002 9540-036-001 9540-033-002 1
7 Screw, Shoulder 9545-061-001 1
* Nut, Keps #6 8640-411-002 8640-411-002 8640-411-002 1
9 Thermoactuator 120 V 9586-001-001 9586-001-001 9586-001-001 2
10 Screw #6 x 5/16” 9545-031-011 9545-031-011 9545-031-011 4
11 Spacer, Plastic 9538-157-004 9538-157-004 9538-157-004 1
12 Spacer, Metal 9538-166-004 9538-166-004 9538-166-004 1
13 Screw, Cross Recessed 9545-010-001 9545-010-001 9545-010-001 1
14 Nut, Keps #8 8640-412-005 8640-412-005 8640-412-005 1
* Nut, Sol. Brkt. to Control Panel 8640-412-005 8640-412-005 8640-412-005 3
* Rod, Pull 9497-225-007 9497-225-007 9497-225-009 1

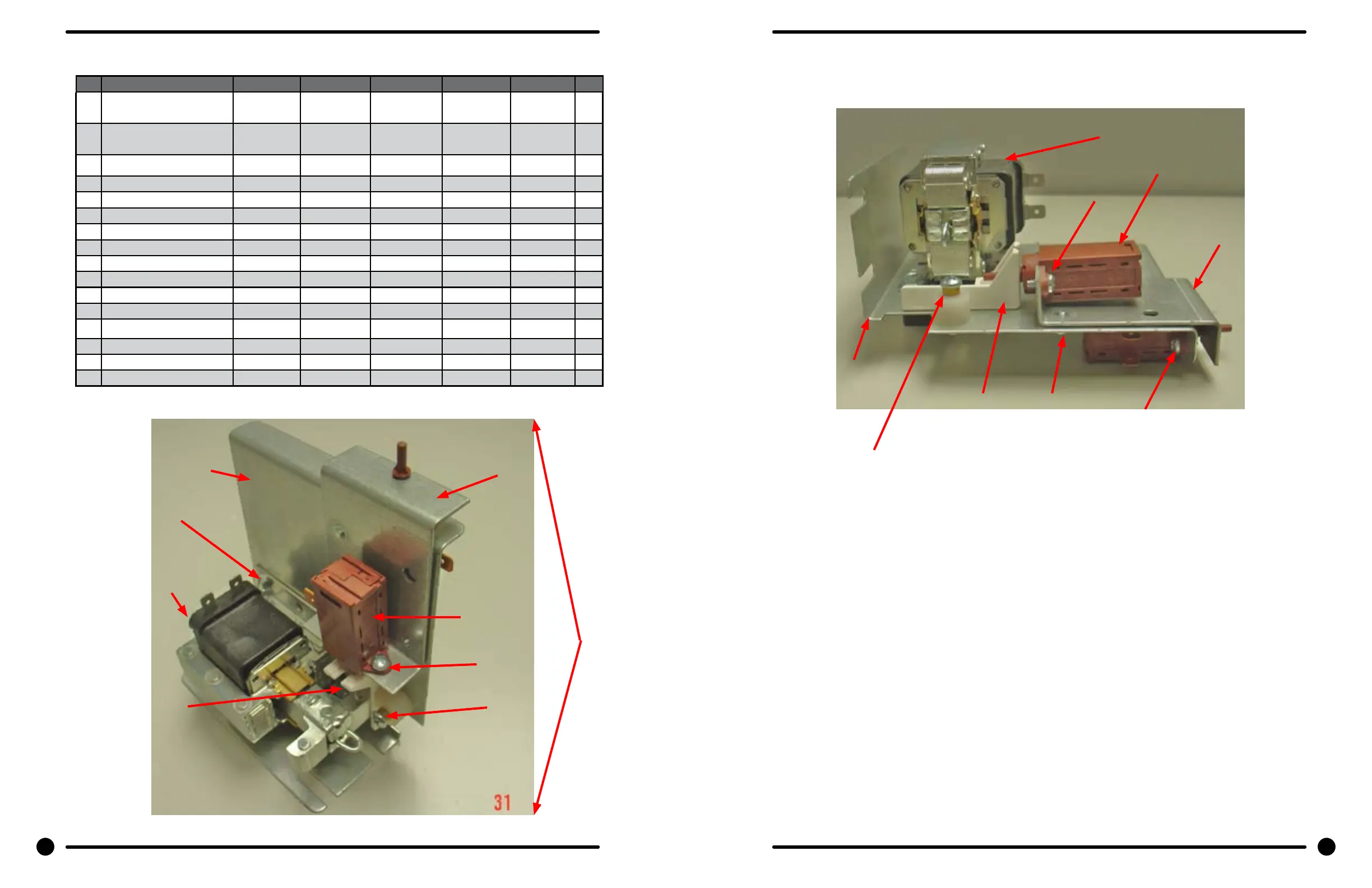

Original Door Lock Solenoid Assembly
3
7
5
4
9
10
1
2
6
9
4
10
11, 12, 13
3
10
5
6
2
Original Door Lock Solenoid Assembly
104 105
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
104 105
Cylinder, Seals,
& Bearings
Water Inlet &
Rear Channel
