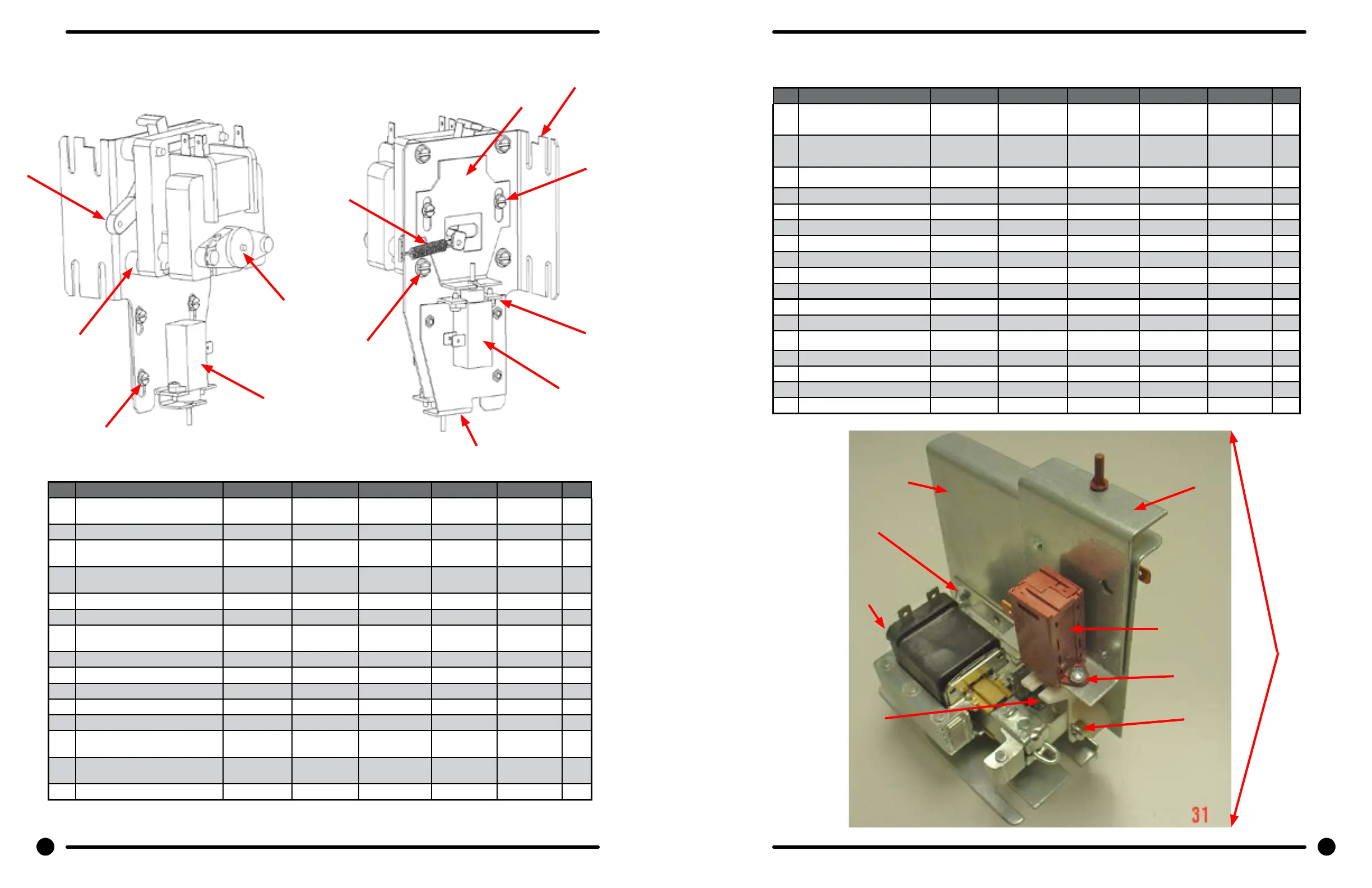

Gear Motor Door Lock Assembly 24V AC
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
* Actuator Assembly (Includes 1-10,
Rod NOT included)
9892-015-002 9892-015-002 9892-015-002 1
11 Screw hxwshdsl, 10-24 - 1.25f, ctd 9545-046-007 9545-046-007 9545-046-007 4
10 Cross Recessed PAn Hd Tapping
screw
9545-031-011 9545-031-011 9545-031-011 4
9 Screw -Hxwshrhdslsems, 6-32 x
3/16
9545-044-003 9545-044-003 9545-044-003 6
8 Motor & Gear Assembly 24VAC 9914-137-014 9914-137-014 9914-137-014 1
7 Spring - Extension 9534-350-001 9534-350-001 9534-350-001 1
6 Thermoactuator - Door Lock
Relay 24VAC
9586-001-003 9586-001-003 9586-001-003 2
5 Arm - Door Lock 9001-063-001 9001-063-001 9001-063-001 1
4 Spacer, Plastic 9538-157-021 9538-157- 021 9538-157- 021 4
3 Bracket Slide Lock 9029-204-001 9029-204-001 9029-204-001 1
2 Bracket Assy, Slide - Unlock 9985-189-001 9985-189-001 9985-189-001 1
1 Bracket Assy, Slide Lock Actuator 9985-190-001 9985-190-001 9985-190-001 1
* Rod, Door Lock Before Serial
#535659
9497-225-013 9497-225-013 1
* Rod, Door Lock After Serial
#535659
9497-225-015 9497-225-015 1
* Spacer, Gear Motor 9538-187-001 9538-187-001 9538-187-001 1
1
2
3
9
10
6
11
7
8
5
4
9
6
Key Description T-750 T-900 T-950 T-1200 T-1450 QTY
1 Solenoid Ass’y, Door Locking
(includes 23 thru 32)
9922-011-001 9922-011-001 9922-011-001 1
2 Bracket, (Door Locking Sole-
noid)
9029-073-001 9029-073-001 9029-073-001 1
3 Bracket Ass’y, Solenoid Slide 9985-169-001 9985-169-001 9985-169-001 1
4 Solenoid 24V 50 Hz 9536-082-001 9536-082-001 9536-082-001 1
5 Screw, Solenoid Mtg 9545-008-001 9545-008-001 9545-008-001 4
6 Stop, Door Lock Solenoid 9540-033-002 9540-036-001 9540-033-002 1
7 Screw, Shoulder 9545-061-001 1
* Nut, Keps #6 8640-411-002 8640-411-002 8640-411-002 1
9 Thermoactuator 24V 50Hz 9586-001-003 9586-001-003 9586-001-003 2
10 Screw #6 x 5/16” 9545-031-011 9545-031-011 9545-031-011 4
11 Spacer, Plastic 9538-157-004 9538-157-004 9538-157-004 1
12 Spacer, Metal 9538-166-004 9538-166-004 9538-166-004 1
13 Screw, Cross Recessed 9545-010-001 9545-010-001 9545-010-001 1
14 Nut, Keps #8 8640-412-005 8640-412-005 8640-412-005 1
* Nut, Sol. Brkt. to Control Panel 8640-412-005 8640-412-005 8640-412-005 3
* Rod, Pull 9497-225-007 9497-225-007 9497-225-009 1
Original Door Lock Solenoid Assembly
3
7
5
4
9
10
1
2
6
128 129
Part # 8533-075-001 6/22 Part # 8533-075-001 6/22
128 129
To Next Page
