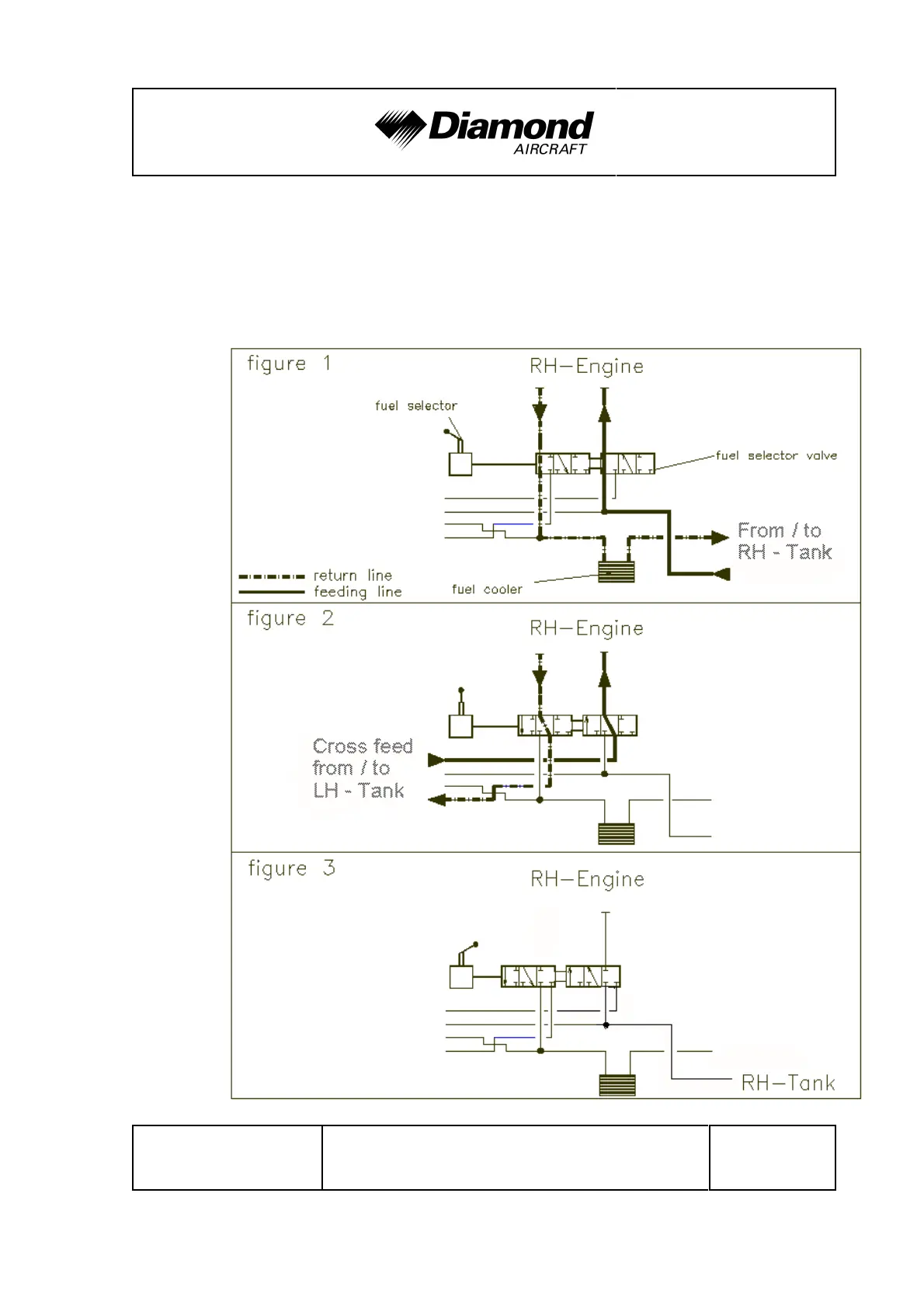

Scheme of the Fuel Selector Valve Positions:
Possible operating modes of the three fuel selector valve positions are outlined
systematically in the following scheme. The Figures below show fuel flows for the
RH engine (fuel flows LH are alike):
Figure 1:
Normal
Operation
Figure 2:
CROSS-
FEED
Operation
Figure 3:
Shut-off
Position
