Airplane Description DA 42 AFM
Page 7 - 42 Rev. 8 15-Dec-2017 Doc. No. 7.01.05-E
With the LH fuel selector valve in CROSSFEED position, the fuel from the RH tank is
transferred to the LH engine. Depending on the position of the RH fuel selector valve,
the RH tank then feeds both engines (as shown in Figure 4 below) or only the LH engine,
when the fuel selector valve of the RH engine is in shut-off position (as shown in Figure 5
below).

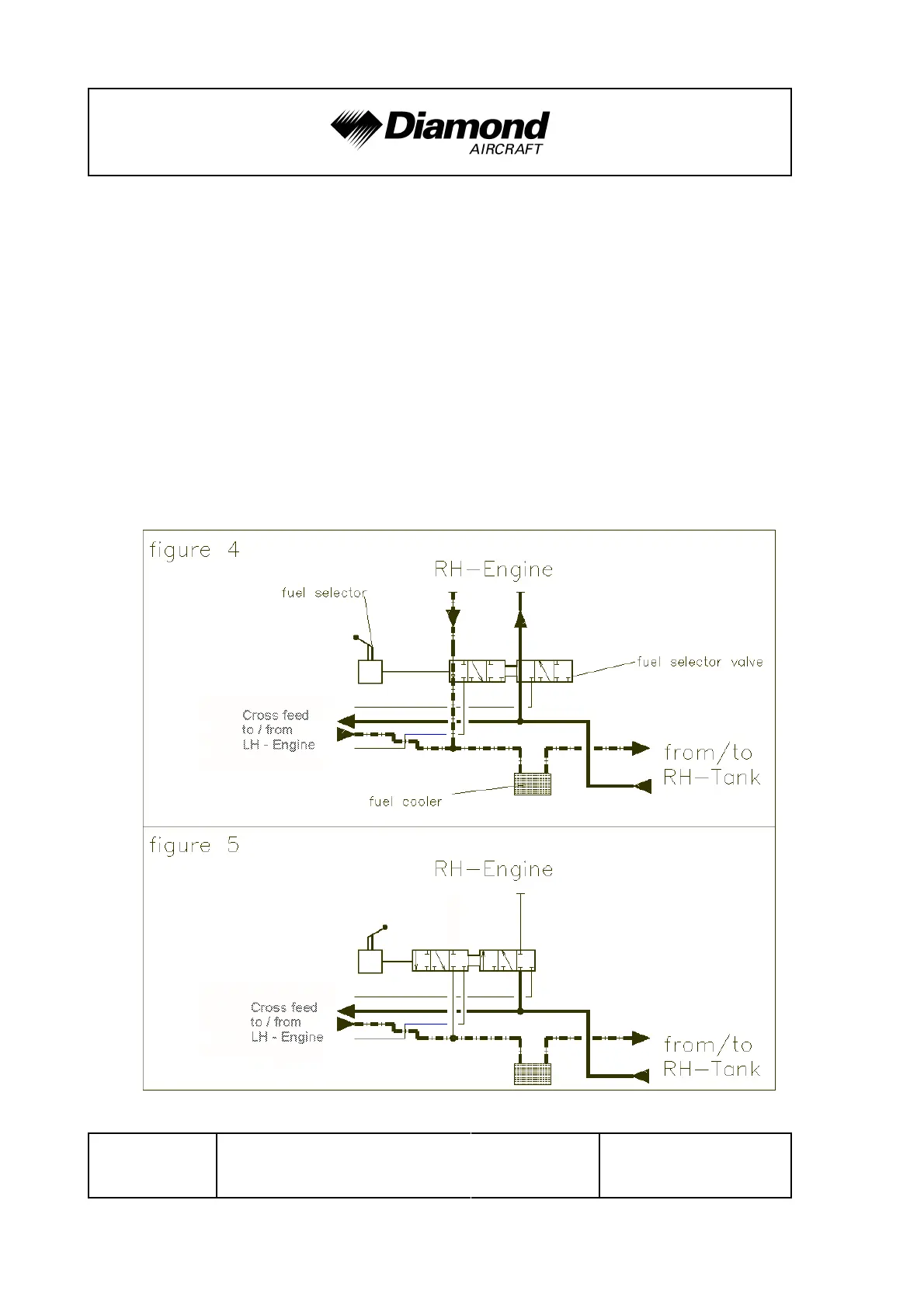

Figure 4: Fuel selector valve RH normal operation position, fuel selector
valve LH CROSSFEED position
Figure 5: Fuel selector RH valve shut-off position, fuel selector valve LH
CROSSFEED position
