Digi ConnectCore Series User Manual

ConnectCore for i.MX51
©2011DigiInternational,Inc. 103
The PoE Module

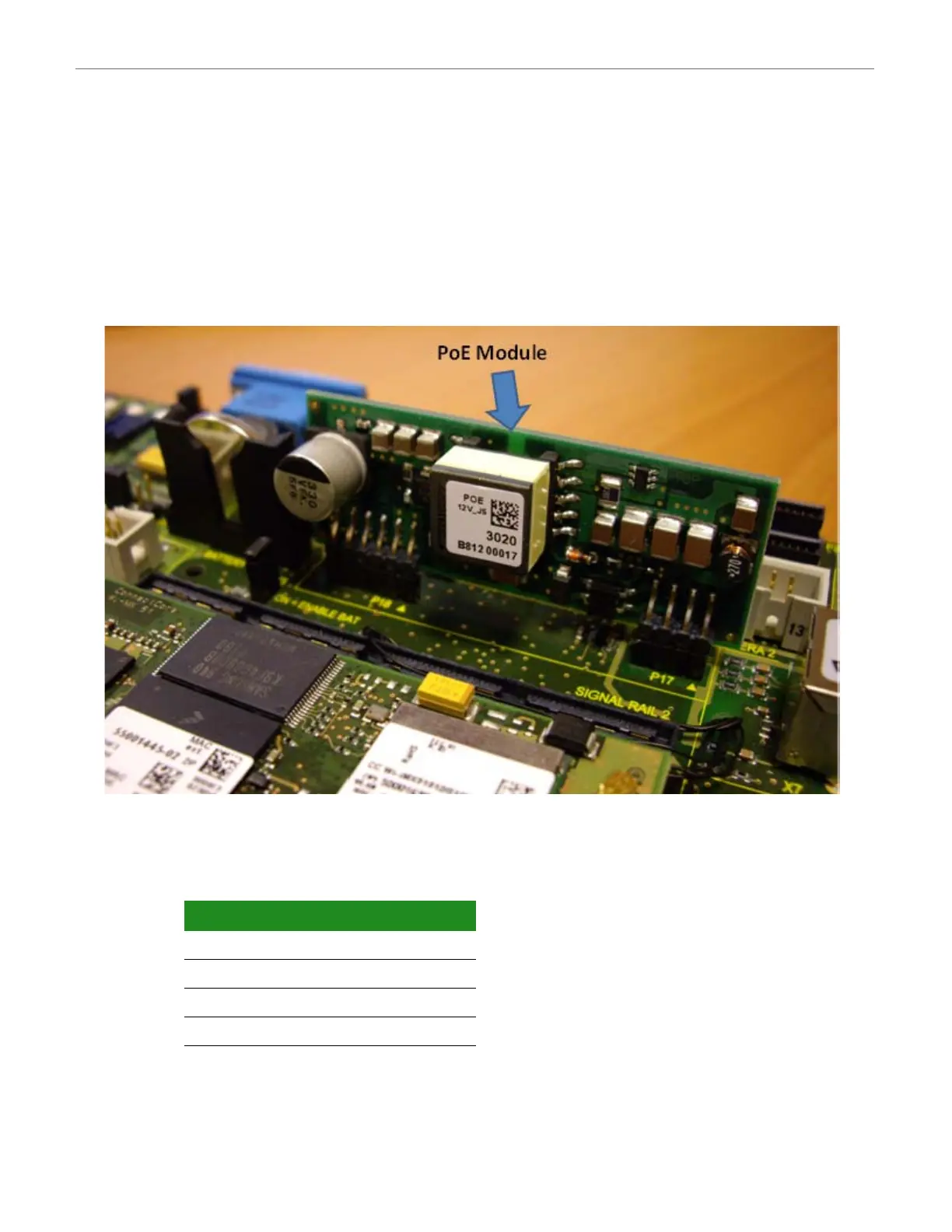

Plug in the PoE module at a right angle to the development board, as shown in the picture
below.
Note: the PoE module is part of the optional Digi 802.3af application kit (sold separately,
Digi P/N DG-ACC-POE).
PoE Connector (power in), P17
The table below provides the pinout of the PoE input connector:
Pin Signal
1POE_TX_CT
2POE_RX_CT
3 POE_RJ45_4/5
4 POE_RJ45_7/8
