LCD Interfaces
The development board provides two 2x40 pin, 1.27mm connectors for accessing a Digi-
provided LCD application boards (CC-ACC0LCDW-70) or a user defined LCD application board.
P1 : corresponds to i.MX51 display interface 1
P2 : corresponds to i.MX51 display interface 2

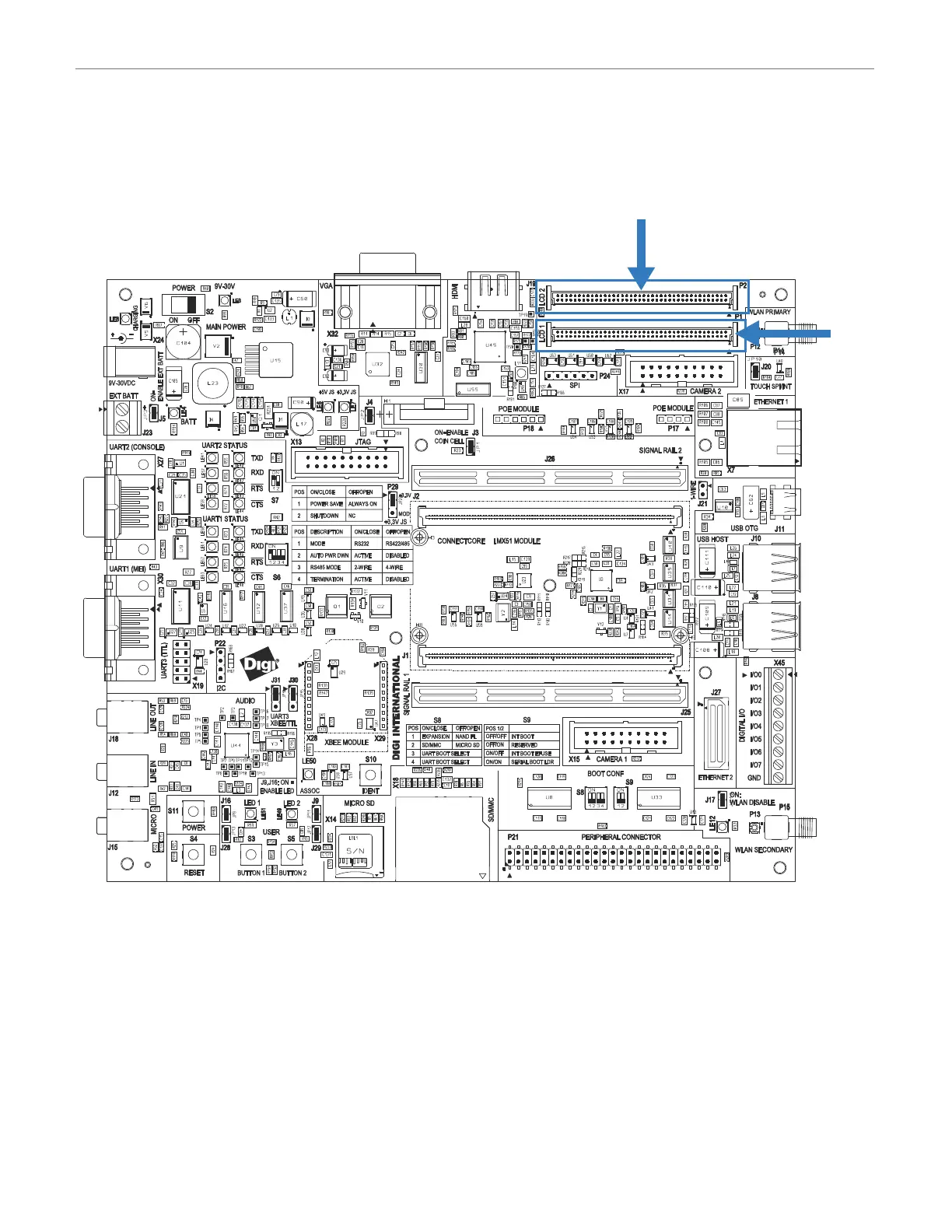

LCD2 Connector, P2
LCD1
Connector, P1
