ConnectCore for i.MX51
©2011DigiInternational,Inc. 62

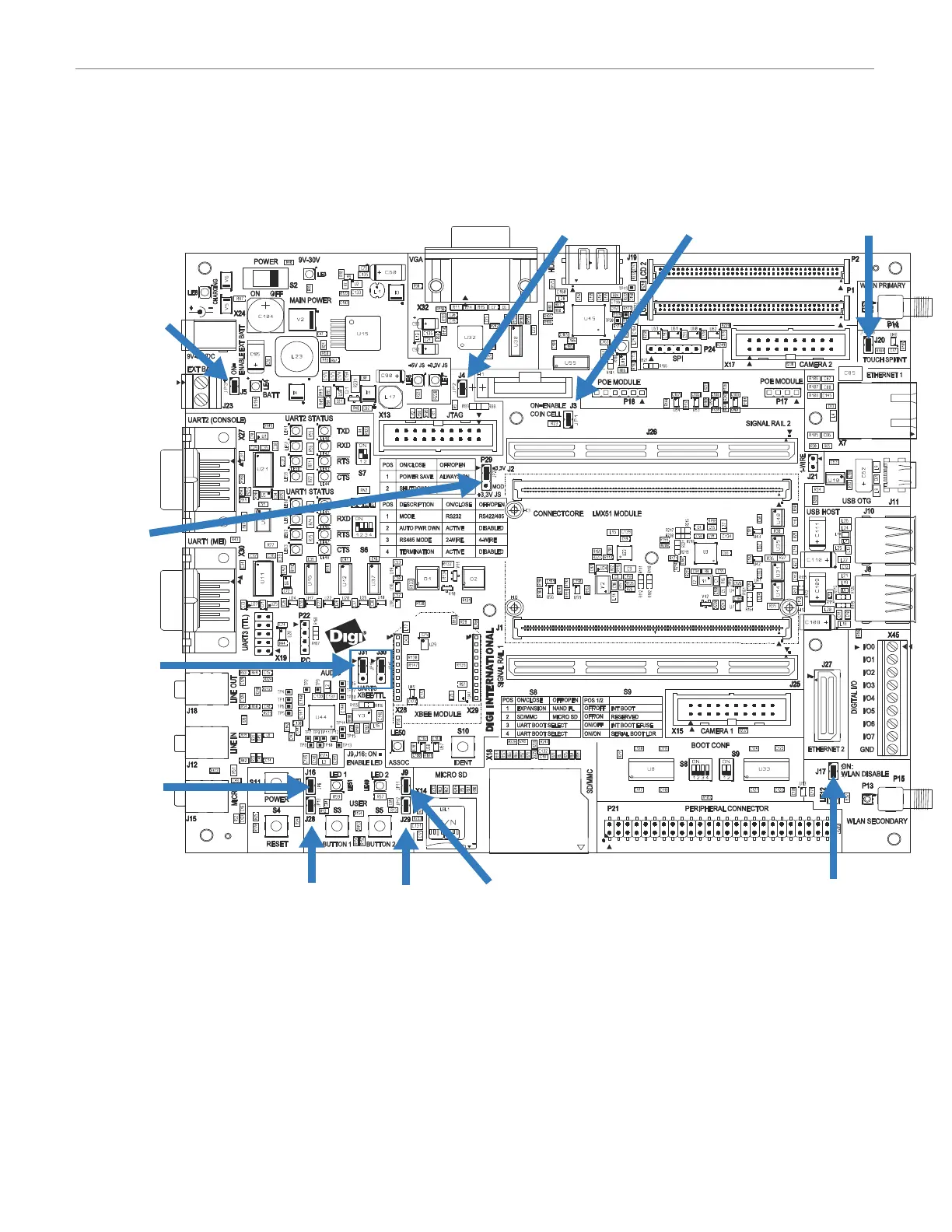

Jumpers
Battery Enable, J5
When J5 is set, the development board can be powered by an external battery connected to
J23.
Battery
Enable, J5
LED 1, J16
UART/XBee,
J30 & J31
WLAN Disable, J17
Module
Power
Source, P29
Button 1,
J28
LED 2,
J9
Button 2,
J29
Touch Sel, J20
Coin cell
Enable, J3
JTAG Mod, J4
