Digi ConnectCore Series - LEDs

ConnectCore for i.MX51
©2011DigiInternational,Inc. 65

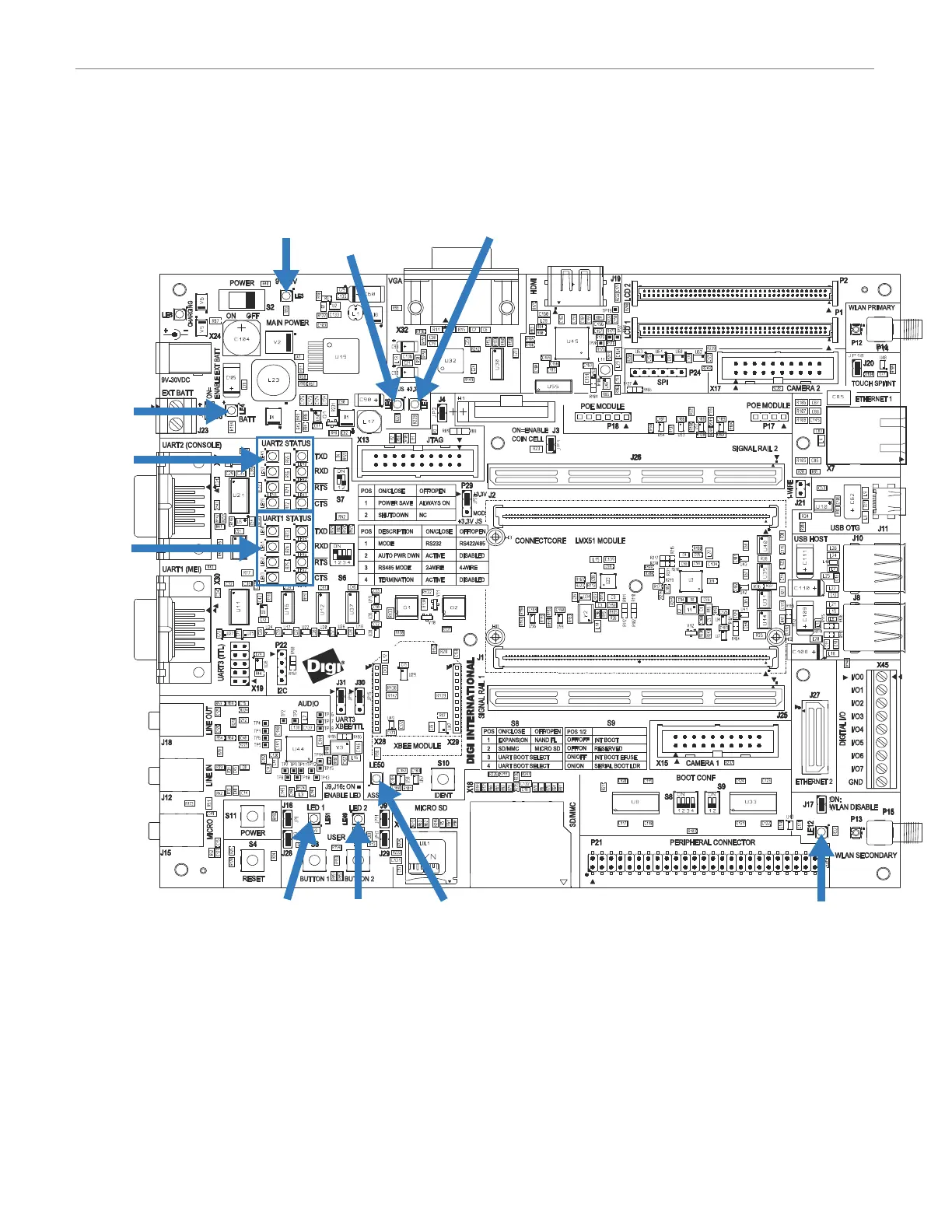

LEDs
WLAN, LE12
LED indicating WLAN operational status.
Batt,
LE4
WLAN, LE12
UART 2
Status
LEDs
USER LED1,
LE51
Assoc.,
LED50
USER LED2,
LE49
+3.3V_JS,
LE7
9V-30V,
LE3
+5V_JS,
LE6
UART 1
Status
LEDs
