ConnectCore for i.MX51
©2011DigiInternational,Inc. 92

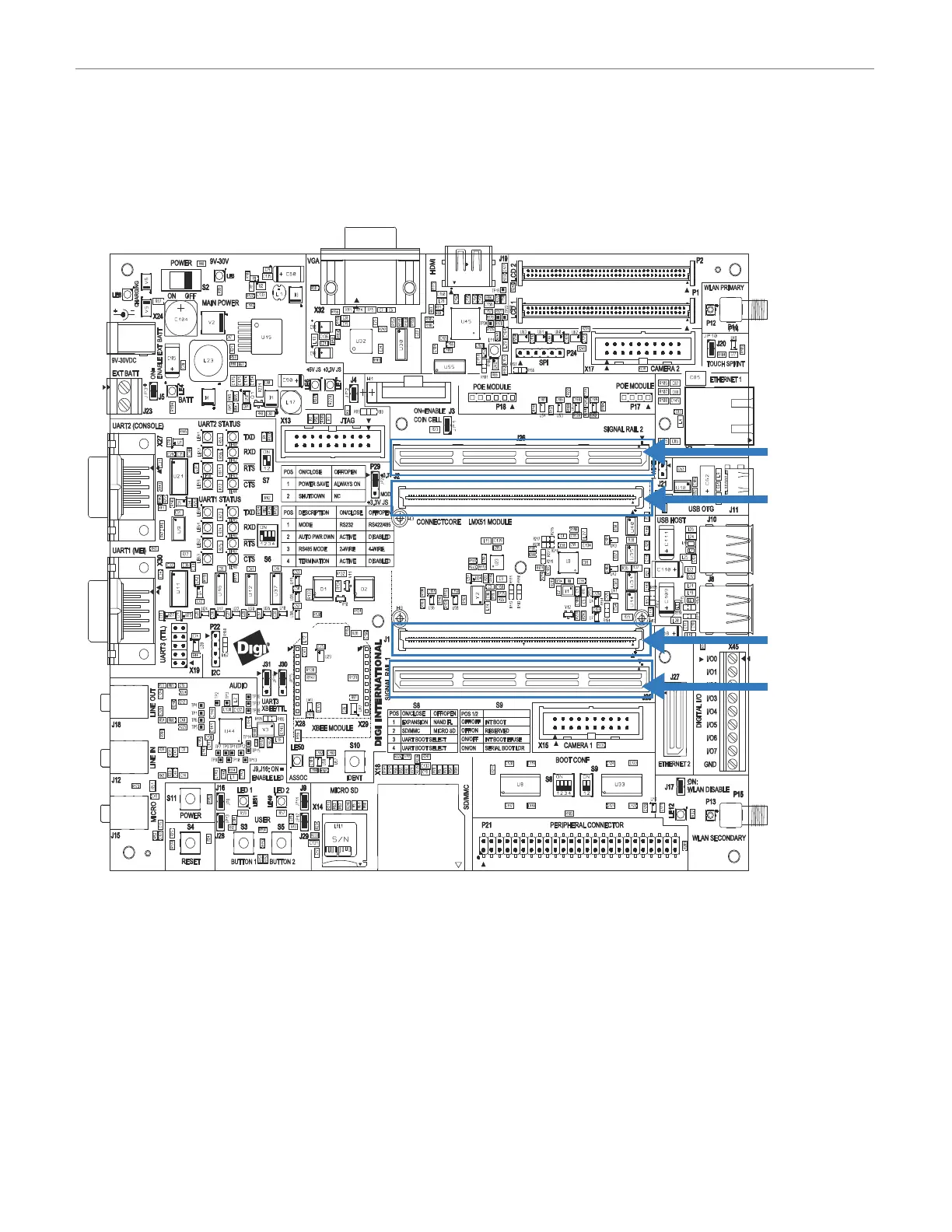

Module Connectors and Signal Rails
Module Connector,
J2
Signal Rail 2, J26
Signal Rail 1, J25
Module Connector,
J1
