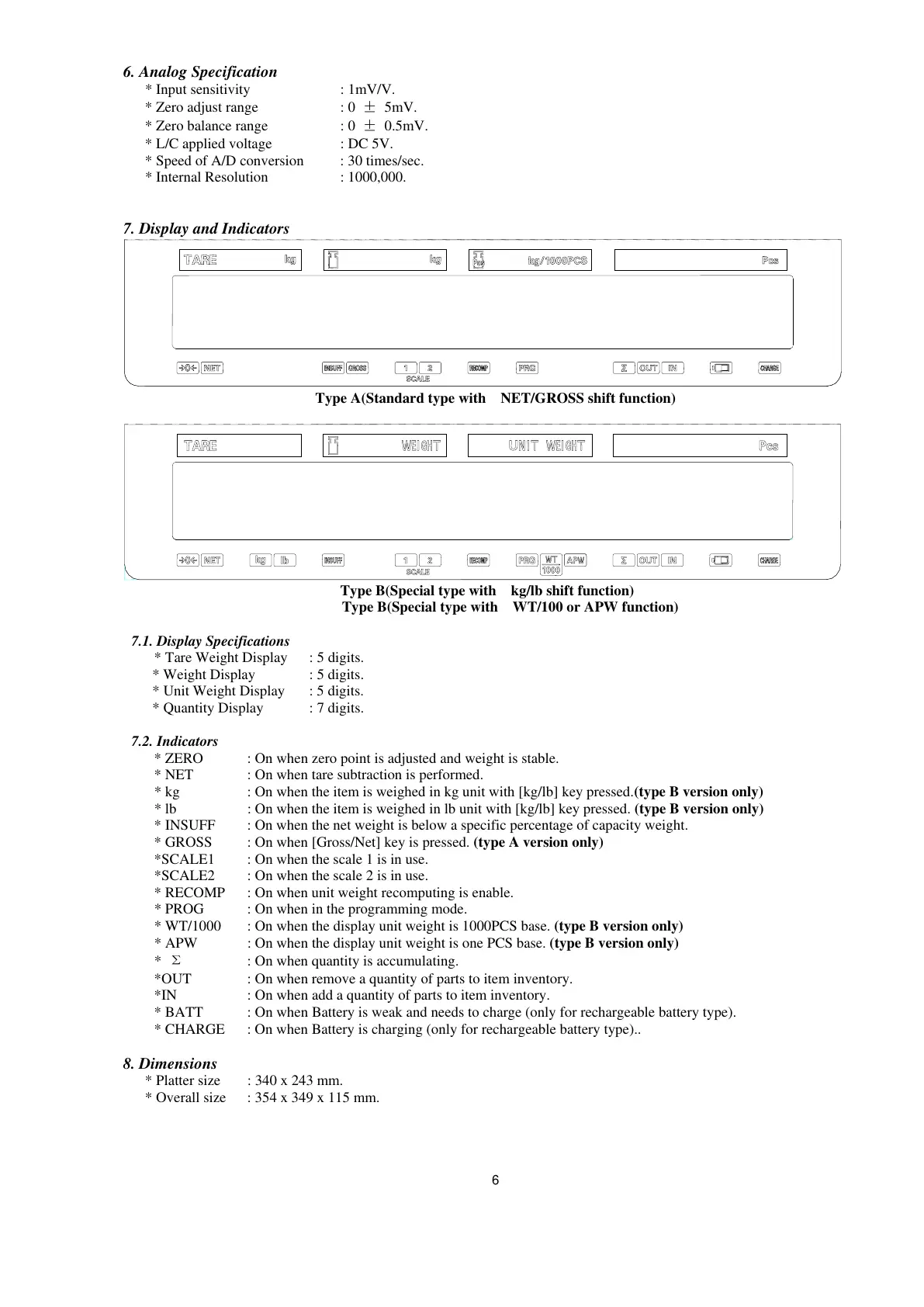

6. Analog Specification
* Input sensitivity : 1mV/V.
* Zero adjust range : 0 ± 5mV.
* Zero balance range : 0 ± 0.5mV.
* L/C applied voltage : DC 5V.
* Speed of A/D conversion : 30 times/sec.
* Internal Resolution : 1000,000.
7. Display and Indicators
Type A(Standard type with NET/GROSS shift function)
Type B(Special type with kg/lb shift function)
Type B(Special type with WT/100 or APW function)
7.1. Display Specifications
* Tare Weight Display : 5 digits.
* Weight Display : 5 digits.
* Unit Weight Display : 5 digits.
* Quantity Display : 7 digits.
7.2. Indicators
* ZERO : On when zero point is adjusted and weight is stable.
* NET : On when tare subtraction is performed.
* kg : On when the item is weighed in kg unit with [kg/lb] key pressed.(type B version only)
* lb : On when the item is weighed in lb unit with [kg/lb] key pressed. (type B version only)
* INSUFF : On when the net weight is below a specific percentage of capacity weight.
* GROSS : On when [Gross/Net] key is pressed. (type A version only)
*SCALE1 : On when the scale 1 is in use.
*SCALE2 : On when the scale 2 is in use.
* RECOMP : On when unit weight recomputing is enable.
* PROG : On when in the programming mode.
* WT/1000 : On when the display unit weight is 1000PCS base. (type B version only)
* APW : On when the display unit weight is one PCS base. (type B version only)
* Σ : On when quantity is accumulating.
*OUT : On when remove a quantity of parts to item inventory.
*IN : On when add a quantity of parts to item inventory.
* BATT : On when Battery is weak and needs to charge (only for rechargeable battery type).
* CHARGE : On when Battery is charging (only for rechargeable battery type)..
8. Dimensions
* Platter size : 340 x 243 mm.
* Overall size : 354 x 349 x 115 mm.
