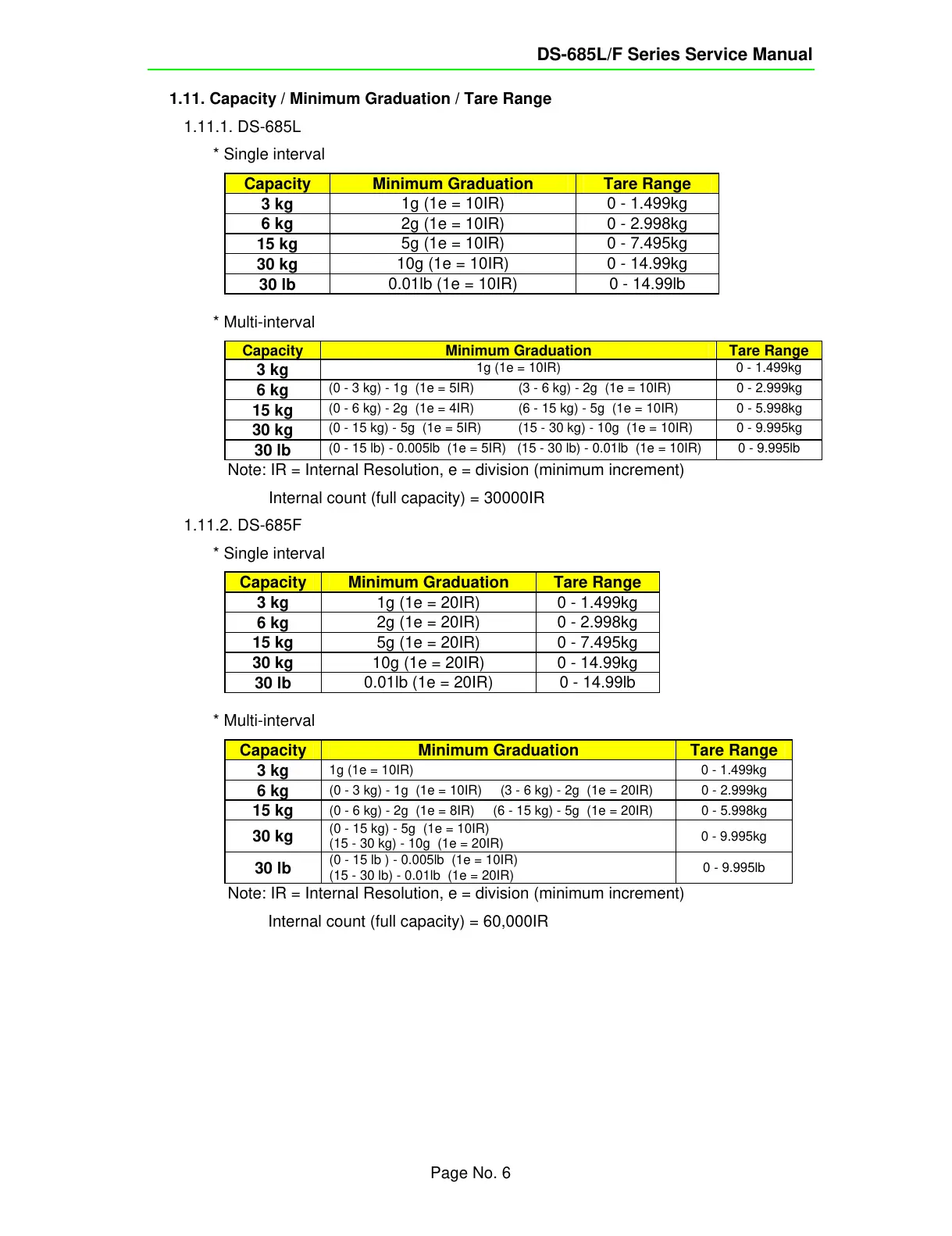

1.11. Capacity / Minimum Graduation / Tare Range
1.11.1. DS-685L
* Single interval
Capacity Minimum Graduation Tare Range
3 kg
1g (1e = 10IR) 0 - 1.499kg
6 kg
2g (1e = 10IR) 0 - 2.998kg
15 kg
5g (1e = 10IR) 0 - 7.495kg
30 kg
10g (1e = 10IR) 0 - 14.99kg
30 lb
0.01lb (1e = 10IR) 0 - 14.99lb
* Multi-interval
Capacity Minimum Graduation Tare Range
3 kg
1g (1e = 10IR) 0 - 1.499kg
6 kg
(0 - 3 kg) - 1g (1e = 5IR) (3 - 6 kg) - 2g (1e = 10IR) 0 - 2.999kg
15 kg
(0 - 6 kg) - 2g (1e = 4IR) (6 - 15 kg) - 5g (1e = 10IR) 0 - 5.998kg
30 kg
(0 - 15 kg) - 5g (1e = 5IR) (15 - 30 kg) - 10g (1e = 10IR) 0 - 9.995kg
30 lb
(0 - 15 lb) - 0.005lb (1e = 5IR) (15 - 30 lb) - 0.01lb (1e = 10IR) 0 - 9.995lb
Note: IR = Internal Resolution, e = division (minimum increment)
Internal count (full capacity) = 30000IR
1.11.2. DS-685F
* Single interval
Capacity Minimum Graduation Tare Range
3 kg
1g (1e = 20IR) 0 - 1.499kg
6 kg
2g (1e = 20IR) 0 - 2.998kg
15 kg
5g (1e = 20IR) 0 - 7.495kg
30 kg
10g (1e = 20IR) 0 - 14.99kg
30 lb
0.01lb (1e = 20IR) 0 - 14.99lb
* Multi-interval
Capacity Minimum Graduation Tare Range
3 kg
1g (1e = 10IR) 0 - 1.499kg
6 kg
(0 - 3 kg) - 1g (1e = 10IR) (3 - 6 kg) - 2g (1e = 20IR) 0 - 2.999kg
15 kg
(0 - 6 kg) - 2g (1e = 8IR) (6 - 15 kg) - 5g (1e = 20IR) 0 - 5.998kg
30 kg
(0 - 15 kg) - 5g (1e = 10IR)
(15 - 30 kg) - 10g (1e = 20IR)
0 - 9.995kg
30 lb
(0 - 15 lb ) - 0.005lb (1e = 10IR)
(15 - 30 lb) - 0.01lb (1e = 20IR)
0 - 9.995lb
Note: IR = Internal Resolution, e = division (minimum increment)
Internal count (full capacity) = 60,000IR
