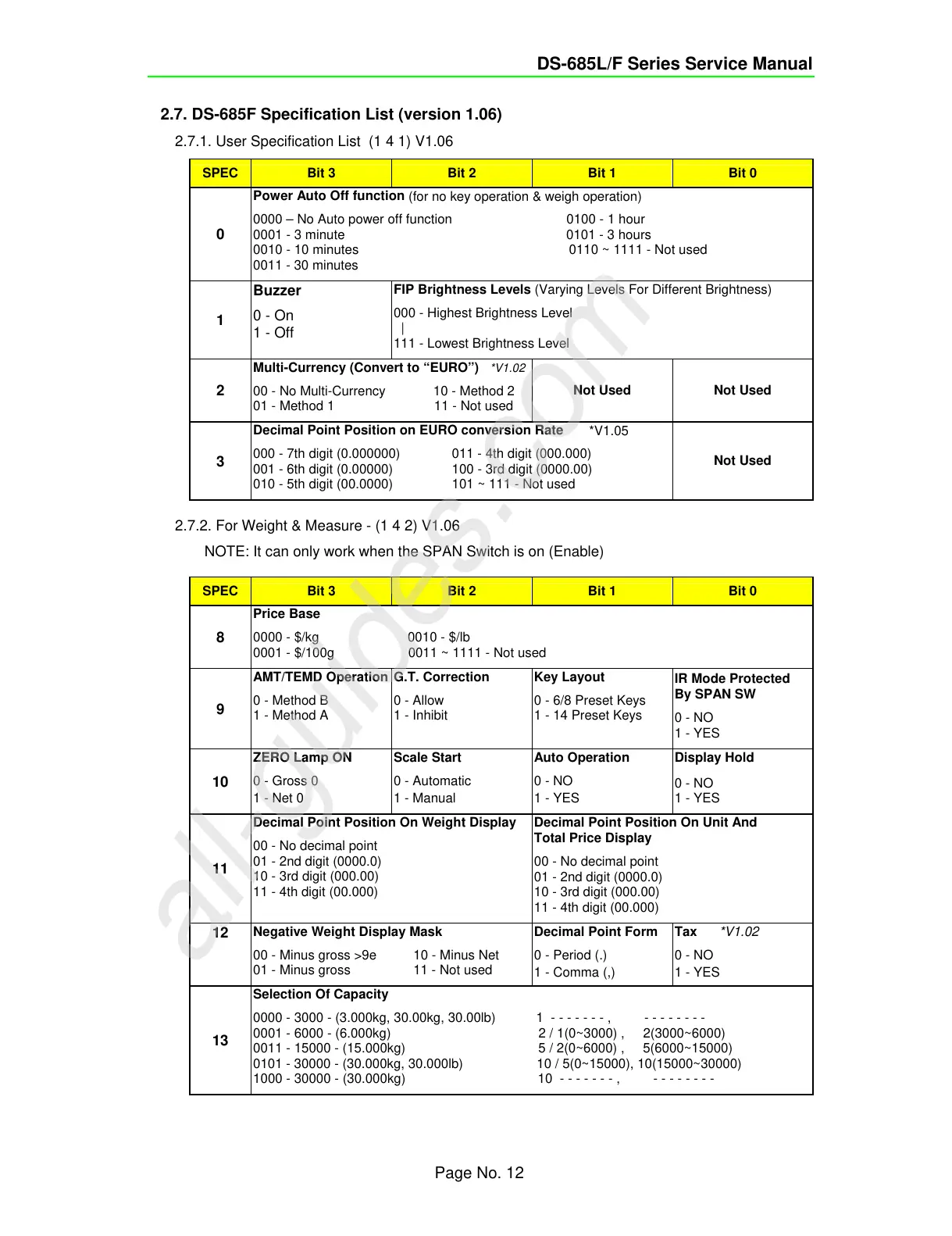

DS-685L/F Series Service Manual
2.7. DS-685F Specification List (version 1.06)
2.7.1. User Specification List (1 4 1) V1.06
SPEC Bit 3 Bit 2 Bit 1 Bit 0
0
Power Auto Off function
(for no key operation & weigh operation)
0000 – No Auto power off function 0100 - 1 hour
0001 - 3 minute 0101 - 3 hours
0010 - 10 minutes 0110 ~ 1111 - Not used
0011 - 30 minutes
1
Buzzer
0 - On
1 - Off
FIP Brightness Levels
(Varying Levels For Different Brightness)
000 - Highest Brightness Level
|
111 - Lowest Brightness Level
2
Multi-Currency (Convert to “EURO”)
*V1.02
00 - No Multi-Currency 10 - Method 2
01 - Method 1 11 - Not used
Not Used Not Used
3
Decimal Point Position on EURO conversion Rate
*V1.05
000 - 7th digit (0.000000) 011 - 4th digit (000.000)
001 - 6th digit (0.00000) 100 - 3rd digit (0000.00)
010 - 5th digit (00.0000) 101 ~ 111 - Not used
Not Used
2.7.2. For Weight & Measure - (1 4 2) V1.06
NOTE: It can only work when the SPAN Switch is on (Enable)
SPEC Bit 3 Bit 2 Bit 1 Bit 0
8
Price Base
0000 - $/kg 0010 - $/lb
0001 - $/100g 0011 ~ 1111 - Not used
9
AMT/TEMD Operation
0 - Method B
1 - Method A
G.T. Correction
0 - Allow
1 - Inhibit
Key Layout
0 - 6/8 Preset Keys
1 - 14 Preset Keys
IR Mode Protected
By SPAN SW
0 - NO
1 - YES
10
ZERO Lamp ON
0 - Gross 0
1 - Net 0
Scale Start
0 - Automatic
1 - Manual
Auto Operation
0 - NO
1 - YES
Display Hold
0 - NO
1 - YES
11
Decimal Point Position On Weight Display
00 - No decimal point
01 - 2nd digit (0000.0)
10 - 3rd digit (000.00)
11 - 4th digit (00.000)
Decimal Point Position On Unit And
Total Price Display
00 - No decimal point
01 - 2nd digit (0000.0)
10 - 3rd digit (000.00)
11 - 4th digit (00.000)
12
Negative Weight Display Mask
00 - Minus gross >9e 10 - Minus Net
01 - Minus gross 11 - Not used
Decimal Point Form
0 - Period (.)
1 - Comma (,)
Tax
*V1.02
0 - NO
1 - YES
13
Selection Of Capacity
0000 - 3000 - (3.000kg, 30.00kg, 30.00lb) 1 - - - - - - - , - - - - - - - -
0001 - 6000 - (6.000kg) 2 / 1(0~3000) , 2(3000~6000)
0011 - 15000 - (15.000kg) 5 / 2(0~6000) , 5(6000~15000)
0101 - 30000 - (30.000kg, 30.000lb) 10 / 5(0~15000), 10(15000~30000)
1000 - 30000 - (30.000kg) 10 - - - - - - - , - - - - - - - -
Page No. 12
To Next Page
