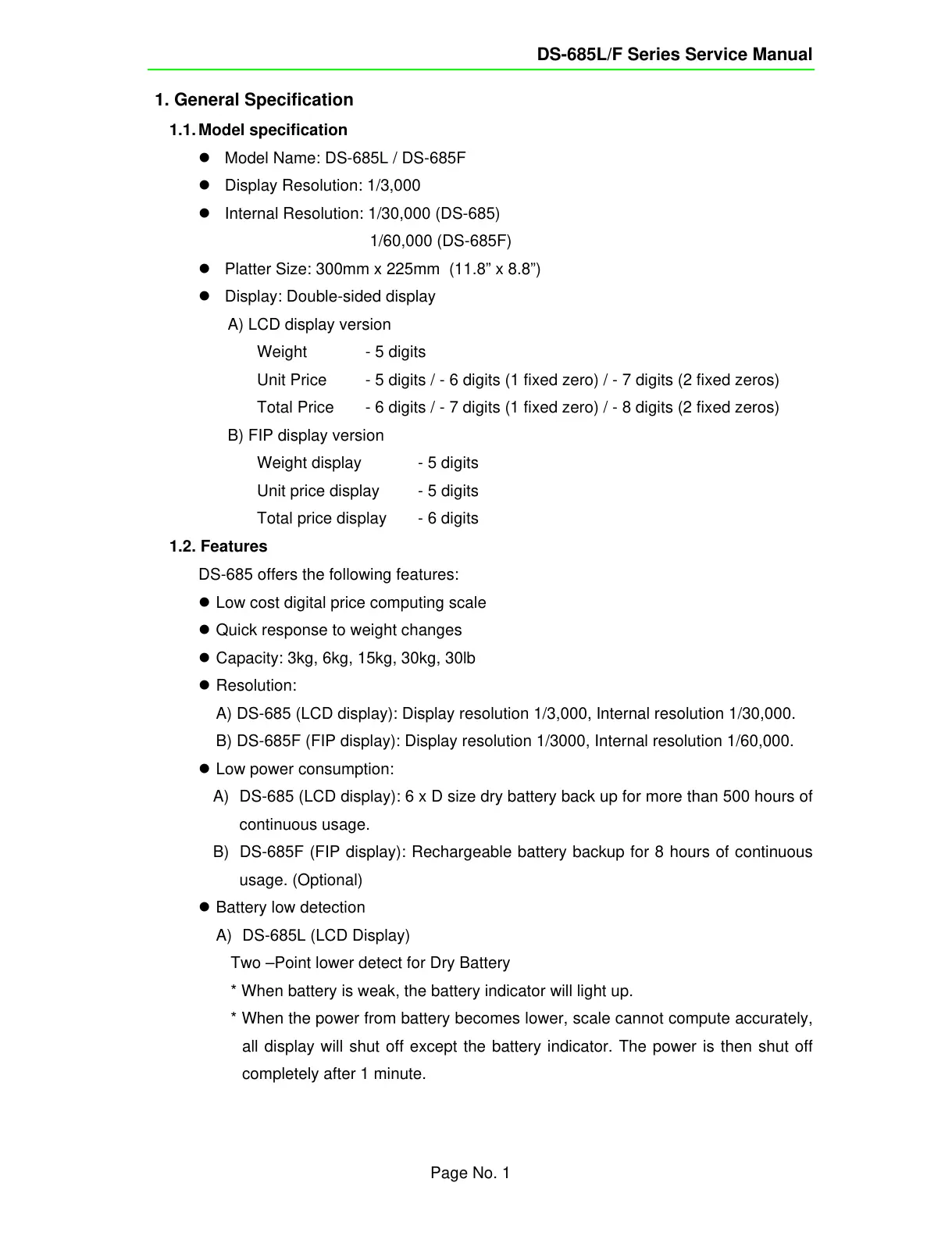

DS-685L/F Series Service Manual
Page No. 1
1. General Specification
1.1. Model specification
z Model Name: DS-685L / DS-685F
z Display Resolution: 1/3,000
z Internal Resolution: 1/30,000 (DS-685)
1/60,000 (DS-685F)
z Platter Size: 300mm x 225mm (11.8” x 8.8”)
z Display: Double-sided display
A) LCD display version
Weight - 5 digits
Unit Price - 5 digits / - 6 digits (1 fixed zero) / - 7 digits (2 fixed zeros)
Total Price - 6 digits / - 7 digits (1 fixed zero) / - 8 digits (2 fixed zeros)
B) FIP display version
Weight display - 5 digits
Unit price display - 5 digits
Total price display - 6 digits
1.2. Features
DS-685 offers the following features:
z Low cost digital price computing scale
z Quick response to weight changes
z Capacity: 3kg, 6kg, 15kg, 30kg, 30lb
z Resolution:
A) DS-685 (LCD display): Display resolution 1/3,000, Internal resolution 1/30,000.
B) DS-685F (FIP display): Display resolution 1/3000, Internal resolution 1/60,000.
z Low power consumption:
A) DS-685 (LCD display): 6 x D size dry battery back up for more than 500 hours of
continuous usage.
B) DS-685F (FIP display): Rechargeable battery backup for 8 hours of continuous
usage. (Optional)
z Battery low detection
A) DS-685L (LCD Display)
Two –Point lower detect for Dry Battery
* When battery is weak, the battery indicator will light up.
* When the power from battery becomes lower, scale cannot compute accurately,
all display will shut off except the battery indicator. The power is then shut off
completely after 1 minute.
