DS-685L/F Series Service Manual

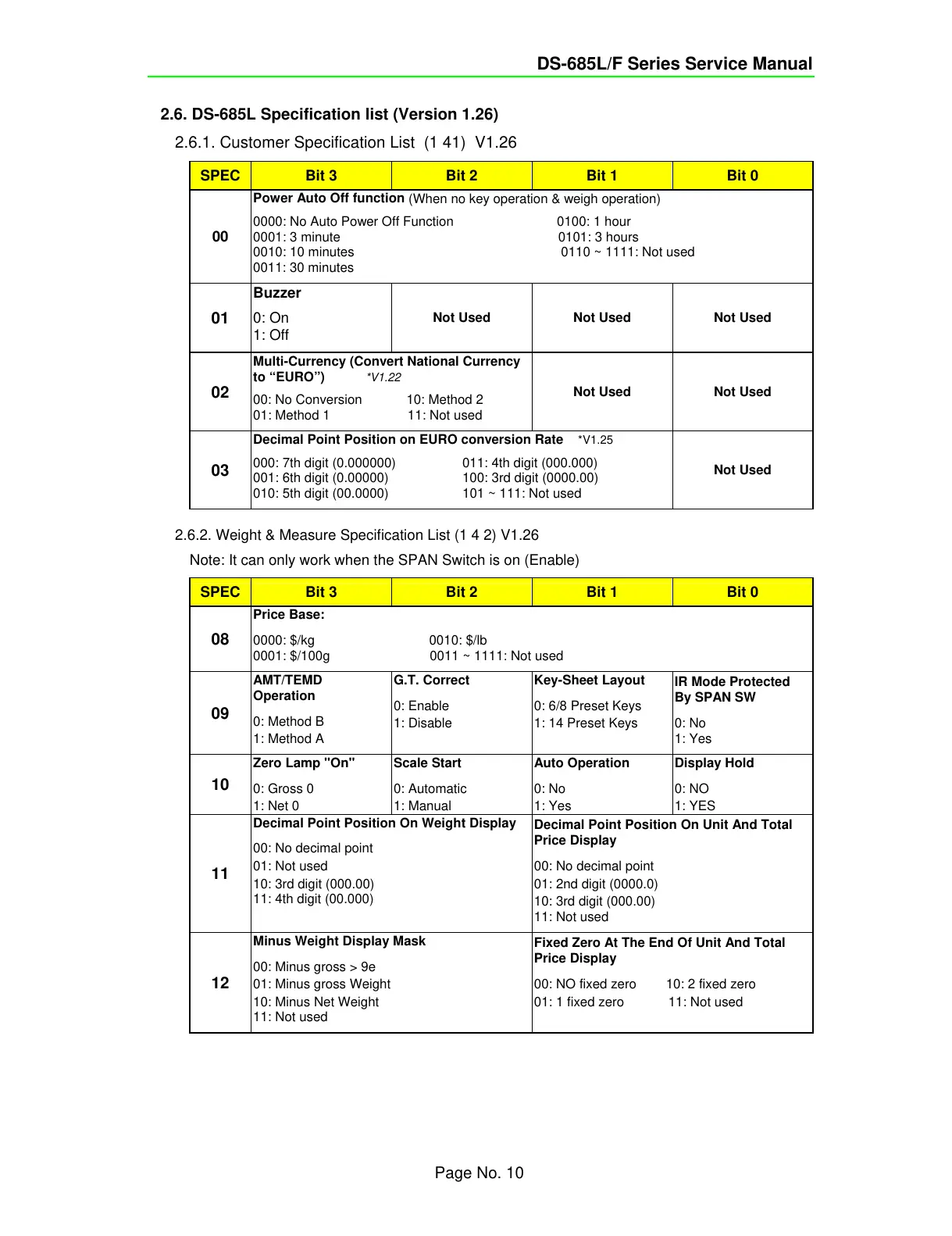

2.6. DS-685L Specification list (Version 1.26)
2.6.1. Customer Specification List (1 41) V1.26
SPEC Bit 3 Bit 2 Bit 1 Bit 0
00
Power Auto Off function
(When no key operation & weigh operation)
0000: No Auto Power Off Function 0100: 1 hour
0001: 3 minute 0101: 3 hours
0010: 10 minutes 0110 ~ 1111: Not used
0011: 30 minutes
01
Buzzer
0: On
1: Off
Not Used Not Used Not Used
02
Multi-Currency (Convert National Currency
to “EURO”)
*V1.22
00: No Conversion 10: Method 2
01: Method 1 11: Not used
Not Used Not Used
03
Decimal Point Position on EURO conversion Rate
*V1.25
000: 7th digit (0.000000) 011: 4th digit (000.000)
001: 6th digit (0.00000) 100: 3rd digit (0000.00)
010: 5th digit (00.0000) 101 ~ 111: Not used
Not Used
2.6.2. Weight & Measure Specification List (1 4 2) V1.26
Note: It can only work when the SPAN Switch is on (Enable)
SPEC Bit 3 Bit 2 Bit 1 Bit 0
08
Price Base:
0000: $/kg 0010: $/lb
0001: $/100g 0011 ~ 1111: Not used
09
AMT/TEMD
Operation
0: Method B
1: Method A
G.T. Correct
0: Enable
1: Disable
Key-Sheet Layout
0: 6/8 Preset Keys
1: 14 Preset Keys
IR Mode Protected
By SPAN SW
0: No
1: Yes
10
Zero Lamp "On"
0: Gross 0
1: Net 0
Scale Start
0: Automatic
1: Manual
Auto Operation
0: No
1: Yes
Display Hold
0: NO
1: YES
11
Decimal Point Position On Weight Display
00: No decimal point
01: Not used
10: 3rd digit (000.00)
11: 4th digit (00.000)
Decimal Point Position On Unit And Total
Price Display
00: No decimal point
01: 2nd digit (0000.0)
10: 3rd digit (000.00)
11: Not used
12
Minus Weight Display Mask
00: Minus gross > 9e
01: Minus gross Weight
10: Minus Net Weight
11: Not used
Fixed Zero At The End Of Unit And Total
Price Display
00: NO fixed zero 10: 2 fixed zero
01: 1 fixed zero 11: Not used
