Page 19
4.5 CUSTOMISABLE DATA FIELDS
It is possible to customise the pre-set screens.

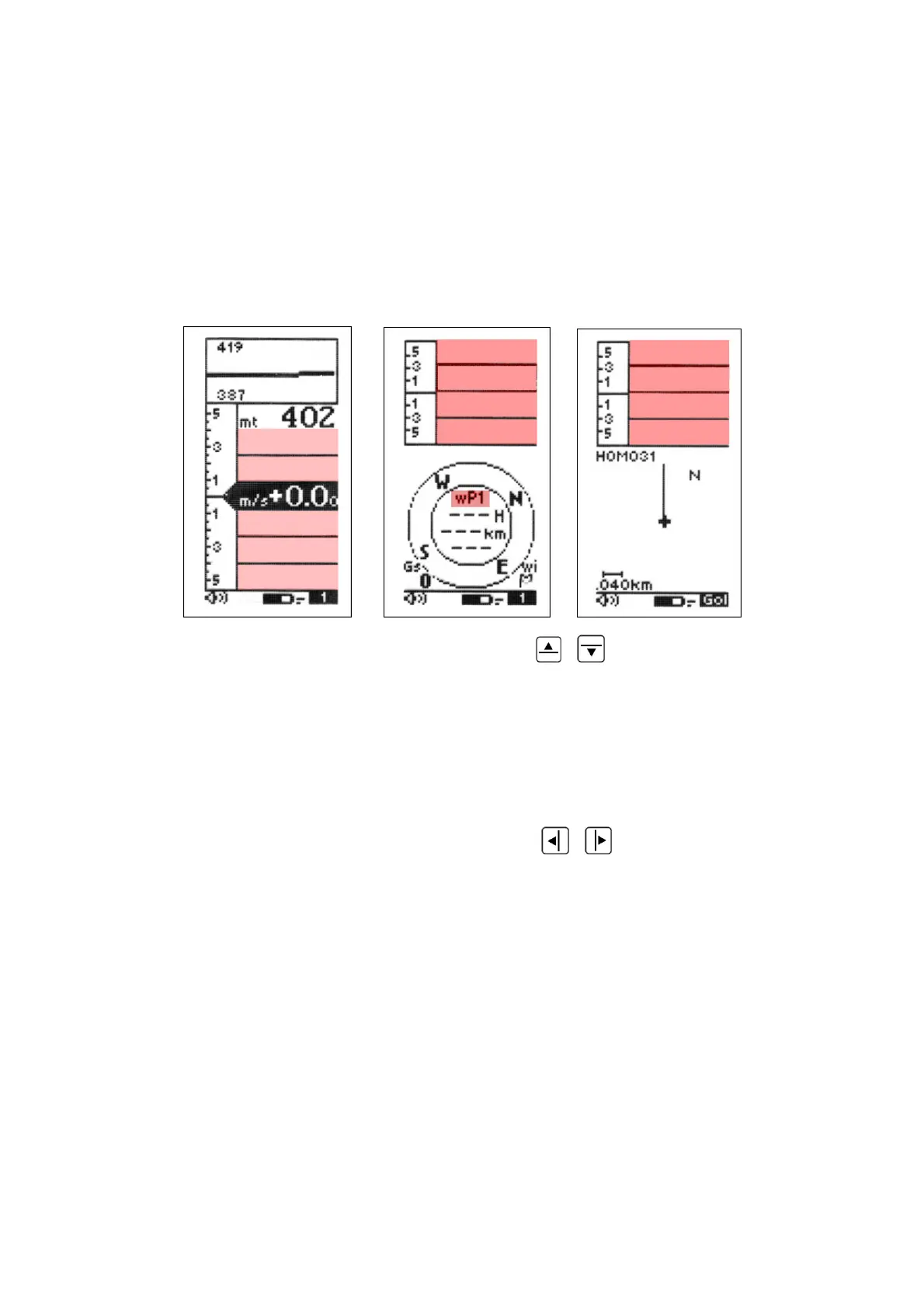

On the Thermal Display Screen there are 5 data fields (highlighted here in red) that can
be customized to change the type of data to be displayed.
On the Glide Plot and Glide Compass Display Screens all 4 main data fields (highlighted
here in red) that can be customized to change the type ofdata to be displayed.
On the Glide Compass Display screen the inner triple instrument reference can also be
customized to display WP1, WP2, GOAL or Thermal.
To change the data shown in this field, press the
,
keys to highlight the field you
wish to adjust.
As you scroll up or down, the fields that you can customize are highlighted (inverted)
and for approximately 3 seconds a description of the data currently being displayed is
shown.
To change the data you wish to display, press the
,
keys. Each time a new
parameter is selected, the field shows the a description of the data currently selected.
4.6 DISPLAYING ADDITIONAL INFORMATION RELATING TO WAYPOINT AND ROUTES
For these functions to be active, Waypoints must have been entered in to the Digifly
instrument, a Route activated, the GPS switched “ON”, a GPS “FIX” made,”.
The additional data relating to Waypoints and routes can be shown in any of the
customizable data fields (shown here in red) on each of the main display screens
(Thermal Display screen, Glide Compass Display screen and Glide Plotter Display
screen)
