DG-BG1000 User Manual
6
1.3 LEDs and Interfaces

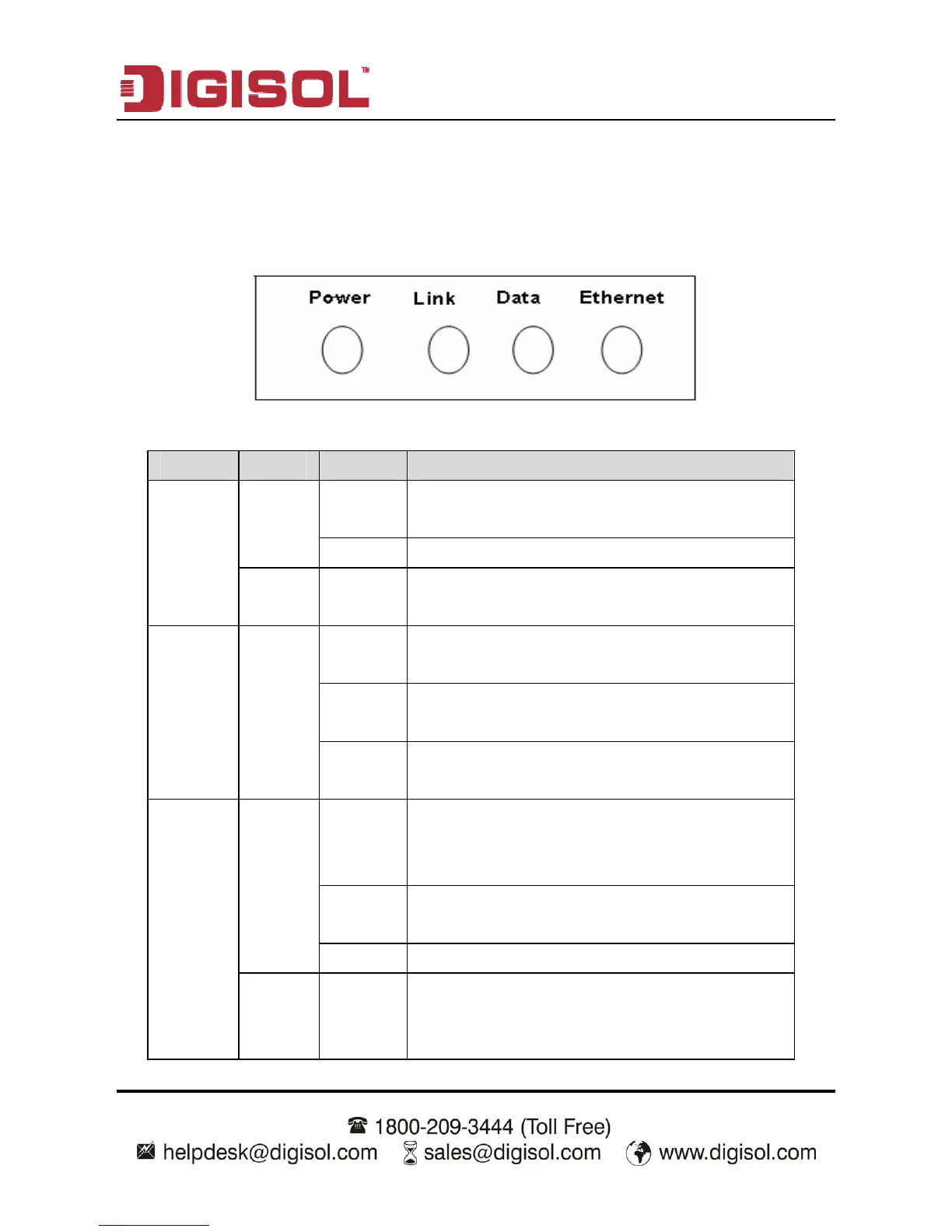

Front Panel
The following table describes the LEDs of the device:
LEDs Color Status Description
On The device is powered on or the initiation of the
device is successful.
Green
Off The device is powered off.
Power
Red On The device is self-testing, the self-test has failed
or the software is upgrading.
On The device has established a connection with the
physical layer of the office end.
Slow
Blinks
No signal is being detected.
Link Green
Fast
Blinks
The device is handshaking with the physical layer
of the office end.
On The device has a successful WAN connection
(PPP dial-up is successful) in the routing mode
and no data is being transmitted on the Internet.
Blinks Data is being transmitted on the Internet in the
routing mode.
Green
Off The device is in the bridged mode.
Data
Red On In the routing mode, after the successful
synchronization, the WAN connection has failed
(PPP dial-up is failed).
