DG-BG1000 User Manual
7
LEDs Color Status Description
On The LAN connection is normal and activated.
Blinks Data is being transmitted on the LAN or data is
being transmitted on the Internet in the bridged
mode.
Ethernet Green
Off The LAN connection of the device has failed.

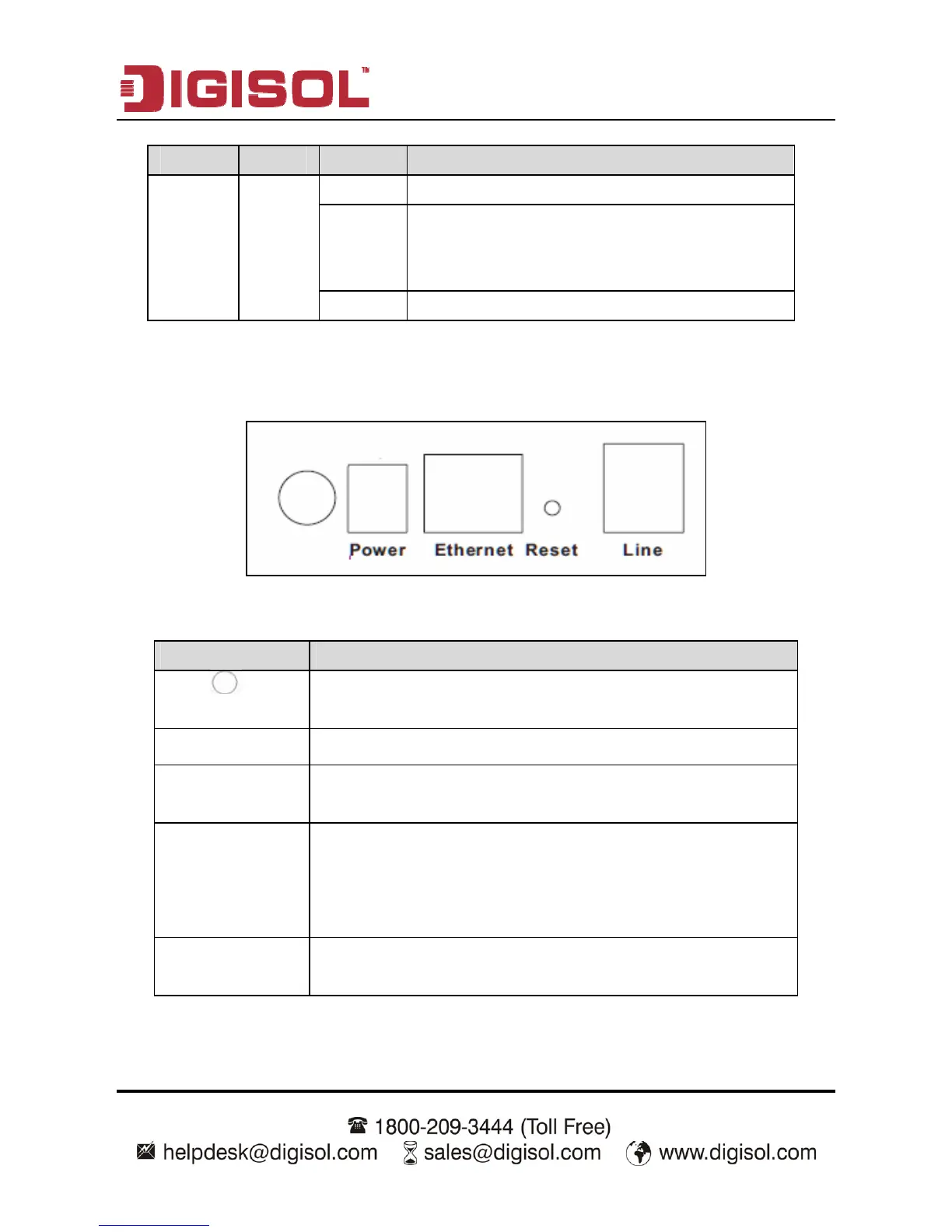

Rear Panel
The following table describes the interfaces of the device:
Items Description
(Power switch)
Power on or power off the device.
Power
Power interface, for connecting to the power adapter.
Ethernet
RJ-45 interface, for connecting to the Ethernet interface of PC or
other Ethernet devices through the Ethernet cable.
Reset
Reset to the factory defaults. To reset to the factory defaults,
keep the device powered on and push a paper clip in to the hole
for over 5 seconds. Then release it, the configuration is reset to
the factory defaults.
Line
RJ-11 interface, for connecting to the ADSL interface or a splitter
through the telephone cable.
