SmartSource Elite Series - Installation & Operations Guide
May 2019 8227 4907-005 Page 12 of 37
Connecting cables and powering on the unit
1. Locate the power supply ‘brick’ and AC power cord and plug them together.
a. Use only the power supply ‘brick’ that was packed with your SmartSource Elite. Do
not exchange power supply ‘bricks’ between units, or use non-Digital Check-
supplied power supplies, even if they look similar.
2. Plug the power cord from the power supply ‘brick’ into the SmartSource Elite, then plug the AC power
cord into an AC outlet.

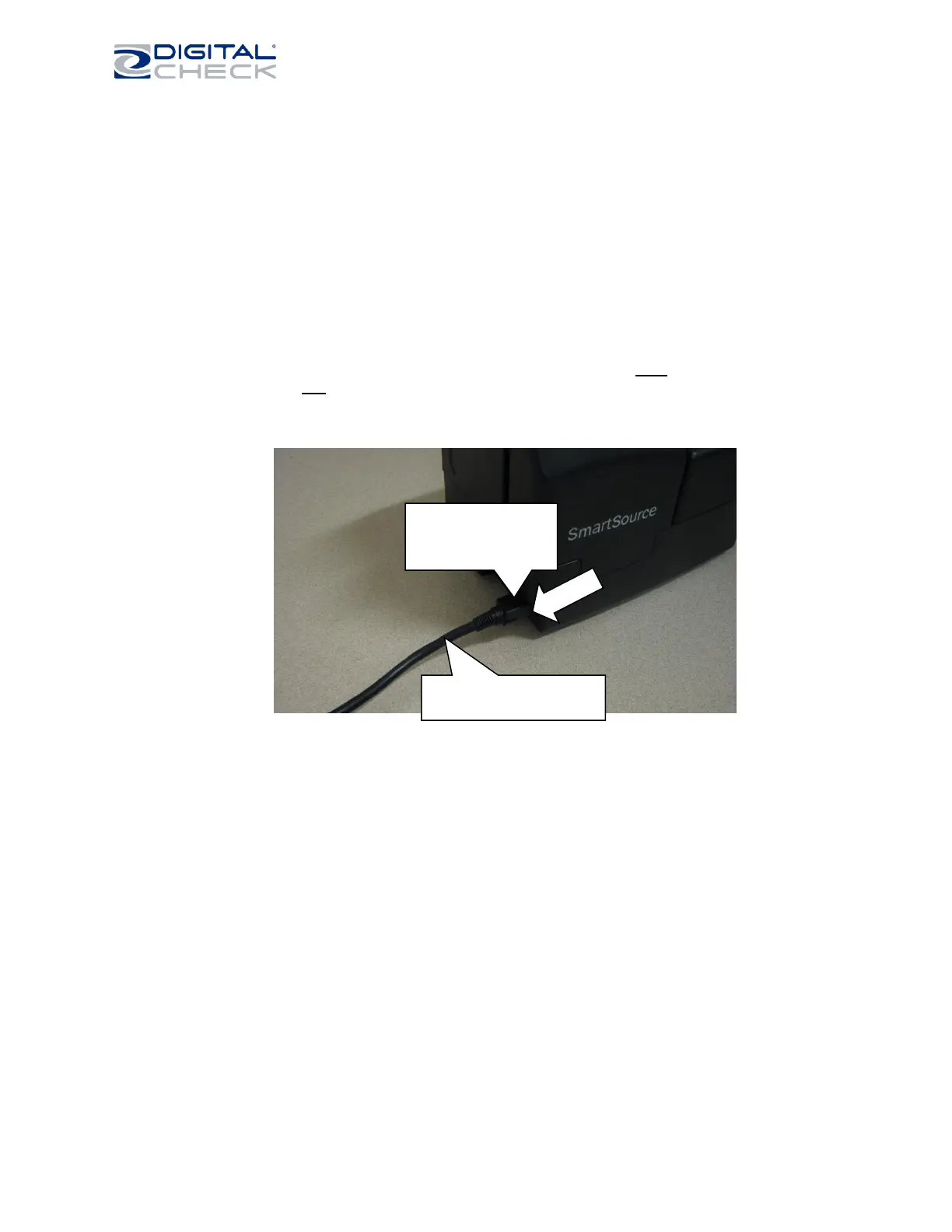

a. Note – the power supply cord to the (starting with serial # 900xxxxxx) SmartSource
Elite scanners have a special locking connector to prevent accidental
disconnection. To disconnect this connector, pull back only on the connector
housing – not on the power cord. If you pull on the cord, the connector will not
disconnect, and the cord or the unit may be damaged. The SmartSource Elite
models and later (starting with serial # 918xxxxxx) have a straight pull connector.
3. Load device driver and other application software. Consult your IT service provider or application
provider to be sure that all required software is loaded before connecting and powering on your
SmartSource Elite unit.
4. Locate the USB cable (or Ethernet cable) and connect it to the SmartSource and to a suitable USB
outlet on the host PC (or Ethernet network interface).
a. Use only the USB cable that was supplied with the unit, or a similar USB cable, rated for
USB 2.0 or better.
b. Do not use USB cord extenders, hubs or plug adapters, as these may degrade USB
performance
c. Use only Category 5e (Cat5e) or better Ethernet cables for Expert Elite
.
