Digital Dream NCH02 User Manual

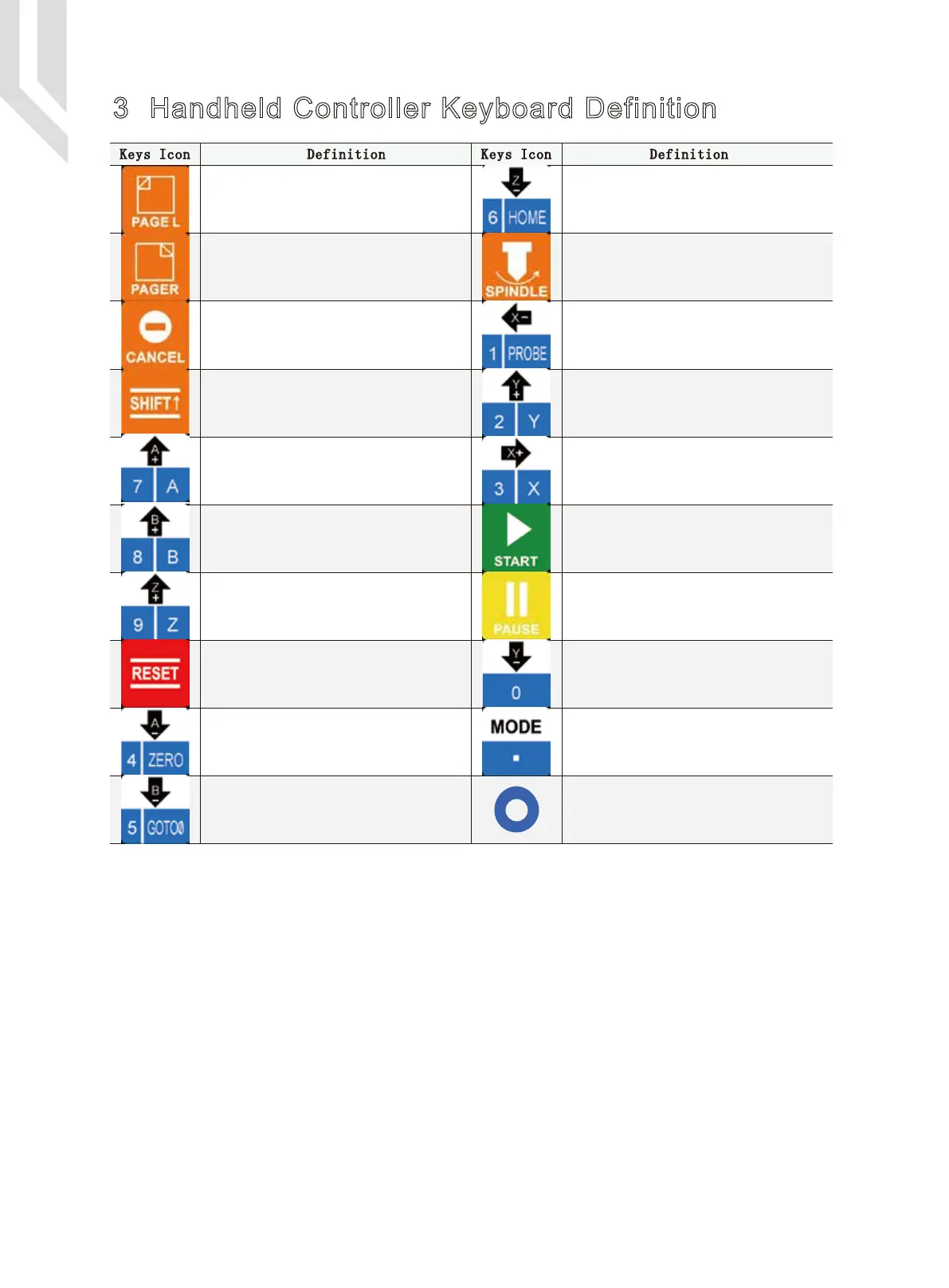

3 Handheld Controller Keyboard Definition
NCH02 User’s ManualDigital Dream Motion Controller Page -13
1: Mode of Step/Continuous/MPG Selection
2: Data . Input
Spindle manual Start/Close
Page Left
Page Right
RESET
1: Cancel;
2: Exit
Shift,This key will activate 2nd Mode
Keys Icon Keys IconDefinition Definition
1: A axis rotates in forward direction;
2: A axis select;
3: Data 7 Input
1: B axis rotates in forward direction;
2: B axis select;
3: Data 8 Input
1: Z axis Up;
2: Z axis select;
3: Data 9 Input
1: Z axis Down;
2: Home;
3: Data 6 Input
1: A axis rotates in reserve direction;
2: 0-clearing;
3: Data 4 Input
1: B axis rotates in reserve direction;
2: Go To Zero funciton;
3: Data 5 Input
1: X axis moves left；
2: Probe；
3: Data 1 Input.
1: Y axis moves forward；
2: Y Axis Select
3: Data 2 Input
1: X axis moves right；
2: X Axis Select
3: Data 3 Input
1: Increase the number clockwise；
2: Decrease the number Counter-clockwise
3: Push the button to Confirm
1: Y axis move backward；
2: Data 0 Input
Start operation
Pause operation
