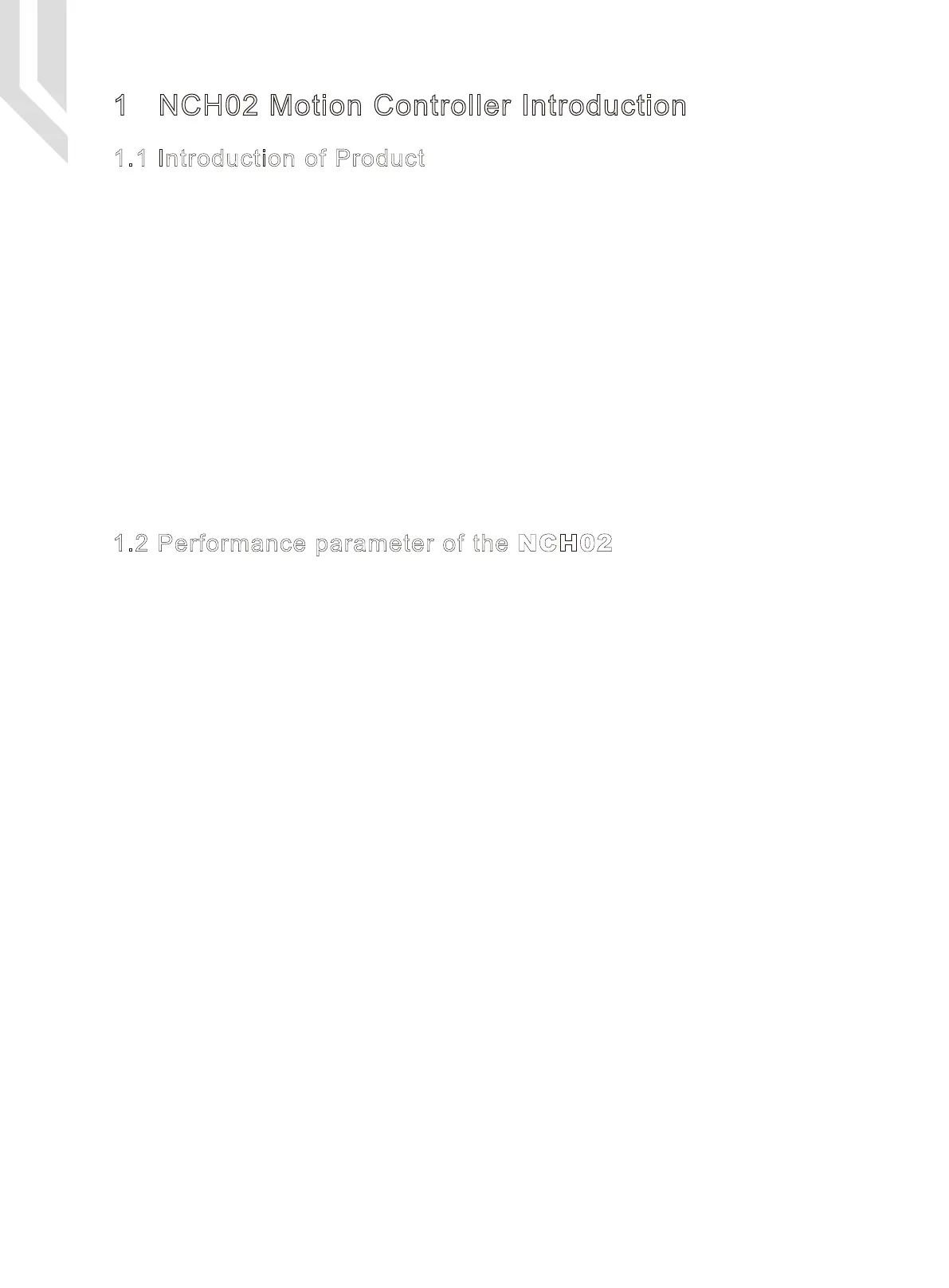

1 NCH02 Motion Controller Introduction
1) Max. 5 Axis,3-5 Axis Optional;Max. 125Khz per axis;
2) 2-4 Axis linear interpolation,any 2 axis circular interpolation;
3) 5 opto isolated digital outputs,8 opto isolated digital inputs;
4) Analog spindle control 0-10V spindle control (can be modified as PWM output);
5) 24VDC power input, minimum 1A;
6) 3.5 inches TFT screen, resolution ratio: 480x320;19 user keys;
9) USB flash disk support for G code file input;
10) The control system can preview the process path before machining,and it makes the system more
steady,working smoothy and precise;
11) Support the Standa�rd MPG or the NVMPG which Digital dream made;
12) Acceleration/Deceleration Mode: S curve;
13) Support un-limited size file for machining;
14) Manual/Automatic machining function;
15) Support the operation to Start a G code from a specific line;
16) Support for “Power Cut” recovery. Data is automatically saved;
17) Support time-lock function;
18) Automatocally Probe function;
19) Supporting Homing,Go to Zero,workpiece origin position saving;
20) Supporting downloading and uploading all the parameter setting of the controller.
Digital Dream has a 10 years history in the numerical control industry, specializing in the research, devel-
opment and production of various CNC (Computer Numerical Control) systems. DigitalDream aims to combine
high quality and high reliability with affordability. We produce 1 axis to 6 axes CNC system.
Thank you for choosing digital dream’s motion controllers.With a lots of examples and charts,this manual
will describe the features,functions and every operations of our controllers.Pls read this manual carefully before
any assembling and using.Incorrect handling can result in injury and damage to persons and engraving
machine.Pls keep the manual carefully for convenient to read it at any time in need.
NCH02 is very professional 3-5 Axis CNC Motion Controller which is based on embedded system.NCH02
operates as a standalone system with handheld Pendant without the need of a computer,and with a pendant,it
makes users very convenient to opreate the machines.Our controller adopts Embedded Operating System,by
which the controller will never get virus-infected.And the controller adopts look-ahead algorithm by which the
the controller can read more ahead 30-lines G-code than the operating.All the features guarantees high preci-
sion,accuracy and reliability.And the size is very small,oepreation is very easy,very suitable for all size of
Engraving machines,Milling machines and cutting machines and so on.
1.1 Introduction of Product
1.2 Performance parameter of the NCH02
Page -1 NCH02 User’s ManualDigital Dream Motion Controller
