4.3 The CONFIG(Configuration) Page
As Picture 4-4 showed as above,the Motor Parameter configuration Page has a lot of column.There is a lot
of the paramenter need to set up,also by rotary&push button.We marked the column from 1-17 and will decribe
them one by one as following table.

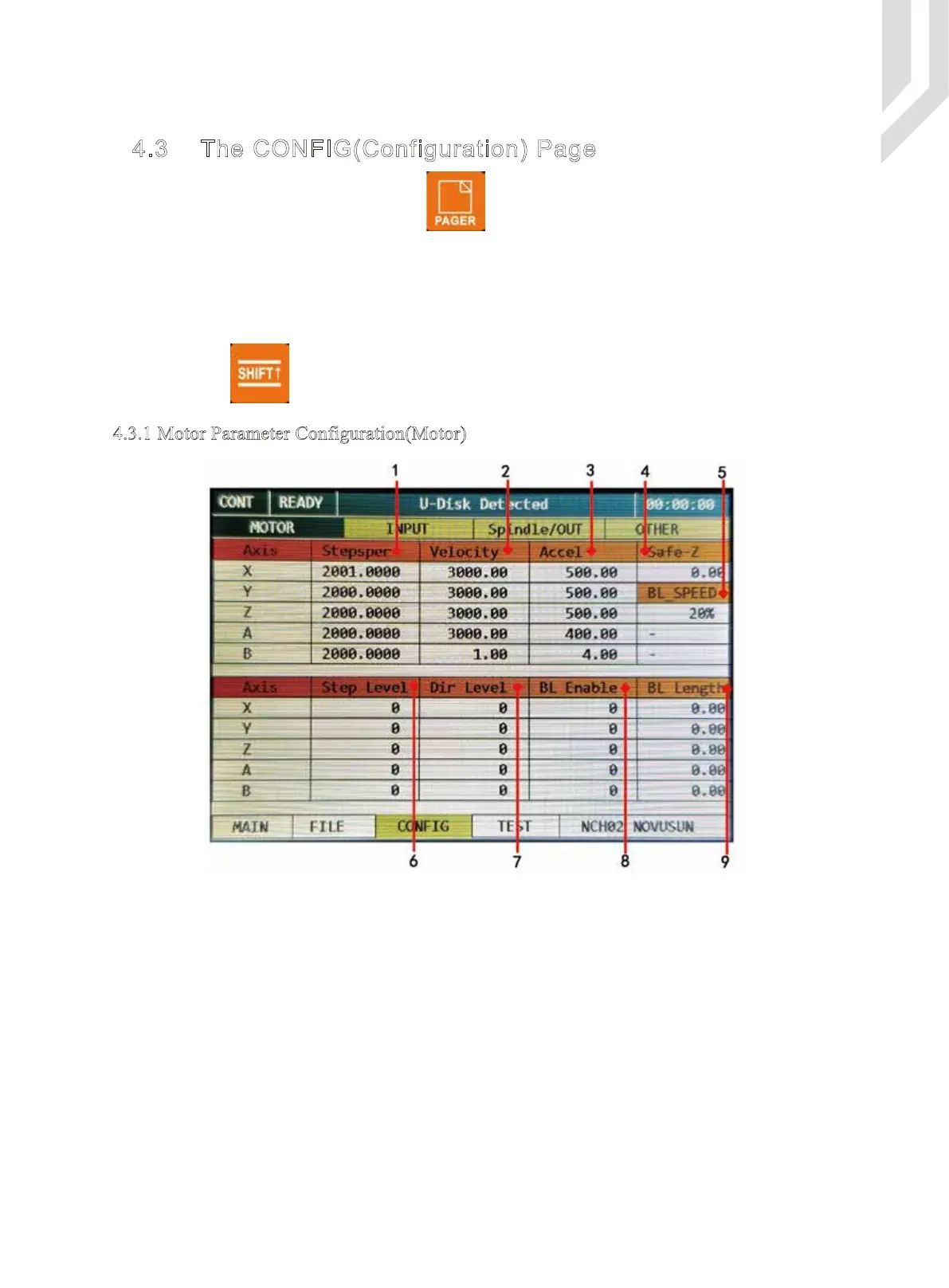

Picture 4-4 Motor Parameter Configuration Page(MOTOR)
When in the File Management Page,press to enter into the CONFIG Page.And the CONFIG
Page has 4 Sub-Page:
Motor Configuration
Input configuration
Spindle/Output
Other
By Pressing we can shift between the 4 sub-pages.
4.3.1 Motor Parameter Configuration(Motor)
