4.2 The File Management Page
18: The G-code Line that the Controller is Running
In the column,it shows the current G-code Line No. and G-code content.To Shift the G-code line,the users
can can edit Line Value here.
19: The coordinate values of each axis under the current coordinate
The coordinate values of each axis under the current coordinate are displayed here.
20: The coordinate values of each axis under the mechanical coordinate
The coordinate values of each axis under the mechanical coordinate are displayed here.
When the U-disk is inserted in to the controller USB port,The File management page can be entered by
pressing under the main page. The file management page is shown in Picture 4-3 as below.
The displays will show all folders and files in the Root directory. The Name of folders and files, the size
of files and the time and date of manipulation. The blue strip indicates the current valid target location.
By turnning the rotary&push button to select the G-code file and press it to confirm the selection.Then
the controller system will load the selected file.After the loading is finished,the controller software will shift
to Main Page Automatically.

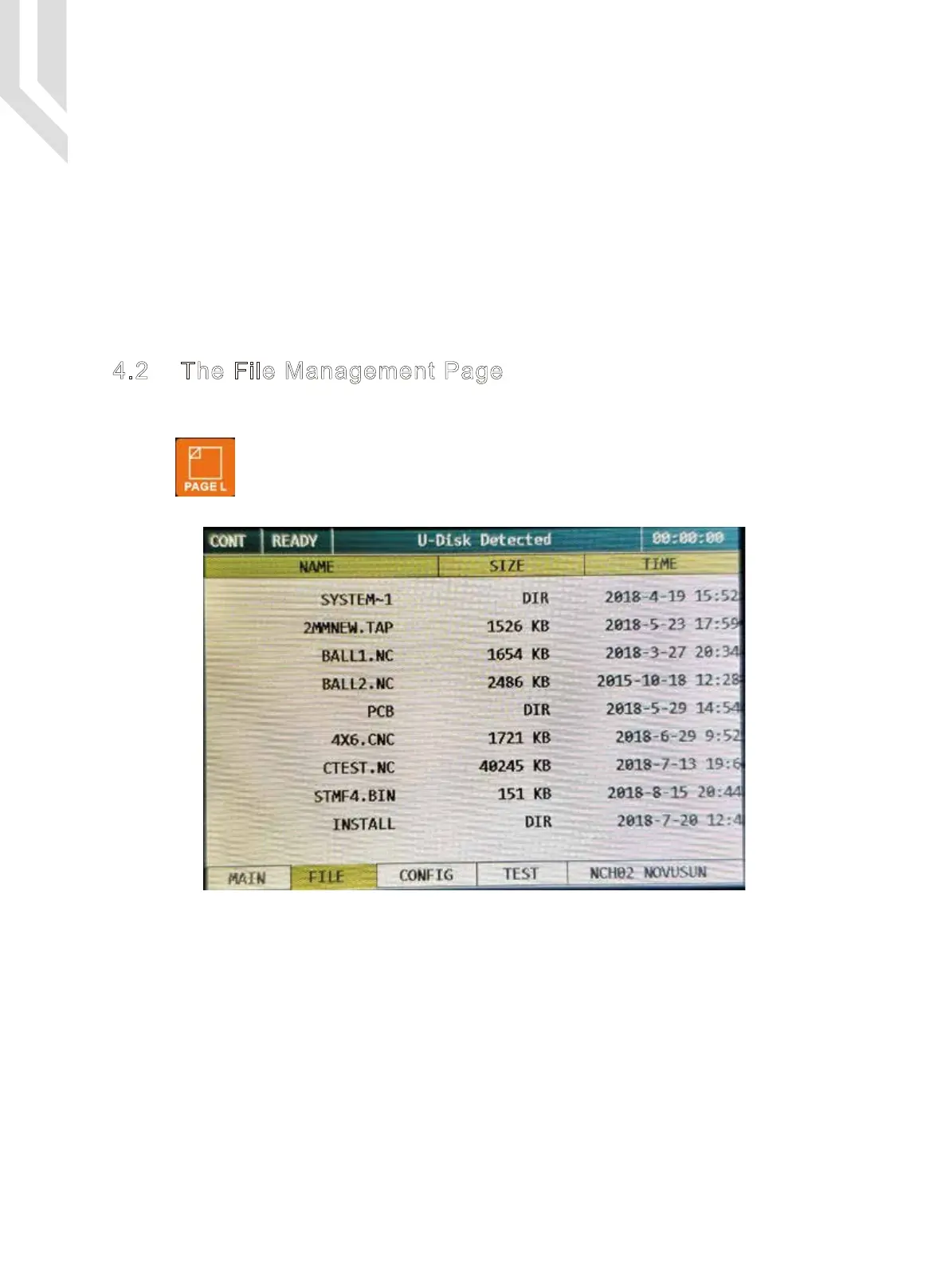

Picture 4-3 File management page
